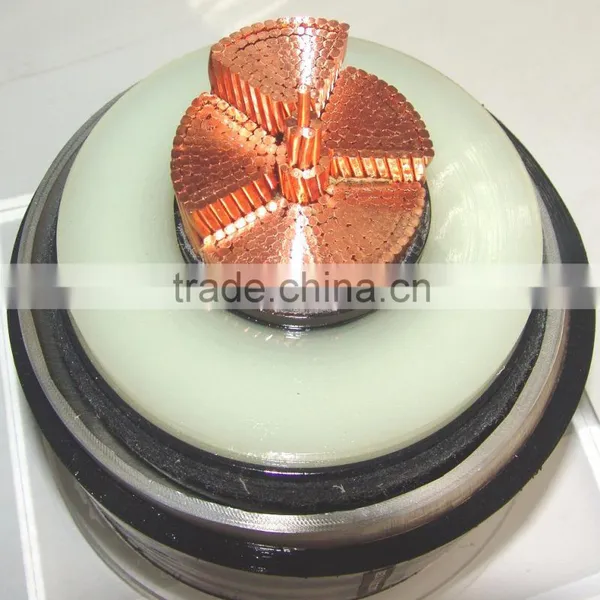

2016 8.7/10kV medium voltage 3-core copper conductor xlpe insulated steel wire armored PVC sheathed electrical power cable
1. 8.7/10kV Power Cable
2.IEC,BS,AS OR DIN STANDARD
3.Manufacturer Specializes In Power Cables
4.ISO 9001-2008
8.7/10kV 3-core copper wire XLPE insulated metallic screen steel wire armored PVC sheathed electrical power cable
1.Manufactured according to the shandard of IEC,BS,DIN or ICEA upon requst.
2.Suitable for use in power transmission and distribution lines with rated power frequency voltage 8.7/ 10 kV~ 26/35kV.
3.The ambient temperature for installation: ≥0°C
4.Maximun conductor temperature in normal operation:≤90°C
5.Max operating temperature of conductor when cable short-circuited(5s maximun duration): 250°C
6.Permissible bending radius:
Single cable: [20(D+d)±5%]mm
Multi cable: [15(D+d)±5%]mm
7. Suitable for under ground,can bear mechanical stress,but can not endure large pulling force.
8. Structure, weighgt and current carrying capacity
| Specification | Outer diameter of conductor | Thickness of insulation | Thickness of inner layer | Diameter of steel wire | thickness of sheath | Approx. Outer diameter of cable | Approx. weight of cable | Current carrying capacity of cable | |
| In air | In soil | ||||||||
| mm2 | mm | mm | mm | mm | mm | mm | kg/km | A | A |
| 3×25 | 6 | 4.5 | 1.4 | 2.5 | 2.6 | 54 | 4492 | 134 | 154 |
| 3×35 | 7 | 4.5 | 1.4 | 2.5 | 2.7 | 56 | 4830 | 161 | 184 |
| 3×50 | 8.3 | 4.5 | 1.5 | 2.5 | 2.9 | 59 | 5279 | 192 | 217 |
| 3×70 | 10 | 4.5 | 1.6 | 2.5 | 3 | 63 | 6092 | 239 | 266 |
| 3×95 | 11.6 | 4.5 | 1.6 | 2.5 | 3.1 | 67 | 6599 | 289 | 318 |
| 3×120 | 13 | 4.5 | 1.7 | 2.5 | 3.2 | 70 | 7220 | 331 | 360 |
| 3×150 | 14.5 | 4.5 | 1.8 | 3.15 | 3.4 | 75 | 8785 | 374 | 404 |
| 3×185 | 16 | 4.5 | 1.8 | 3.15 | 3.5 | 79 | 9612 | 427 | 456 |
| 3×240 | 18.2 | 4.5 | 1.9 | 3.15 | 3.6 | 85 | 10853 | 502 | 529 |
| 3×300 | 20.4 | 4.5 | 1.9 | 3.15 | 3.8 | 90 | 12228 | 573 | 597 |
| 3×400 | 23.4 | 4.5 | 2.1 | 3.15 | 4.1 | 97 | 13894 | 660 | 678 |
Our certification
Our products meet standards of UL, GB, IEC, DIN, ASTM, JIS, NF, AS/NZS CSA GOST etc. As leading professional supplier in China, we have obtained ISO9001, ISO14001, CCC, API & UL certificates.
Production Line
As the leading professional cables manufacturers in China, our factory is mainly specialized in LV,MV electrical power cable, control cable, signal cable, flexible cable, aerial bundle cable, PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable, Welding Cables & UL wires etc.
Our market
With the perfect quality and after sales service, our products are very popular both in domestic & overseas market.
Company Introduction
Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Jinan, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.
Main Products
LV Power Cable & Control Cable / MV (35kV & below 35kV) Power Cable/ Armoured cable / Signal Cable / Flexible Cable/ Aerial Cable / Building Wire / Aluminum Alloy Cable / UL Wire
ESP Power Cable & Motor Lead Extension Cable / Fireproof cable / Mine Cable / Marine Cable / Railway Vehicle Cable / Rubber Cable etc.
Our Service
1. All of products are certificated.
2, Qualified products.
3, In time delivery.
4,OEM and ODM production.
5,Technical support by professional sales people and engineer services.
6.Products qualify guarrantee as long as 18 month after date of delivery.
Contacts
Ms. Ada Ren from Changfeng Wire&Cable Co.,Ltd
Web:
Moible: 0086-18660195571
Skype: sibylyiguan
Whatsapp/Wechat: 0086-13953179566

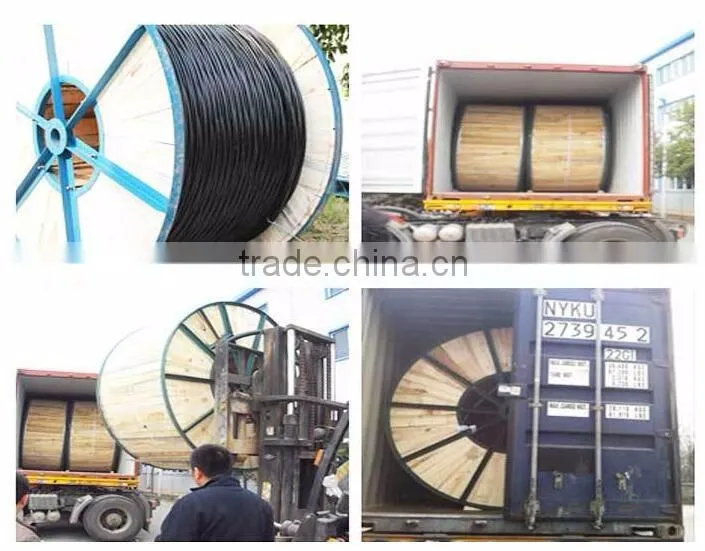

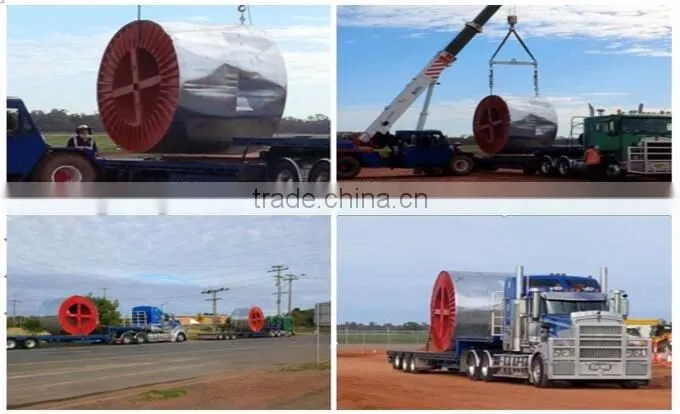

Package
Wooden drums, steel wooden drums or as per customers’ request.
