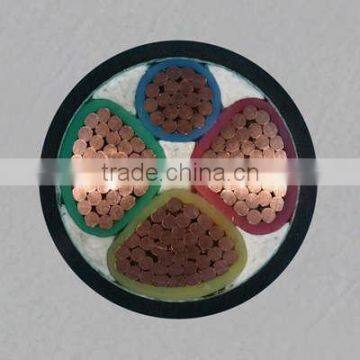

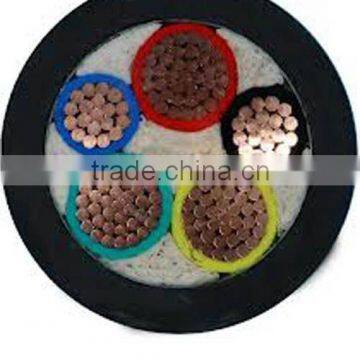

2016 Alibaba best selling 6.35/ 11KV copper conductor Steel wire armoured XLPE Cable
1 Application Alibaba best selling 6.35/ 11KV copper conductor Steel wire armoured XLPE Cable
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting.
Standards: BS6622, BS EN/IEC 60228,IEC60502.2
Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Conductor screen: Semi-conducting material
Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
Insulation Screen: Semi-conducting material
Metallic Screen: Individual and overall copper tape screen to BS6622
Filler: PET (Polyethylene Terephthalate) fibres
Separator: Binding tape
Bedding: PVC (Polyvinyl Chloride) Type TM1 to BS7655
Armouring:
Single Core: Aluminium Wire Armoured (AWA)
MultiCore: Steel Wire Armoured (SWA)
Sheath: PVC (Polyvinyl Chloride) Type TM1 to BS7655
Colour: Red or Black
2 Using features Alibaba best selling 6.35/ 11KV copper conductor Steel wire armoured XLPE Cable
1. Rated voltage: Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).
2. No. of core: Single core or three cores.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250℃.
4. D.C. resistance of the conductor complies with the stipulations of 3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).
5. The environment temperature should be no lower than 0oC when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit.
7. Working Frequency Voltage Test: 3.5Uo/5min without puncture.
8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.
9. Minimum Bending Radius
Single core - Fixed: 15 x overall diameter
3 core - Fixed: 12 x overall diameter
(Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
Note:
The single core armoured cables are used for D.C. system only. If used for A.C. system, the magnetic isolation should be applied on the steel armoire wires of non-magnetical materials should be used.
Our certification
Our products meet standards of UL, GB, IEC, DIN, ASTM, JIS, NF, AS/NZS CSA GOST etc. As leading professional supplier in China, we have obtained ISO9001, ISO14001, CCC, API & UL certificates.
Production Line
As the leading professional cables manufacturers in China, our factory is mainly specialized in LV,MV electrical power cable, control cable, signal cable, flexible cable, aerial bundle cable, PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable, Welding Cables & UL wires etc.
Our market
With the perfect quality and after sales service, our products are very popular both in domestic & overseas market.
Company Introduction
Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Jinan, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.
Main Products
LV Power Cable & Control Cable / MV (35kV & below 35kV) Power Cable/ Armoured cable / Signal Cable / Flexible Cable/ Aerial Cable / Building Wire / Aluminum Alloy Cable / UL Wire
ESP Power Cable & Motor Lead Extension Cable / Fireproof cable / Mine Cable / Marine Cable / Railway Vehicle Cable / Rubber Cable etc.
Our Service
1. All of products are certificated.
2, Qualified products.
3, In time delivery.
4,OEM and ODM production.
5,Technical support by professional sales people and engineer services.
6.Products qualify guarrantee as long as 18 month after date of delivery.
Contacts
Ms. Ada Ren from Changfeng Wire&Cable Co.,Ltd
Web:
Moible: 0086-18660195571
Skype: sibylyiguan
Whatsapp/Wechat: 0086-13953179566
Package
Wooden drums, steel wooden drums or as per customers’ request.
