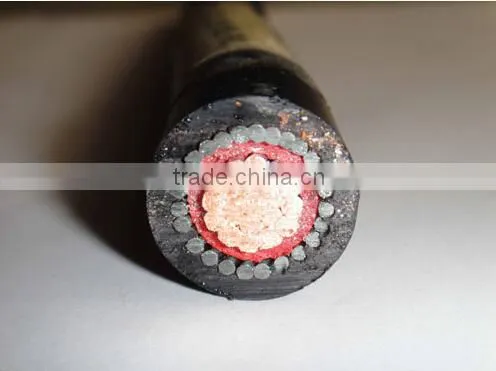

2016 Copper XLPE Insulated PVC Sheathed Electrical Power Cable
US$ 0.11 - 0.99
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
CHANGFENG
Model Number:
YJV,YJLV
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN SHANGHAI QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 6/10kV Single Core Steel Wire Armored Underground Electrical Cables and WiresUS$ 0.11 - 0.99MOQ: 1000 Meters -
2016 Power Cable Manufacturer Electrical Cable Three Phase 3x10mm2 3x16mm2 3x25mm2US$ 0.11 - 0.99MOQ: 1000 Meters
-
2016 Low Voltage Pvc Insulated Electric Cable/electric Wire Cable 25mm2 35mm2 70mm2 95mm2US$ 0.11 - 0.99MOQ: 1000 Meters
-
2016 Up to 36kV Medium Voltage XLPE Insulated Steel Wire/tape Armoured Power Cable 70mm2 95mm2 120mm2 150mm2US$ 0.11 - 0.99MOQ: 1000 Meters
-
2016 PVC/XLPE Insulation Electrical Cable Wire 10mmUS$ 0.11 - 0.99MOQ: 1000 Meters
Place of Origin
Hebei, China
Brand Name
CHANGFENG
Model Number
YJV,YJLV
Insulation Material
XLPE
Type
Low Voltage
Application
Construction
Conductor Material
Copper
Jacket
PVC
2016 copper XLPE insulated PVC sheathed electrical power cable
XLPE cable used in transmission and distribution system operating at voltage ,0.6/1,1.8/3
ISO9001-2008, IEC ,CCC
- Mode and name
XLPE cable
Model |
Name |
|
YJV YJLV |
CU or AL conductor ,XLPE insulated PVC sheathed electric cable |
|
YJV22 YJLV22 |
Cu or Al conductor XLPE insulated steel tape armoured sheathed electric cable |
| XLPE insulated electric cable 0.6/1kv | |||||||||||
| norminalsectional area | insulati-on thicknes | sheath thickness(mm) | overal diameter of cable (mm) | D.C resistance of conductor(km) | current rating | ||||||
| in air(A) | direct in soil(A) | ||||||||||
| cu | Al | cu | Al | cu | Al | ||||||
| 1×1.5 | 0.7 | 1.5 | 6 | <=12.1 | <=12.1 | 30 | 25 | 45 | 35 | ||
| 1×4 | 0.7 | 1.5 | 7 | <=7.41 | <=7.41 | 45 | 35 | 60 | 50 | ||
| 1×6 | 0.7 | 1.5 | 7 | <=3.08 | <=4.61 | 55 | 45 | 70 | 55 | ||
| 1×35 | 0.9 | 1.5 | 12 | <=0.524 | <=0.868 | 175 | 140 | 190 | 150 | ||
| 1×50 | 1 | 1.5 | 13 | <=0.387 | <=0.641 | 210 | 170 | 225 | 180 | ||
| 1×70 | 1.1 | 1.5 | 14 | <=0.268 | <=0.443 | 270 | 215 | 280 | 225 | ||
| 1×95 | 1.1 | 1.5 | 16 | <=0.193 | <=0.320 | 340 | 275 | 335 | 270 | ||
| 1×120 | 1.2 | 1.5 | 18 | <=0.153 | <=0.253 | 400 | 320 | 380 | 305 | ||
| 1×150 | 1.4 | 2 | 21 | <=0.124 | <=0.206 | 460 | 370 | 425 | 340 | ||
| 1×185 | 1.6 | 2 | 23 | <=0.0991 | <=0.164 | 530 | 415 | 480 | 375 | ||
| 1×240 | 1.7 | 2 | 25 | <=0.0754 | <=0.125 | 625 | 490 | 555 | 435 | ||
| … | |||||||||||
| 3×1.5 | 0.7 | 1.5 | 10 | <=12.1 | <=12.1 | 25 | 25 | 30 | 30 | ||
| 3×2.5 | 0.7 | 1.5 | 11 | <=7.41 | <=12.1 | 30 | 25 | 35 | 30 | ||
| 3×4 | 0.7 | 1.5 | 12 | <=4.61 | <=7.41 | 40 | 30 | 50 | 40 | ||
| … | |||||||||||
| Attention: We can provide more info than above data, if needed.The above are just some examples. | |||||||||||
