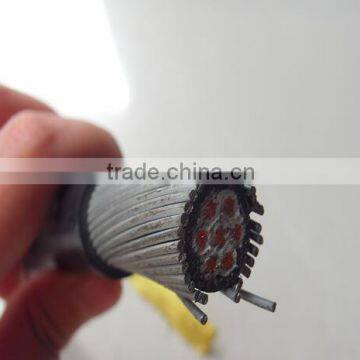

2016 Up to 36kV Medium Voltage XLPE insulated Steel wire/tape armoured power cable 70mm2 95mm2 120mm2 150mm2
Application for Steel wire/tape armoured power cable
Medium voltage Copper/Aluminum Conductor steel wire/tape armoured power cable is used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable,xlpe insulated 3 core cable boasts not only characteristic of excellent electricity, mechanism, heat and aging-resistant, environment stress- resistant and chemical corrosionresistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.
Construction for Medium voltage steel wire/tape armoured power cable
conductor: copper/aluminum
insulation:XLPE
armor: SWA/STA Or without armor
sheath:PVC
character: flame retardant, fire resistance;more information with medium voltage welcome to contact us directly.
Standard of Medium voltage steel wire/tape armoured power cable
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Specification for Medium voltage steel wire/tape armoured power cable
Type |
Description |
Main Application |
|
Cu core |
Al core |
||
|
(ZR)YJV or (ZR)YJY |
(ZR)YJLV or (ZR)YJLY23 |
(Flame retardant) Cu/ Al XLPE insulated PVC sheathed power cable. |
For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid. |
|
(ZR)YJV22 or (ZR)YJY23 |
(ZR)YJLV22 or (ZR)YJLV23 |
(Flame retardant) Cu/Al XLPE insulated steel armoured PVC sheathed power cable. |
For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force. |
|
(ZR)YJLV32 or (ZR)YJLV33 |
(ZR)YJLV32 or (ZR)YJLV33 |
(Flame retardant) Cu/Al XLPE insulated, fine steel wire armoured, PVC sheathed power cable |
For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force. |
|
(ZR)YJLV42 or (ZR)YJLV43 |
(ZR)YJLV42 or (ZR)YJLV43 |
(Flame retardant) Cu/Al XLPE insulated thick steel wire armoured PVC sheathed power cable |
For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force. |
Company Introduction
Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Jinan, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.
Main Products
LV Power Cable & Control Cable / MV (35kV & below 35kV) Power Cable/ Armoured cable / Signal Cable / Flexible Cable/ Aerial Cable / Building Wire / Aluminum Alloy Cable / UL Wire
ESP Power Cable & Motor Lead Extension Cable / Fireproof cable / Mine Cable / Marine Cable / Railway Vehicle Cable / Rubber Cable etc.
