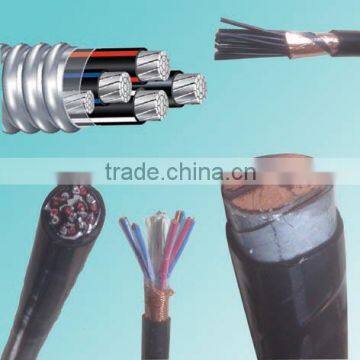

2016 6/10kV Single core steel wire armored underground electrical cable
The 6/10kV Single core steel wire armored cable can be used for laying indoor, tunnel, underground , canal, water and seabed , etc . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armored , water proof material , corrugated alu sheath , lead sheath , etc.

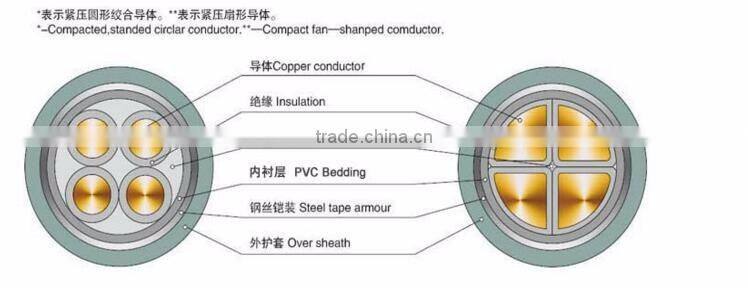

Structure:
1) Conductor: Cu or Al
2) Conductor screen: Semi-conducting XLPE
3) Insulation: XLPE
4) Insulation Screen: Semi-conducting XLPE
5) Metallic Screen: Individual and overall copper tape screen
6) Armoring: Steel Wire Armored (SWA) or Steel tape armoured (STA)
7) Sheath: PVC,PE,LDPE,LLDPE,LSZH
8) Bedding: PVC
9) Color: Red, black or as your request
10) Voltage rate:3—35KV
11) No. of Core: 1,3
12)Standard: IEC, ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc.
Standard export package
Wooden drums, steel wooden drums or as per customers’ request.
Changfeng Wire&Cable Co.,Ltd.

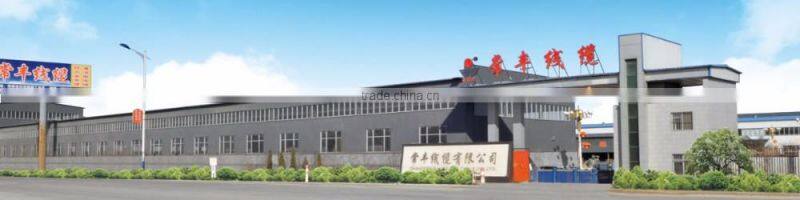

Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Jinan, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.
Ms. Ada Ren from Changfeng Wire&Cable Co.,Ltd
Web: /
Moible: 0086-18660195571
Skype: sibylyiguan
Whatsapp/Wechat: 0086-13953179566
LV Power Cable & Control Cable / MV (35kV & below 35kV) Power Cable/ Signal Cable / Flexible Cable/ Aerial Cable / Building Wire / Aluminum Alloy Cable / UL Wire / ESP Power Cable & Motor Lead Extension Cable / Fireproof cable/ Mine Cable / Marine Cable / Railway Vehicle Cable / Rubber Cable etc.
