CDH-180-4L Drawing Type Facial Tissue Machine

CDH-180-4L Drawing Type Facial Tissue Machine photo-1

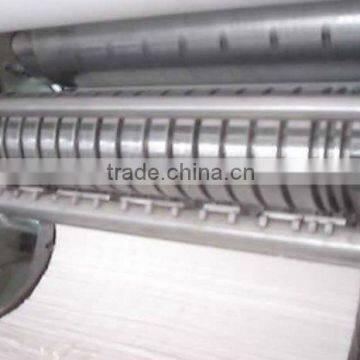

CDH-180-4L Drawing Type Facial Tissue Machine photo-2

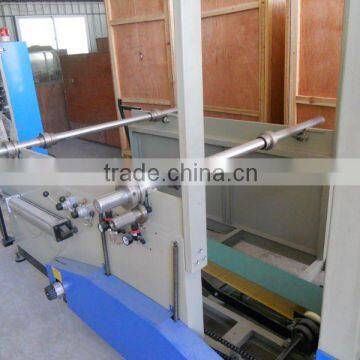

CDH-180-4L Drawing Type Facial Tissue Machine photo-3

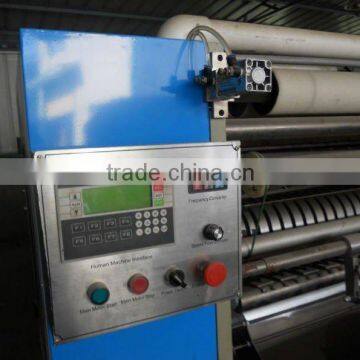

CDH-180-4L Drawing Type Facial Tissue Machine photo-4
CDH-180-4L Drawing Type Facial Tissue Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Facial Tissue
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Facial Tissue
Processing Type Paper Folding Machine
Place of Origin Fujian, China
Brand Name Chuangda
Model Number CDH-180-4L
Voltage 380V 50HZ
Power(W) 15kW
Dimension(L*W*H) 5100*1800*2100mm
Weight 3500kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Nice output.
faster speed.
Competitive price
Good after service

According to

According to customers requirement:

Equip embossing unit (clear embossing design)

Equip two color printing unit ( nice printing design)



Main Features:

Count automatically and output in order

Adopt screw turning knife to cut and vacuum absorption to fold.

Adopt steeples adjusting speed to unwind which may fix different tension of raw material

Control pneumatic with electric easy to operate.

Tissue papers width can be decided by customers in certain range.





Specifications:

Electrical source

380V 50HZ

Power

15KW (Vacuum air blower : 11kw)

Product size

200*(130-210)mm L*W, Width can be adjusted

Folding size

100*(130-210)mm, L*W Width can be adjusted

Production capacity

80-100m/min *4line

Paper layer

2 layers

Base paper width

840mm

Outside dimensions

5100*1800*2100mm (L*W*H)

Weight

3500kg

Functions:

The machine is professional produce box draw tissue paper product. After alternation folding the tissue, and then put into the box. It is easy to draw out, neatness and refined. It absorbs the advantage of equipment of the same kind at home and abroad, and adopts vacuum suction technology to fold napkin, tight structure and production precision, easy operation, high efficiency. It is an advanced type of the box tissue production machine.

1. Automatic counting sub-bit row of output;
2. Screw shear knives, vacuum folding;
3. Variable speed unwinding, can be adapted to base level of tension;
4. Electronically Controlled Pneumatic, easy to operate;
5. Product width can be adjusted to facilitate marketing;
6. Matching pattern paper rolling device, the pattern is clear, flexible and market demand. (Pattern set by the select guests)
7. Matching color flexographic printing equipment, colorful patterns.

 CDH-180-4L Drawing Type Facial Tissue MachineCDH-180-4L Drawing Type Facial Tissue Machine
