CDH-V-7L V-folding Hand Towels Machine

CDH-V-7L V-folding Hand Towels Machine thumbnail-1
CDH-V-7L V-folding Hand Towels Machine thumbnail-2
CDH-V-7L V-folding Hand Towels Machine thumbnail-3
CDH-V-7L V-folding Hand Towels Machine thumbnail-4
CDH-V-7L V-folding Hand Towels Machine thumbnail-5
CDH-V-7L V-folding Hand Towels Machine thumbnail-6
CDH-V-7L V-folding Hand Towels Machine photo-1
CDH-V-7L V-folding Hand Towels Machine photo-2
CDH-V-7L V-folding Hand Towels Machine photo-3

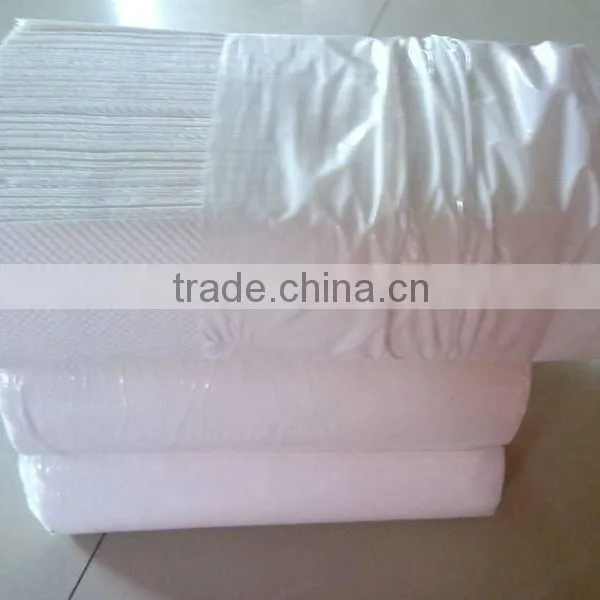

CDH-V-7L V-folding Hand Towels Machine photo-4

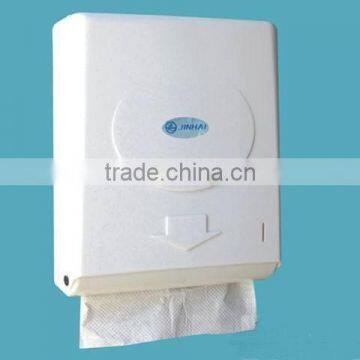

CDH-V-7L V-folding Hand Towels Machine photo-5
CDH-V-7L V-folding Hand Towels Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Facial Tissue
Processing Type:
Paper Folding Machine
Contact Supplier Request Quote Chat Now
Chuangda Machinery (Fujian) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Facial Tissue
Processing Type Paper Folding Machine
Place of Origin Fujian, China
Brand Name Chuangda Machinery
Model Number CDH-N-3L
Voltage 380V, 50HZ .3 phase
Power(W) 46KW
Dimension(L*W*H) 6300*2900*1980mm
Weight 4000kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Easy operation
Stable machine
Good quality.
competitive price



CDH-V-7L used PLC computer programming technology, variable frequency speed control, human-machine interface operating system; CVT transmission ratio before and after, to adapt to pull the paper to improve the uniformity of finished appearance.



Functions and Features

Configuration Pneumatic embossed steel to steel, pneumatic separatorBack pressure on the use of paper planes paper, non-polar ratio adjustment, adjusting the tension of base paper.The use of Roots vacuum adsorption system, inspiratory capacity and stable operation.Break automatic shutdown system, to avoid breaking free paper or paper waste generated.The use of traction before and after the switch to move the base, operation is more simple and more secure.



Main Technical Parameter

Production Size

200×200mm (other size is available)

Parent Roll Size

Dia 1700mm (other sizes are available)

Paper Core Size

Dia 76.2mm (other sizes are available)

Production Speed

80 m/ min

Control System

PLC Control System

Embossing System

Steel to Steel

Cutting System

Pneumatic Cutting

Drive System

Synchronous Belt,Nonpolar Gear-box

Counting System

Printing ink

Power System

5.5 KW

Vacuum System

37 KW Roots Vacuum Pump

Pneumatic System

3 HP Air Compressor ≥5kg/cm  Pa (prepared by customer)

Machine Size

6300×2900×1980mm (L×W×H)

Net Weight of Machine

4000 kg



l The machine auto stop when material finished (option)

l The tension of paper can be controlled.

l Full embossing.

CDH-V-7L V-folding hand Towels MachineCDH-V-7L V-folding hand Towels MachineCDH-V-7L V-folding hand Towels Machine
