Specifications
1)Paper Machinery2)Point to Point embossing
3)hight speed
4)embossing, rewindin,sealing,cutting, packing
5)CE certification
Features:

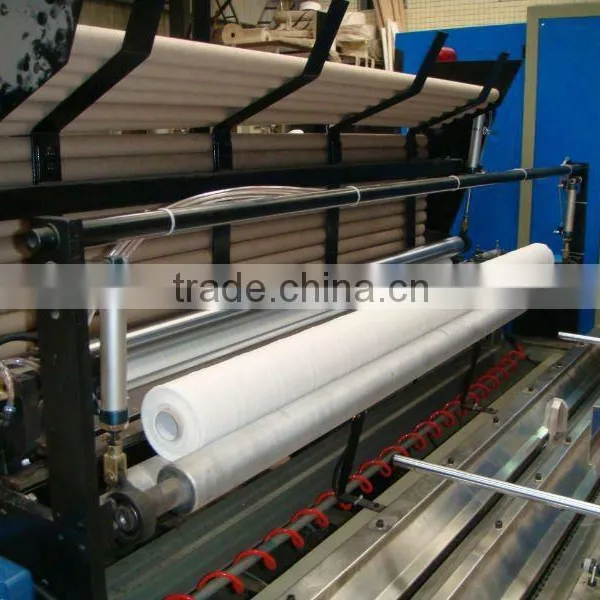

1) the machine with Automatic core loading and replacing. The logs are automatically pushed out after finishing winding,
and then start winding again. The cores can be adjusted to any size of cores within one minute.After finished winding the
roller pushed out automatically.
It’s adopt machanism arm pusher to push the roller out. The minimum diameter of finished roll is
60mm.
2) Automatic trimming, gluing and sealing: it has replaced the traditional sealing of rolls with the international popular
trimming and sealing, which can have 10~18mm tails to facilitate to start pulling out the paper. At the same time,
it can greatly cut down the wastage of the paper, thus to cut down the production cost.
3) Advanced PLC programmable control technology: the winding profiles can be tight at the beginning of winding, and
then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.
4) Automatic detection of paper break and paper wrap up: to guarantee the high quality of the finished rolls even in the high speed operation.
5) Coreless rewinding system has changed the traditional mathod to take out the core to make with quality solid coreless
roller. Reducing the manpower.With high precision screwy perforation knife.
6) With 4 perforation blades to make clear perforating. The perforating pitch controlled by gear box.
Three backstands, pneumatic jumbo roll loading, and pneumatically wide belt paper unwinding driving, and individual web
tension control unit for each jumbo roll.
7) point to point embossing unit: the paper are embossed on both sides and feel softer. It make embossing more clearer
and better. The finished rolls compared to the same diameter rolls with less paper.The web can be threaded on the
machine by the two jog buttons. It’s more safety and easier to feed the web.
Main Parameter of toilet paper machine:
Main Technical Parameter | |
Finished Roll Diameter |
Φ70~140 mm (Degree of tightness adjustable) |
Finished Roll Core Diameter |
Φ20~50 mm |
Raw Material Diameter |
≤Φ1100 mm (Other sizes are available ) |
Raw Material Core Diameter |
3”(76.2 mm) (Other sizes are available ) |
Perforating Pitch |
90~160mm (pneumatically separating unit-optional) |
Speed |
180-200 meters/min |
Parameter Setting |
Touch button LCD Screen operation panel |
Programme Controller |
MITSUBSHI Programmable Controller (PLC) |
Unwinding Paper Stand |
3 ply |
Pneumatic System |
3 HP air compressor, mini pressure 5kg/cm2 Pa(Provided by client) |
Power |
Variable frequency speed control, 7.5KW |
Machine Size |
6200×4200×1800mm(L×W×H) |
Weight |
6800kg |
Mechanism Driving: |
Stepless gear box, insure the precision of finished product length |
Embossing Roller: |
Two sets of Steel to rubber |
