CDH-90 Toilet Paper Roll Packing Machine

CDH-90 Toilet Paper Roll Packing Machine photo-1

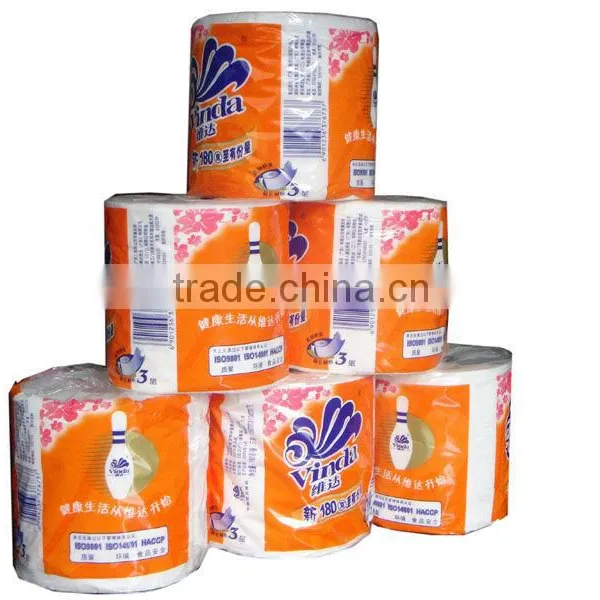

CDH-90 Toilet Paper Roll Packing Machine photo-2

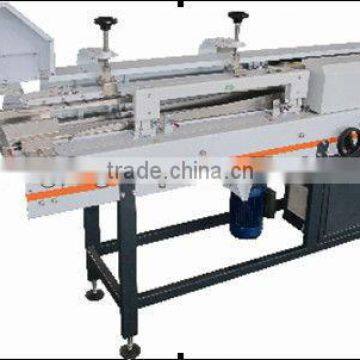

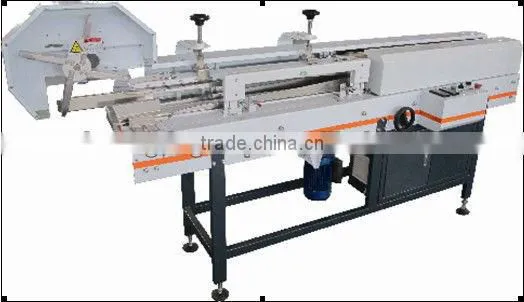

CDH-90 Toilet Paper Roll Packing Machine photo-3

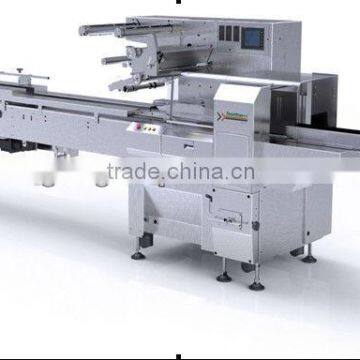

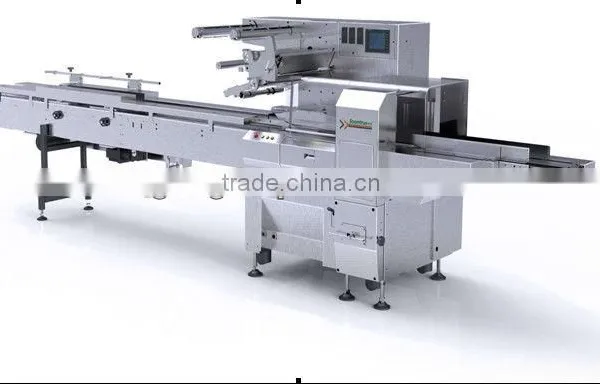

CDH-90 Toilet Paper Roll Packing Machine photo-4

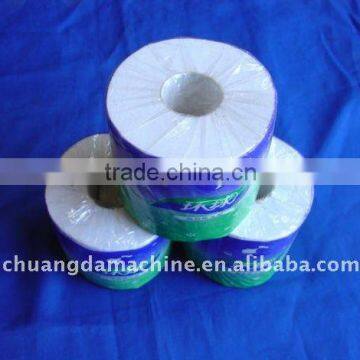

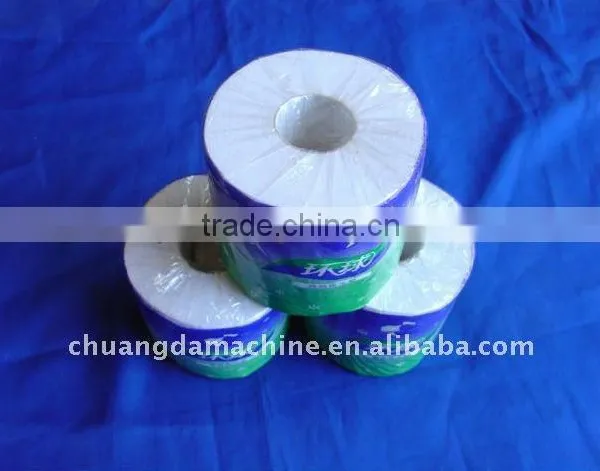

CDH-90 Toilet Paper Roll Packing Machine photo-5
CDH-90 Toilet Paper Roll Packing Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Toilet Tissue
Processing Type:
Other, warp machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Toilet Tissue
Processing Type Other, warp machine
Place of Origin Fujian, China
Brand Name Chuangda
Model Number CDH-90
Voltage 220V, 50HZ
Power(W) 3.2KW
Dimension(L*W*H) 5500*1005*1750mm
Weight 2ton
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Pillow type packing
Single roll packing
good after service..



Function and Feature of packing part:

Double frequency simple machanical structure, easy maintenance, less vibration and lower noise, less wear and tear, with long longevity. Double film supporting structure, easy for changing the film supporting structure, easy for changing the film. Big touching screen with human-machine surface, easier for operation. Double frequency with stepless adjustment speed, packing speed and the length can be adjusted casually. High-precision fiber magic eye makes the correct tracking, correct sealing and cutting position; sealing temperature is independently controlled. It is equipped with code printer, the printing position can be set casually.

Main Technical Parameter of packing machine:

Center Distance: 192mm

Packing Speed: 35~120 bags/min

Max Film Width: 450mm

Finished Bag Size:(150-250140mm(L×W×H)(Max)

Max Height: 120mm

Motor Power: 0.75 ,  0.2 KW

Weight: 900 kg

Machine Noise: 78db

Pass Percent of Finished Bag ( Percentage): 97%

Sealing pressure: 15 newton/mm

Outsize Dimension of Machine: 4432×1115×1750mm(L×W×H)(with tool stock)

Type Of Power Supply: 380V 50HZ

Packing Film: OPP, PE, PVC, OPP/CPP, PT/PE



Remark: If you want 8,10,12 pcs per package, we also have that machine, need to change the packing part.
