4000 Counts Auto and Manual Range Digital ce Multimeter With NCV
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
MS86
Measuring Current Range:
DC Current:400μA/4000uA/40mA/400mA/10A;AC Current:400μA/4000uA/40mA/40
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25MHz Dual Channels Usb Oscilloscope Second Hand From ChinaUS$ 181.11 - 190MOQ: 1 Set -
Auto Range True RMS Compact Digital Multimeter for Electrical Troubleshooting Peak Value RS232 Rel AC/DCUS$ 25.12 - 29MOQ: 1 Set
-
Best True RMS Electronic Clamp Meters UT208US$ 63.83 - 73MOQ: 1 Set
-
Intelligent Clamp Type Digital Digital Power Clamp Meter TemperatureUS$ 36.93 - 42MOQ: 1 Set
-
Victor 3 1/2 High Precision Digital Lcr Inductance Capacitance Resistance Multimeter MeterUS$ 15 - 16MOQ: 200 Sets
Place of Origin
Guangdong, China
Model Number
MS86
Measuring Current Range
DC Current:400μA/4000uA/40mA/400mA/10A;AC Current:400μA/4000uA/40mA/40
Measuring Voltage Range
DC Voltage:400mV/4V/40V/400V/1000V;AC Voltage:400mV 4V/40V/400V/750V
Measuring Resistance Range
200Ω/2KΩ/20KΩ/200KΩ/2MΩ
Dimensions
188mmx92mmx50mm

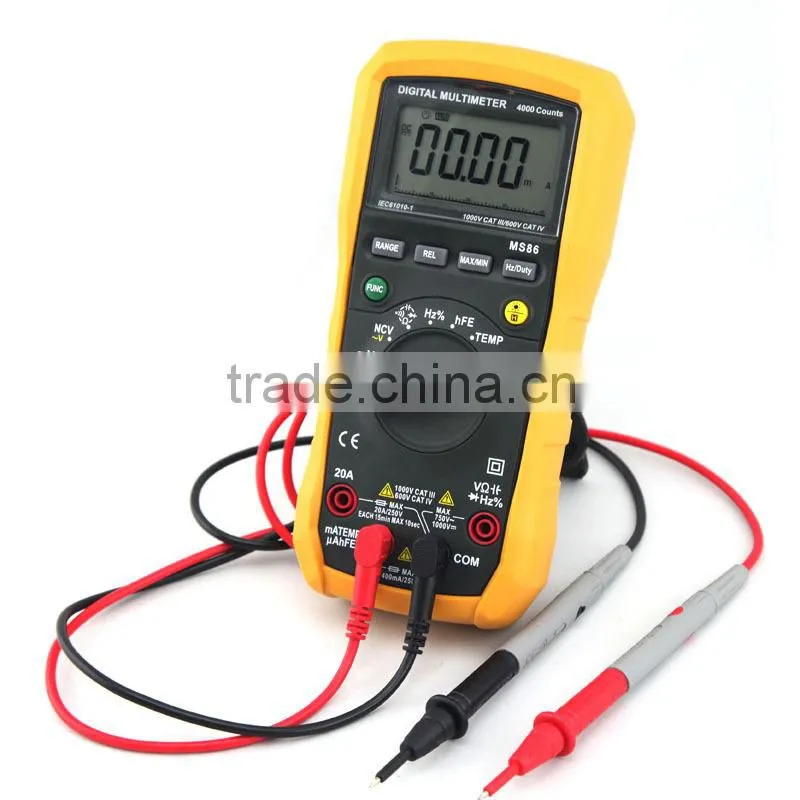

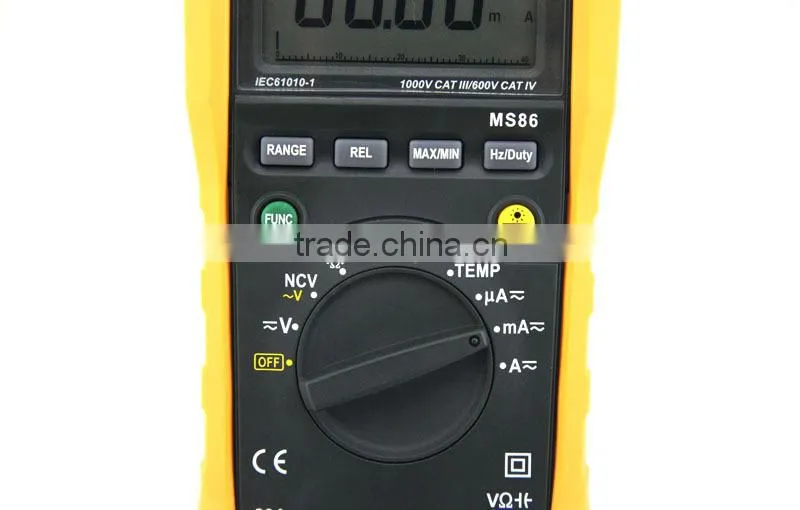

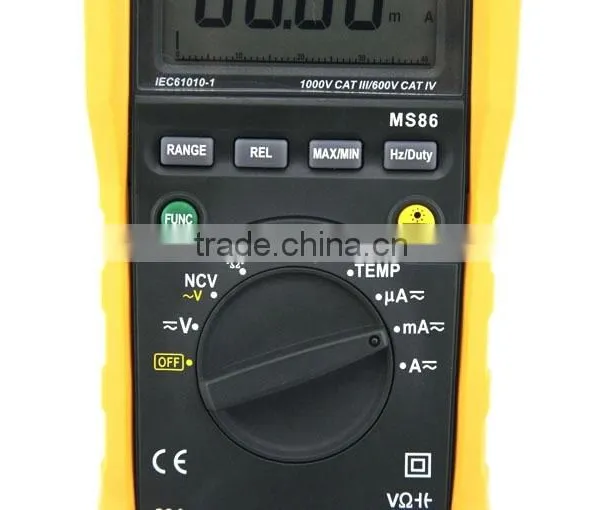

MS86 Auto and manual range digital ce multimeter with NCV
Resistance,Capacitance,Frequency,Duty cycel, TEMP. And diode testing, audible continuity and more.
Measuring DC Voltage to 1000V,AC Voltage to 750V and boasting auto-ranging functionality, the MS86 is a compact multimeter is perfect for your heavy duty testing needs.
In addition to reading AC/DC voltage and current, The MS86 allows resistance, audible continuity and diode testing, whilst also utilising its K-Type Thermocouple to measure temperature to 1000°C.
Offering safety ratings of 600V CATIV and 1000V CATIII, the MS86 is housed within double moulded plastic housing and features fused 10A DC current protection, ensuring safe usage in the field.

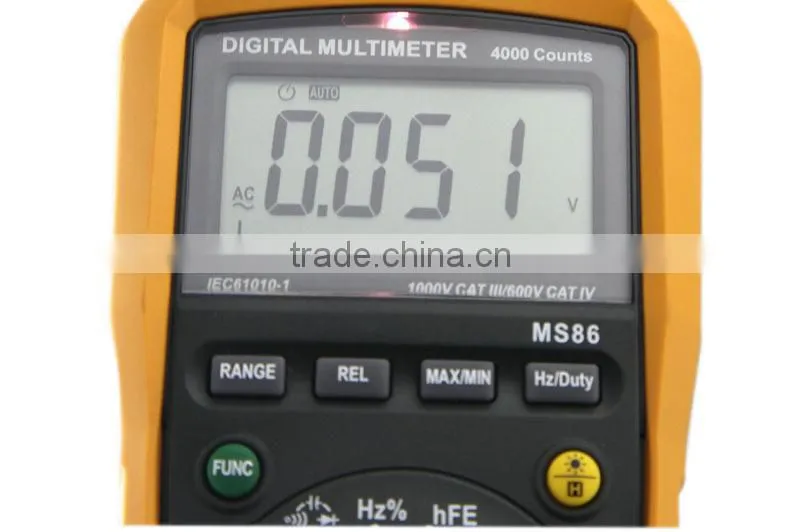

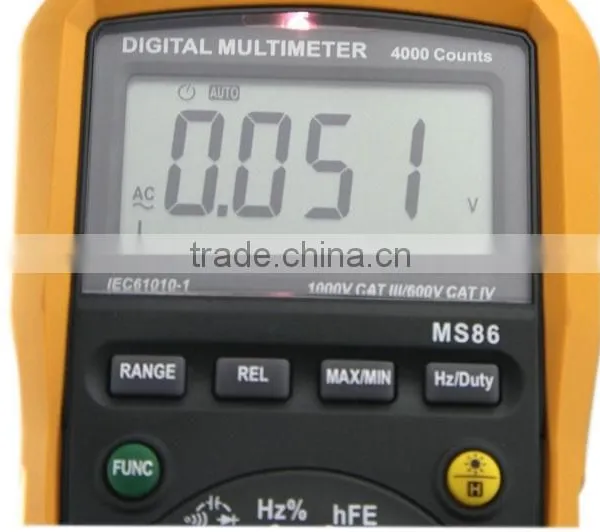

Lightweight and user-friendly, the MS86 comes with a 4000-count LCD screen and a variety of useful features, including Data / Max.Min Hold and REL functions.

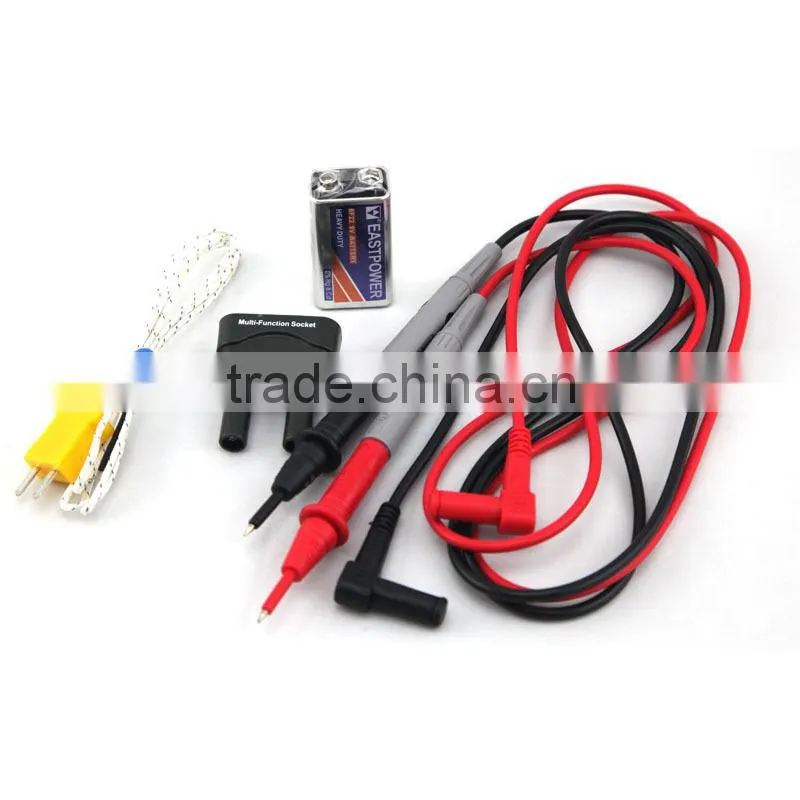

3.accessories
9.0V,6F22 Batteries
Test lead
Temperature .Probe

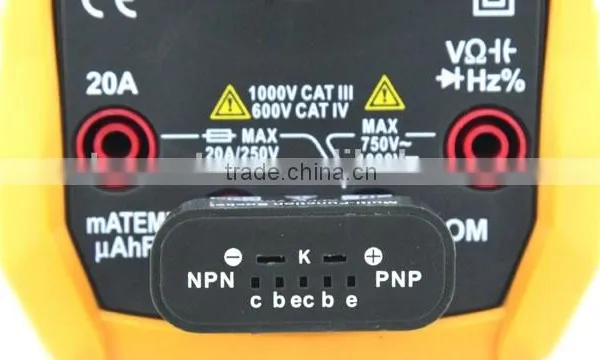

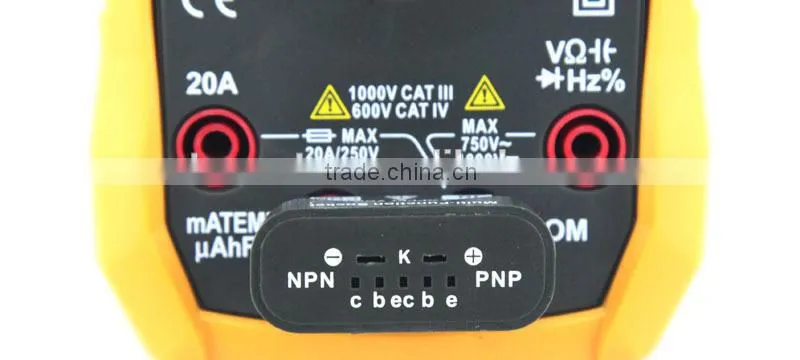

hFE socket
English manual
Resistance,Capacitance,Frequency,Duty cycel, TEMP. And diode testing, audible continuity and more.
Measuring DC Voltage to 1000V,AC Voltage to 750V and boasting auto-ranging functionality, the MS86 is a compact multimeter is perfect for your heavy duty testing needs.
In addition to reading AC/DC voltage and current, The MS86 allows resistance, audible continuity and diode testing, whilst also utilising its K-Type Thermocouple to measure temperature to 1000°C.
Offering safety ratings of 600V CATIV and 1000V CATIII, the MS86 is housed within double moulded plastic housing and features fused 10A DC current protection, ensuring safe usage in the field.
Lightweight and user-friendly, the MS86 comes with a 4000-count LCD screen and a variety of useful features, including Data / Max.Min Hold and REL functions.
Specifications |
Range |
Accuracy MS86 |
|
DC Voltage |
400mV/4V/40V/400V 1000V |
±(0.5%+2) ±(0.8%+2) |
|
AC Voltage |
400mV 4V/40V/400V 750V |
±(2.0%+3) ±(0.8%+3) ±(1.0%+3) |
|
DC Current |
400μA/4000uA/40mA/400mA 10A |
±(0.8%+2) ±(1.2%+2) |
|
AC Current |
400μA/4000uA/40mA/400mA 10A |
±(1.5%+2) ±(2.0%+2) |
|
Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ 40MΩ |
±(0.8%+1) ±(1.0%+2) |
|
Capacitance |
40nF/400nF/4μF/40μF/400μF/4000μF |
±(4.0%+5) |
|
Frequency |
10Hz~10MHz |
±(0.5%+2) |
|
Duty cycle |
1%~99% |
±(2.0%+2) |
|
Temperature(°C) |
-20°C~1000°C |
±(2.0%+2) |
|
Feature | |||
Display |
4000 Counts |
||
Auto and manual range |
√ |
||
Relative Measurement |
√ |
||
Max/Min Value hold |
√ |
||
Data hold |
√ |
||
Non-Contact Voltage Detector(NCV) |
√ |
||
Diode test |
√ |
||
Transistor |
√ |
||
Continuity |
√ |
||
Back light |
√ |
||
General | |||
Power supply |
9V6F22 Battery |
||
Weight |
Approx 380g |
||
Size |
188mmx92mmx50mm |
||
Safety Rating |
CE CAT.III1000V CAT.IV600V RoHS |
||
3.accessories
9.0V,6F22 Batteries
Test lead
Temperature .Probe
hFE socket
English manual
