Auto Range True RMS Compact Digital Multimeter for Electrical Troubleshooting Peak Value RS232 Rel AC/DC
US$ 25.12 - 29
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Nicety
Model Number:
ST8236
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best True RMS Electronic Clamp Meters UT208US$ 63.83 - 73MOQ: 1 Set -
Intelligent Clamp Type Digital Digital Power Clamp Meter TemperatureUS$ 36.93 - 42MOQ: 1 Set
-
Victor 3 1/2 High Precision Digital Lcr Inductance Capacitance Resistance Multimeter MeterUS$ 15 - 16MOQ: 200 Sets
-
10000 Display Count High Sensitivity Earth Leakage Current Clamp Meter UT251B With RS-232 InterfaceUS$ 80.88 - 85MOQ: 1 Set
-
AVD03 AC Live Wire Non-Contact Voltage DetectorUS$ 2.5 - 4MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
Nicety
Model Number
ST8236
Measuring Current Range
200uA/2mA/20mA/200mA/10A
Measuring Voltage Range
200mV/2V/20V/200V/600V
Measuring Resistance Range
200Ω/2KΩ/20KΩ/200KΩ/2MΩ
Dimensions
138mm* 68mm * 30mm

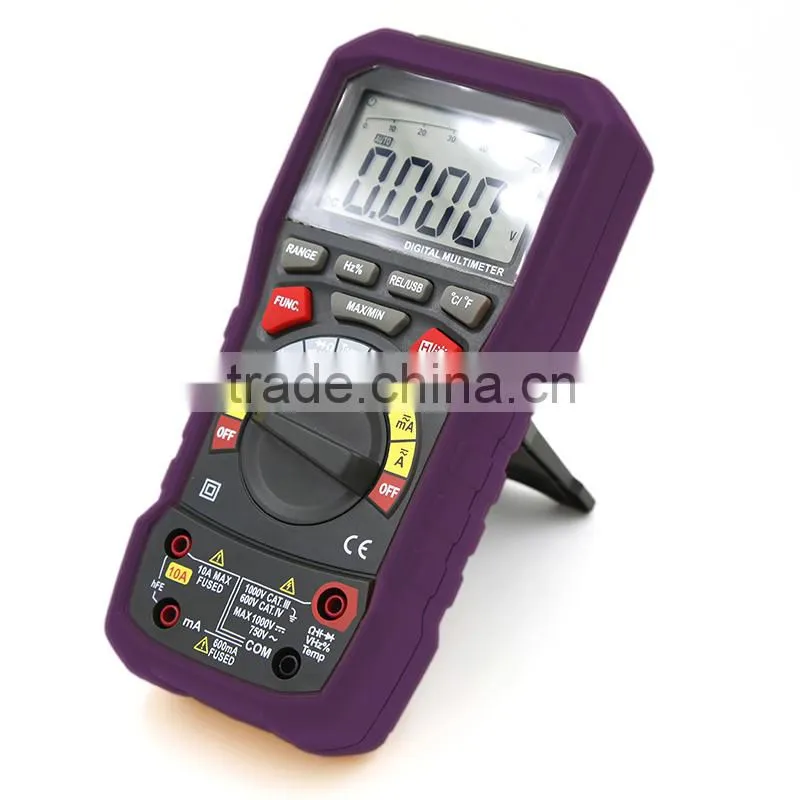

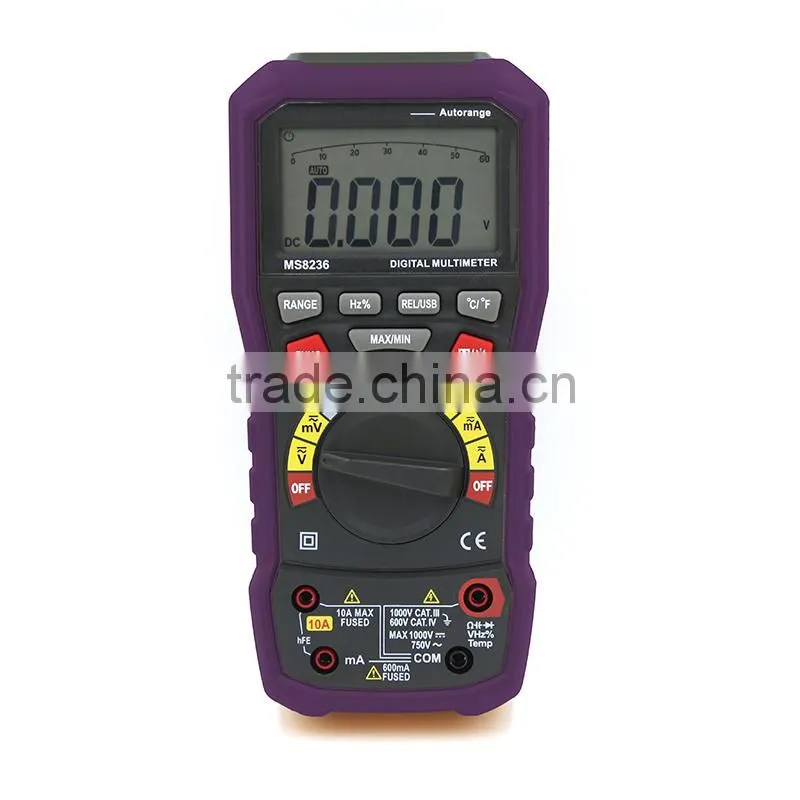

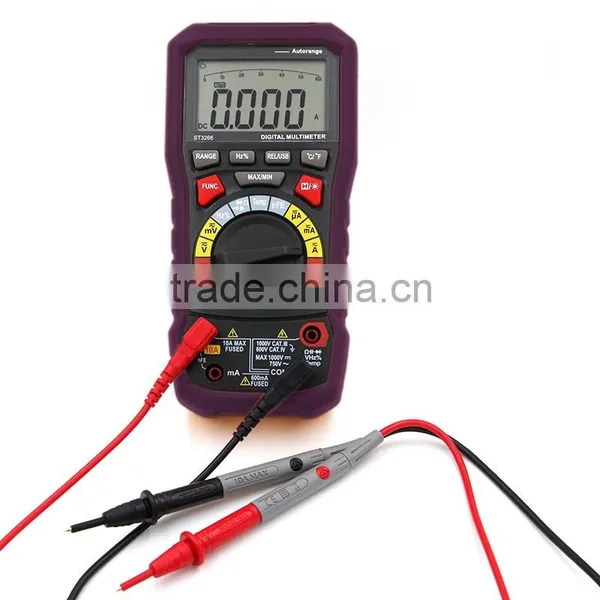

ST8236 Compact digital multimeter for electrical troubleshooting auto range true RMS Peak value RS232 REL AC/DC
1.Features:
* True RMS voltage and current measurements
* Easy one-hand operation with automatic AC/DC selection
* All you need for general electrical and electronic testing
* Large white LED backlight to work in poorly lit areas
* 6000 count resolution
* Digital display with analog bargraph
* Manual and automatic ranging
* Display Hold and Auto Hold
* Frequency and capacitance measurements
* Resistance, continuity and diode measurements
* Temperature measurements
* Min/Max/Max-Min to record signal fluctuations
* Ergonomic case with integrated protective holster
* USB Interface
* CAT VI 600V safety rated
2.Specifications
| Specifications | |||
| Voltage DC | 600mV/6V/60V/600V/1000V | ±(0.7%+2) | |
| Voltage AC | 600mV/6V/60V/750V | ±(0.8%+3) | |
| Current DC | 600µA/6000µA/60mA/600mA | ±(1.2%+3) | |
| 6A/10A | ±(2.0%+10) | ||
| Current AC | 600µA/6000µA/60mA/600mA | ±(1.5%+3) | |
| 6A/10A | ±(3.0%+10) | ||
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(1.2%+5) | |
| Capacitance | 10nF/100nF/1000 nF/10µF/40/100µF/1000µF/10mF/100mF | ±(3.0%+3) | |
| Frequency | 10Hz/100Hz/1KHz/10KHz/100KHz/1000kHz/10MHz | ±(1.0%+5) | |
| Duty Cycle | 0.1%~99.9% | ±(3.0%+2) | |
| Temperature | -20~1000°C/-4~1832°F | ±(2.0%+2) | |
| Features | |||
| Display | 6000 counts | ||
| Auto Ranging | Auto & Manual | ||
| Analog Bargraph | √ | ||
| Relative value | √ | ||
| True RMS | √ | ||
| Min/Max/Max-Min | √ | ||
| Diode | √ | ||
| Transistor hFE | √ | ||
| Data Hold | √ | ||
| Continuity Buzzer | √ | ||
| Display Backlight | √ | ||
| USB Interface | √ | ||
| General | |||

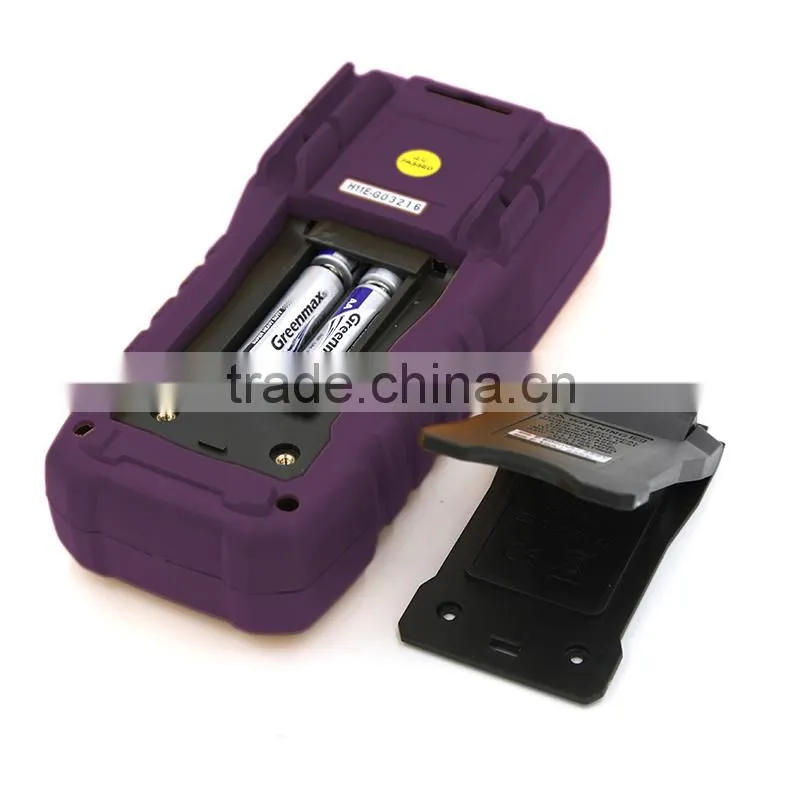

| Power Supply | 4 * 1.5V AAA Battery | ||
| Product Size | 204mm * 94mm * 57mm | ||
| Weight | Approx.410g | ||
| Safety Rating | CE CAT.III 1000V; CAT VI 600V; ROHS | ||
