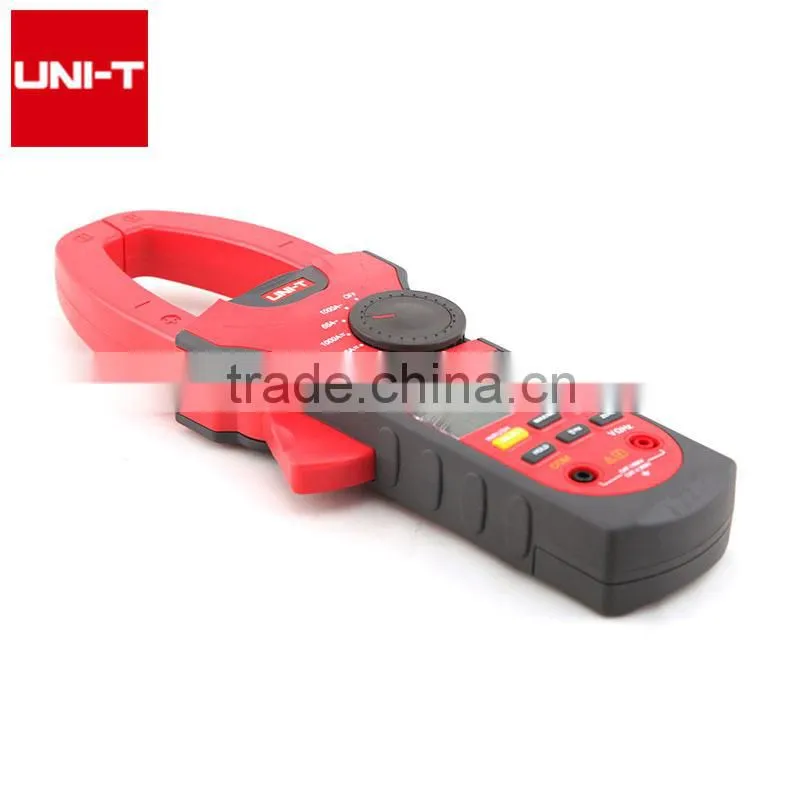

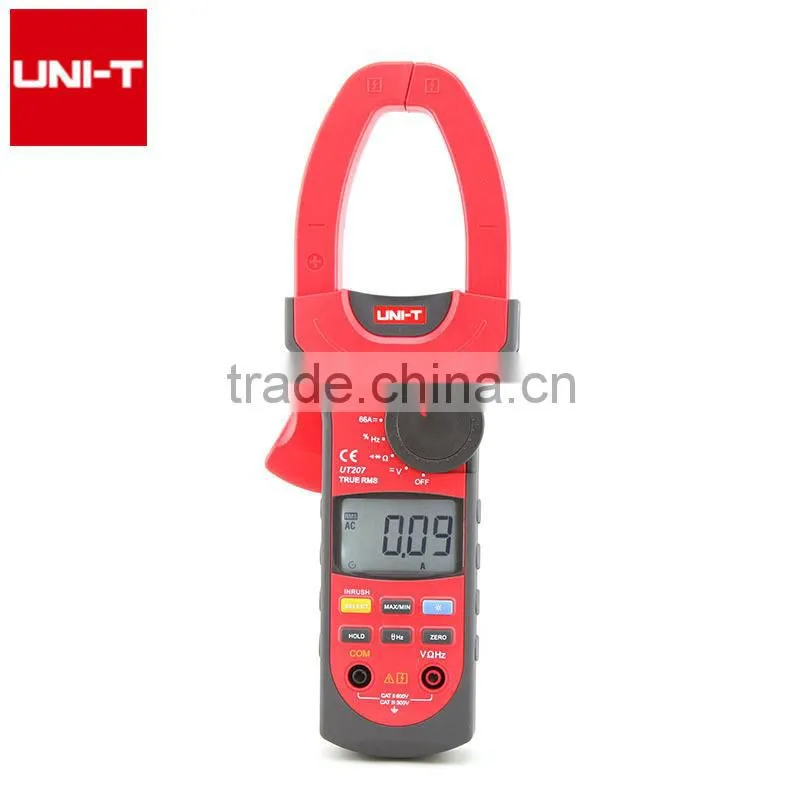

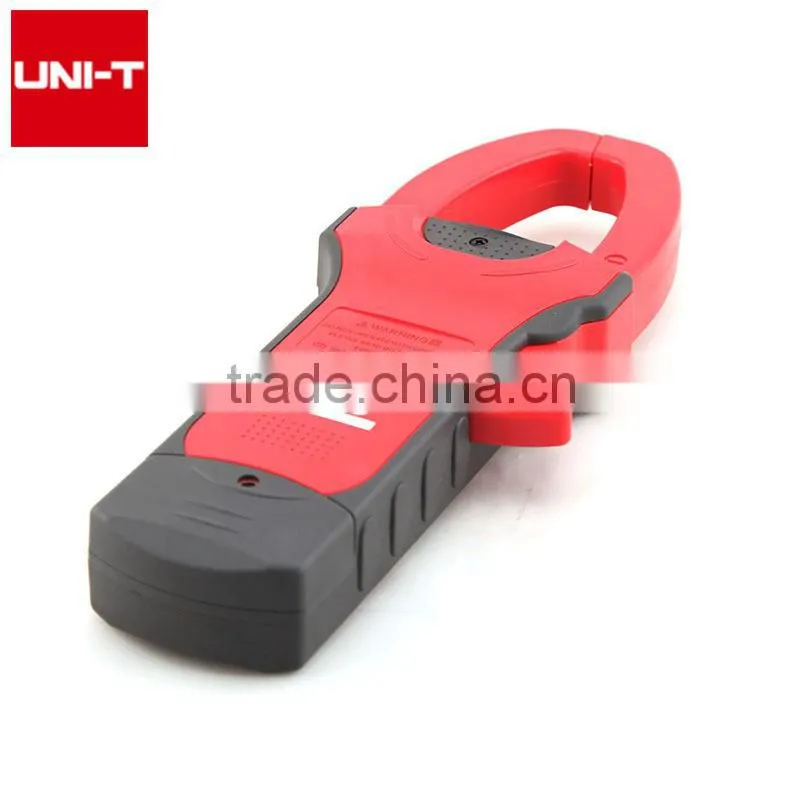

2015 Newest Low Price Hand-held True RMS Clamp Meter UT207

US$ 62.07 - 66 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

UT207

Display Type:

Digital Only

Shenzhen Starmeter Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number UT207

Display Type Digital Only

Measuring Current Range 66A/1000A

Measuring Voltage Range 6.6V/66V/600V

Measuring Resistance Range 600Ω/6.6KΩ/66KΩ/660KΩ/6.6MΩ/66MΩ

Dimensions 286mm X 105mm X45 mm

Weight 0.95kg

2015 Newest Low Price hand-held True RMS clamp meter UT207

Specifications	Range	Best Accuracy
Model		UT207
AC Current (A)	66A/1000A	±(2%+8)
DC Current (A)	66A/1000A	±(1.5%+8)
AC Voltage (V)	6.6V/66V/600V	±(1.2%+5)
DC Voltage (V)	6.6V/66V/600V	±(0.8%+1)
Resistance (Ω)	600Ω/6.6KΩ/66KΩ/660KΩ/6.6MΩ/66MΩ	±(1%+2)
Frequency (Hz)	660Hz/6.6KHz/66KHz/660KHz/6.6MHz/66MHz	±(1%+3)
Features
Display Count		6600
Auto Range		√
Jaw Capacity		55mm
True RMS	AC Voltage	√
Duty Cycle	0.1%~99.9%	√
Diode		√
Auto Power Off		√
Continuity Buzzer		√
Low Battery Indication		√
Data Hold		√
MAX/MIN		√
LCD Backlight		√
Full Icon Display		√
Inrush Current	AC Current	√
Input Impedance for DCV	Around 10MΩ	√
General Characteristic
Power	9V Alkaline Battery(6LF22)
LCD Size	47mm X 30 mm
Product Color	Red and Grey
Product Net Weight	533g
Product Size	286mm X 105mm X45mm

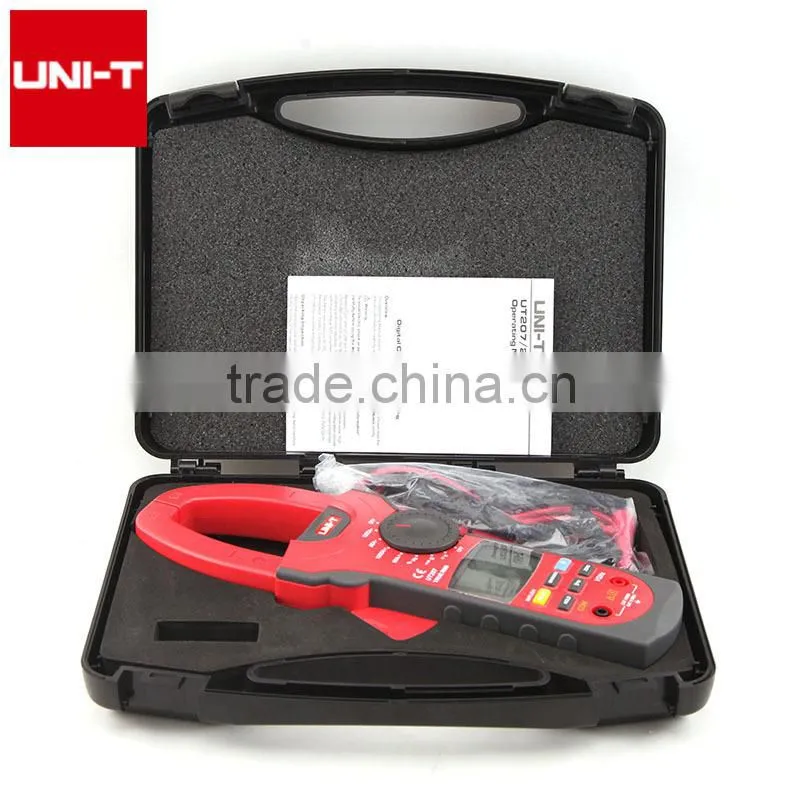

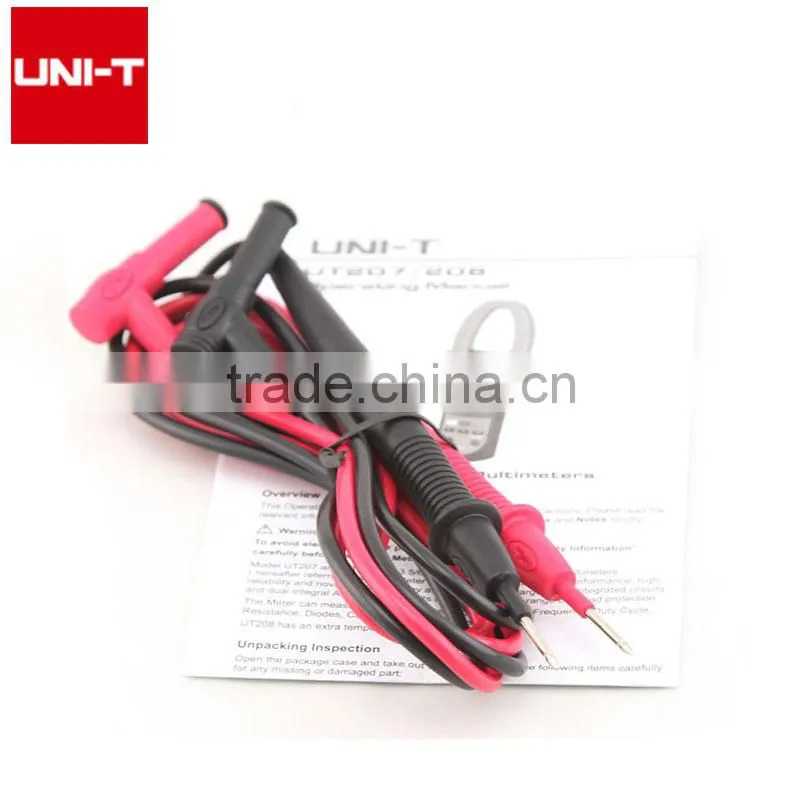

Standard Accessories	Alkaline Battery, Test Lead, Tool Box
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	5 PCs
Standard Carton Measurement	480mm X 372mm X 315mm (0.056 CBM Per Standard Carton)
Standard Carton Gross Weight	11Kg
