Help CenterAutomatic Clay Brick Making Machine/ Clay Brick Making Machine Price
Related Products
-
Factory Direct Sale Mud Brick Making Machine/manual Brick Making Machine/fly Ash Brick Making MachineUS$ 60,000 - 150,000MOQ: 1 Set -
Global Famous Brand Automatic Red Brick Making Machine PriceUS$ 50,000 - 120,000MOQ: 1 Set
-
Automatic Mud Brick Making Machine / Soft Mud Brick Making Machine / Clay Mud Brick Making MachineUS$ 50,000 - 120,000MOQ: 1 Set
-
Hollow Or Solid Red Brick Making MachineUS$ 50,000 - 120,000MOQ: 1 Set
-
Vacuum Type Fly Ash Brick Making Machine In India PriceUS$ 50,000 - 120,000MOQ: 1 Set
Specifications
1.Automatic clay brick making machine/clay brick making machine price2.Vacuum brick machine
3.Clay,soil,mud,shale,coal gangue
♥ Introduction of clay brick making machine:
The clay brick making machine, on the basis of absorbing and introducing the experiences at home and aboard, designed by our factory, is new type brick extruder machine. The series of two stages clay brick making machine is taking clay, shale, coal gangue, fly ash, mountain mud, silt, industrial tailings, sludge, etc. as raw materials, through crushing, mixing, clay brick making machine to make prescriptive cross-section of ordinary solid bricks, hollow bricks and other products for building. Using the technology of our this clay brick making machine can recycle the wastes, save energy and reduce consumption, which has the obvious economic benefits and social benefits.
♥ Performance and features of clay brick making machine:
1. Low noise when working and low power consumption.
2. Automatic machine. After setting the size and strength of bricks, if the outlet bricks can't reach the setted requirements, the unqualified bricks will return to the stock bin, after mixed, they will be pressed to the good bricks.
3. The clay brick making machine adopts wear-resisting metal powder spray technology: the stirring shaft, twisted axis and body are processed by long time quenching.
4. The gear reducer is hard tooth face, and the clutch uses screw pressing patented technology, which improve the lifetime of our clay brick making machine.
5. Reasonable design, compact structure: It can steadily running without installing founation bolts.
6. This clay brick making machine can make solid bricks, big hole and large section of hollow bricks.
7. High efficiency, high extruding pressure, quick, convenient and reliable.

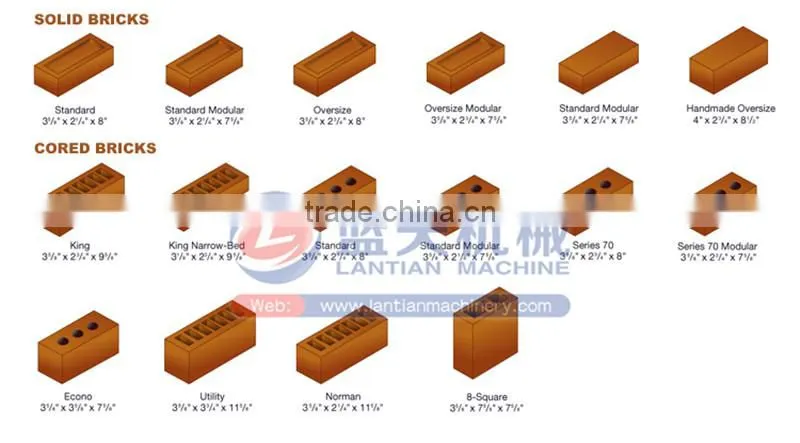

♥ Outlet bricks of clay brick making machine:
♥ Parameters of clay brick making machine:
Model |
Capacity (pcs/h) |
Power (kw) |
Diameter of reamer |
Vacuum degree |
Dimension (mm) |
JZK 90-4.0 |
20000 - 28000 |
132 + 315 |
900mm |
≤92% |
9225 x 2890 x 3590 |
JZK 75-4.0 |
16000- 24000 |
110 + 250 |
750mm |
≤92% |
8955 x 3075 x 3310 |
JZK 60-4.0 |
15000- 22000 |
90 + 200 |
600mm |
≤92% |
8655 x 2450 x 2820 |
JZK 55-4.0 |
14000 - 20000 |
75 + 180 |
550mm |
≤92% |
8360 x 2800 x 3590 |
JZK 50-3.5 |
13000 - 18000 |
55 + 132 |
500mm |
≤92% |
5350 x 1800 x 2100 |
JZK 45-3.0 |
10000 - 13000 |
110 - 132 |
450mm |
≤92% |
4960 x 1680 x 1750 |
JZK 40-3.0 |
8000 - 10000 |
90 - 110 |
400mm |
≤92% |
4750 x 1500 x 1650 |
JZK 35-2.0 |
6000 - 8000 |
55 - 75 |
350mm |
≤92% |
3750 x 1340 x 1550 |
JZK 30-2.0 |
4000 - 6000 |
45 - 55 |
300mm |
≤92% |
3450 x 1220 x 1320 |
♥ Delivery:

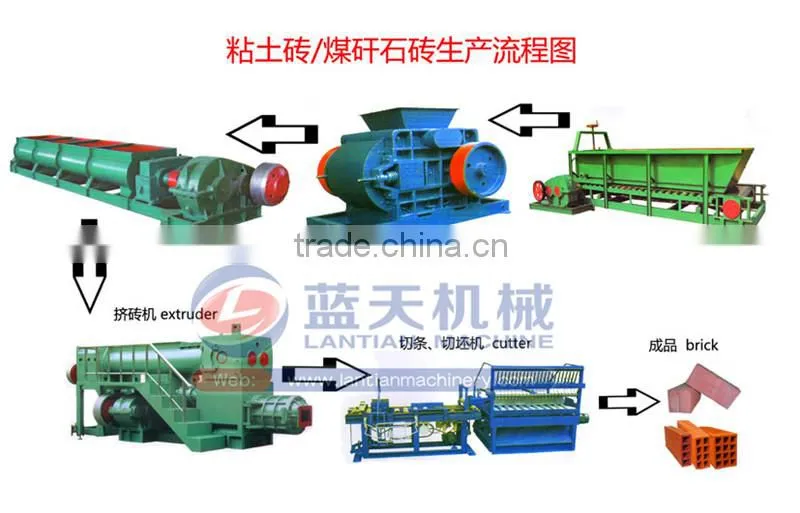

♥ Production line to make clay bricks:
The bricks making production line includes the machines of crusher, mixer, feeder, clay brick making machine, cutting machine and other necessary machines.
♥ Worksite:
♥ Other accessory machines for making clay bricks:
Crusher: The crusher is a raw materials crushing, squeezing, grinding equipment to crush the big sized materials into very small particles to meet then feeding requirement of main machine. We have many kind of crushers suitable crushing clay, stone, coal gangue, slag, shale and others.
Feeder: This feeder is an equipment to feeding materials evenly and quantitatively. It is applicable to various bulk and block materials with controllable feeding speed and feeding quantity.
Double shaft mixer: it is used to mix water and powder materials, which increase the comprehensive quality of raw materials, greatly improve the appearance quality and forming ratio.
Strip cutting and blank cutting machine: this machine is mainly used for cutting mud which is squeezed from main machine into qualified bricks. The cutter is new vertical strip cutting and blank cutting system, designed and developed by our factory which adopts advanced automatic PLC control, combing with photoelectric, close positioning, pneumatic and electric servo systems and etc. It has advantages of high accuracy, easy operation, simple maintenance and so on.
♥ Contact information:
If there is any questions and requirements about our brick making machine, please don't hesitated to contact me.
