Hollow Or Solid Red Brick Making Machine
- 10 Set / Sets per Month
- Qingdao
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Paving Block Making Machine | Brick Raw Material: | Clay |
Processing: | Brick Production Line | Method: | Vacuum Extruder | Automatic: | Yes |
Capacity: | 6000-22000 pieces per hour, 6000-22000 pieces per hour | Place of Origin: | Henan, China | Brand Name: | Lantian Mechanical Plant |
Model Number: | brick making machine 40,45,50,60 | Voltage: | 380 V | Power: | 55-132 kw |
Dimension(L*W*H): | According to type | Certification: | CE, ISO9001, BV | Warranty: | 2 Years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Hollow or solid red brick making machine1. High quality,long lifetime
2.Process clay,mud,shale into brick
3.Top quality
Hollow Or Solid Red Brick Making Machine
Introduction of red brick making machine:
The red brick making machine, on the basis of absorbing and introducing the experiences at home and aboard, designed by our factory, is new type red brick making machine. The series of red brick making machine is taking clay, shale, coal gangue, fly ash, mountain mud, silt, industrial tailings, sludge, etc. as raw materials, through crushing, mixing, red brick making machine to make prescriptive cross-section of ordinary solid bricks, hollow brick and other products for building. Using the technology of our this red brick making machine can recycle the wastes, save energy and reduce consumption, which has the obvious economic benefits and social benefits.
The kiln for baking bricks:
The outlet bricks from red brick making machine:
The performance and features of red brick making machine:
1.Low noise when the machine working, low power consumption.
2.Automatic machine. After setting the size and strength of bricks, if the outlet bricks can’t reach the setted requirement, the unqualified bricks will return to the stock bin, after mixed, they will be pressed to the good bricks.
3.The machine adopts wear-resisting metal powder spray technology: the stirring shaft, twisted axis and body are processed by long time quenching.
4.The gear reducer is hard tooth face, and the clutch uses screw pressing patented technology, which improve the lifetime of our machine.
5.Reasonable design, compact structure, it can stable running without installing foundation bolts.
6.This machine can make solid bricks, big hole and large section of hollow bricks.
7.High efficiency, high extruding pressure, quick, convenient and reliable.
Foreign customer visiting our factory to see the red brick making machine:
1. After visiting our factory and our customers factory, we can talk about the details of the deal, choose types of brick making machine according to your requirement on capacity.
2. When customers coming, we can provide working site of clay brick making machine to see how the machines working and how is the process.
3. After you order our machines, our factory can provide professional technician go abroad and help to install the red brick making machine, teach your worker to operate the machine, impart the skills of brick making, make sure you can produce perfect bricks.
Specification of red brick making machine:
Type | Capacity (pic/h) | Moisture Content | Reamer Diameter | Spindle Speed | Motor Power |
JZK40-40-3.0 | 8000-10000 | 18%-22% | 400 mm | 45 r/min | 90 or 110 kw |
JZK45/45-3.5 | 10000-13000 | 18%-20% | 450 mm | 36-40 r/min | 45 kw + 110 kw |
JZK50/50-3.5 | 12000--16000 | 18%-20% | 500 mm | 28-34 r/min | 55 kw +132kw |
JZK60/60 | 18000-22000 | 18%-20% | 600 mm |
| 75kw + 220 kw |

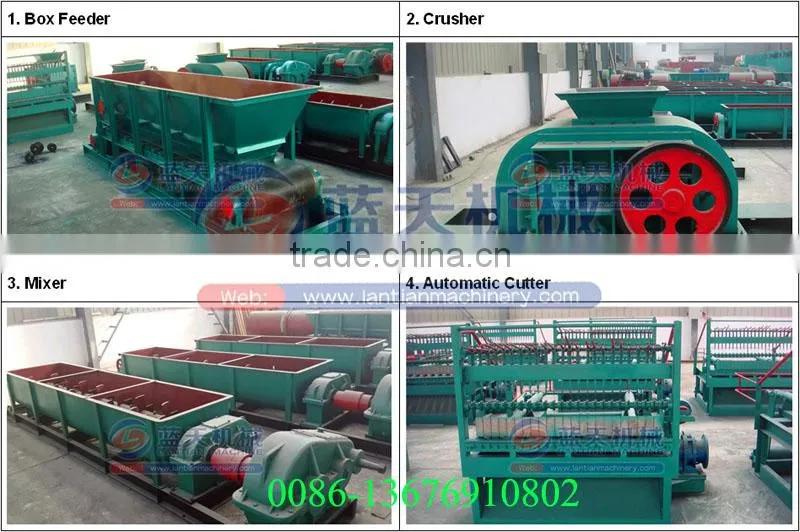

Other machines for red brick making machine:
1. Box feeder of red brick making machine:
Box Feeder is the feeding equipment which is used to balance and ration during brick producing. It is applicable to various bulk and block materials with controllable feeding speed and feeding quantity. It is the first part of red clay brick making machine.
2. High speed crushing machine of red brick making machine:
High Speed crushing machine and wear on the roller machine is also a raw material crushing, squeezing, grinding equipment. The advantages of the device is low power, reasonable price, suitable for crushing clay raw materials. It is the second step of red brick making machine.
3. Double-shaft mixer of red brick making machine:
Double-Shaft Mixer is used to mix water with crushed raw materials, increase the comprehensive quality of raw materials, greatly improve appearance quality and ratio of forming, thus it is indispensable raw material processing machine for red clay brick making.

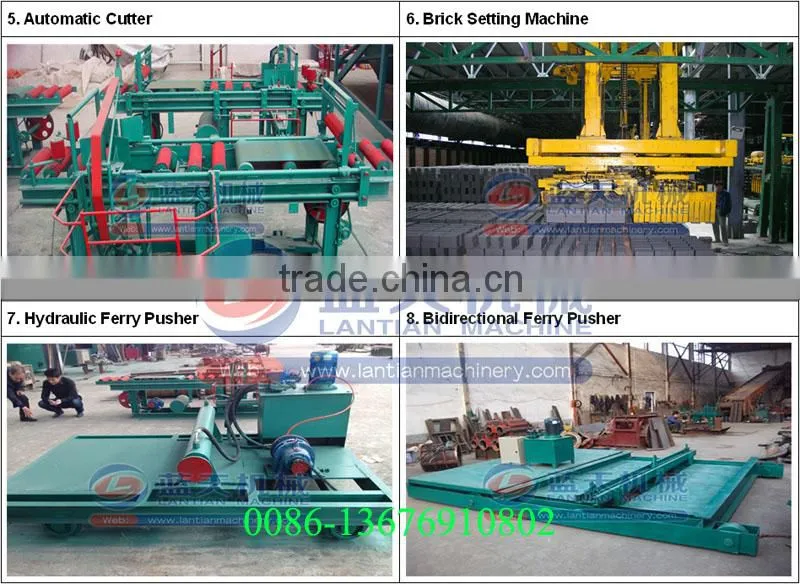

4. Strip cutting and blank cutting machine of red brick making machine:
Strip Cutting and Blank Cutting machine is mainly used to cut mud which is squeezed from extruder into qualified red clay brick during sintering brick production. The cutter is the new vertical strip cutting and blank cutting system designed and deceloped by our factory which adopts advanced automatic PLC control, combing with photoelectric, close positioning, pneumatic and electric servo systems and etc. It has advanage of high accuracy, easy operation, and simple maintenance an so on.
6. Brick setting machine of red brick making machine:
The automatic brick setting machine is mainly used for automatically setting the adobe in firstly yard burning tunnel kiln and secondary yard burning tunnel kiln. This device is controlled by cabinet and lifted by hydraulic lift, which has the features of high efficiency, saving manpower, easy maintenance, lowering cost, stable running and reliable.
7. Hydraulic ferry pusher of red brick making machine:
The hydraulic ferry pusher is mainly used for transmitting drying car. This machine adopts synchronous motor, conversion running, outage, electric brake and single device, which can achieve the functions of ferrying, pulling and pushing. This machine is of reliable running and easy operation, which saves manpower and investing cost, and increase the production efficiency.
8. Bidirectional ferry pusher of red brick making machine:
The machine is the auxiliary equipment used for tunnel type drying room in sintering brick and tile factory. It adopts Bidirectional hydraulic cylinder pusher, synchronous motor, conversion running, outage, electric brake, which are safe and reliable and has the features of convenient adjustment of thrust, fast pushing speed, steady braking, convenient maintenance and high pushing efficiency.

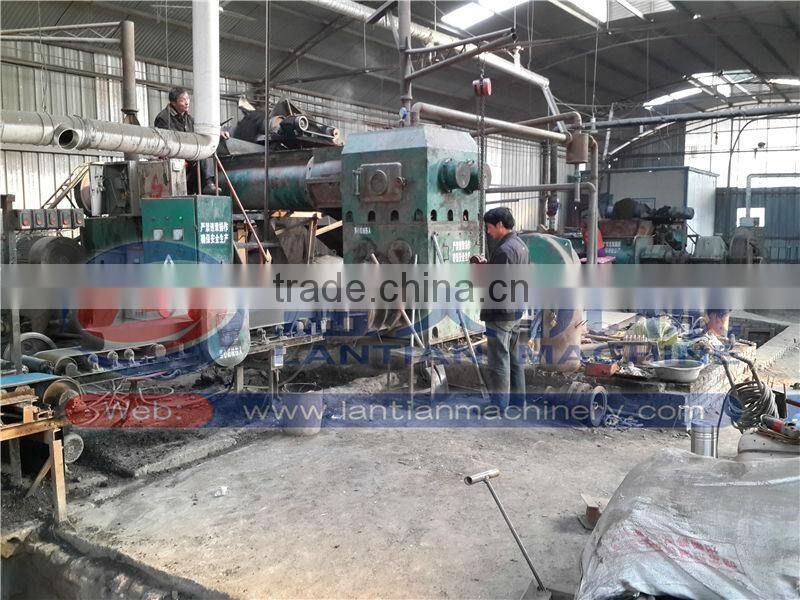

On-site photo of red brick making machine:
Our factory provide site visit of our red brick making machine for customer, this will makes brick making easy to understand. When you come, you can see every steps clearly.
Exporting of red brick making machine:
Usually we deliver the brick making machines within 25 days after receive your down payment, the shipping agent can be yours or we arrange everything for you.
The service:
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.
5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our red brick making machine can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.
About us:
Gongyi Lantian Mechanical Plant is a professional factory to produce all kinds of briquette machines. It was founded in 1980s. Through 30 years' development, it stands out in briquette machine industry. Our briquette machines include ball press machine, honeycomb briquette machine, coal/charcoal extruder machine, shisha briquette machine, biomass briquette machine, brick making machines, pellet machine etc., and all necessary auxiliary machines. Apart from all kinds of briquettes machines, we also produce carbonization furnace, all kinds of crushers, dryers, mixers,etc.
We’ve got CE, ISO certificate for our machines. And our machines has been sold to Indonesia, Sadi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakistan, Kuwait, Turkey, Egypt and others.
The contact information:
If there is any interest in our machines, please feel free to contact me.
