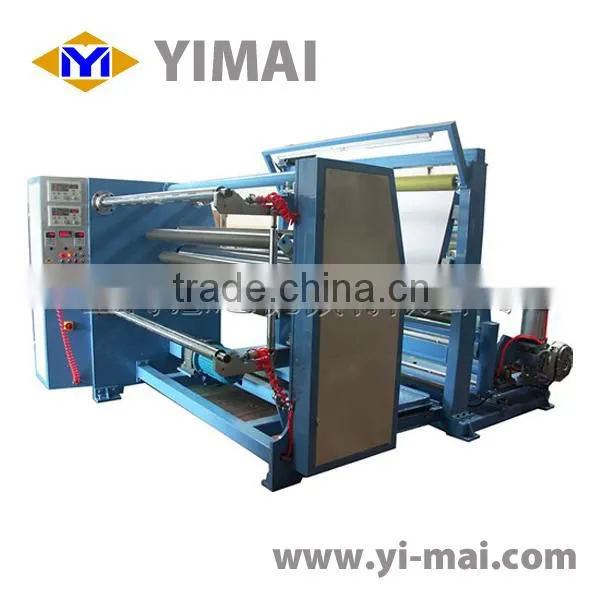

Help CenterLeather Slitting Machine
Related Products
Application:
This machine used to inspect and cut the roll of non-woven , PVC forming artificial leather into the strips then rewind it.
Features:
1.Independence unwind, automatic loading.
2.Inspect board and light cover.
3.Automatic tension controller for unwind,semi-taper tension controller for rewind.
4.Unwind with photoelectric web guiding system ,DC motor drive(EPC).
5.Rewinding with two shafts up and down, center drive.
6.Shear round cutter and extrusion air cutter (select).
7.Steel plate frame,surface spray with plastic.
8.Assist unload device.
Main specification:
Item |
Parameters |
|
Material width (mm) |
1300 |
1800 |
Min slitting width (mm) |
≥50 |
|
Max diameter of unwind(mm) |
1200 |
|
Max diameter of rewind (mm) |
700 |
|
Rewind speed (m/min) |
6~60 |
|
Power supply (kw) |
8 |
|
Subtense sensitivity (mm) |
≤±1.5 |
|
Dimension (cm) |
360x250x230 |
360x290x230 |
FAQ:
1.Q: Are you a factory or trading company?
A:We are a factory and manufacturer.
2.Q: Where is your factory located? How can I visit there?
A:Our factory is located in BaoShan District,Shanghai, China. You can fly to Shanghai Pudong airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q: Could you send me your samples?
A: We are honored to receive your samples for Slitting or Laminating test ,then send to you back.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. YIMAI people always attach great importance to quality controlling from the very beginning to the very end.
