Specifications
marine antenna ku 60cmThe product can be installed on fishing vessels, merchant ships, drilling platforms and other mobile
ANHUI RISESAT ELECTRONIC CO.,LTD

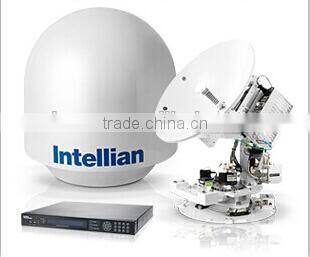

2014 hot product marine antenna ku 60cm
1. GENERAL DESCRIPTION
The product can be installed on fishing vessels, merchant ships, drilling platforms and other mobile carriers. It can capture and track satellite in real time while stopping or moving to achieve TV signal uninterrupted. The system which adopts the integrated tracking technology of the low-cost and high-precision navigation system and satellite signal can automatically locate, search, capture and track satellite. 60cm parabolic antenna gain and scope of use is wide. It is applicable to linear polarized satellite.
2. FEATURES
1) The integrated navigation system composed by the high-precision IMU and high-precision GPS location and orientation provides high accuracy attitude data and position information.
2) Integration of high-precision signal tracking technology to ensure reliable tracking.
3) The time for starting to capture the satellite in a dynamic environment is the same as that in a static environment.
4) The satellite signal in tracking state still points to satellite by shielding antenna within a short time to ensure shelter into tracking state fast.
5) The circuit board processes 3-proofing, moisture proofing, salt spray proofing and fungus proofing.
6) You can manually switch satellite by a hand-held instrument to set LNB satellite information. Flexible and easy to use
Item |
Parameters |
|
Antenna |
Antenna structure |
Parabolic antenna |
Diameter |
60cm |
|
Satellite band |
Ku |
|
Downlink frequency |
950 MHz~2150 MHz |
|
Polarization mode |
Linearly polarized |
|
Antenna gain |
36.5dB |
|
Control system |
Azimuth tracking mode |
Stepper motor-controlled tracking |
Pitch tracking mode |
Stepper motor-controlled tracking |
|
Polarization tracking mode |
Stepper motor-controlled tracking |
|
Azimuth tracking range |
680° |
|
Pitch angle tracking range |
0-120° |
|
Polarization angle tracking range |
±90° |
|
Azimuth tracking angle rate |
50°/s |
|
Pitch angle tracking angle rate |
50°/s |
|
Polarization angle tracking angular rate |
30°/s |
|
Capture time |
Less than 1 minute |
|
Electrical Characteristics |
Operating voltage |
DC24V |
Power consumption |
Less than 30W |
|
Signal output |
RF75Ω(British system) |
|
Operating Temperature |
-30°C~60 °C |
|
Physical characteristics |
Weight |
20 kg |
Diameter x height |
70 cm x72 cm |
|
Installation mode |
Screw fixation |
|
.
welcome to visit our factory
contact skype; risesat
