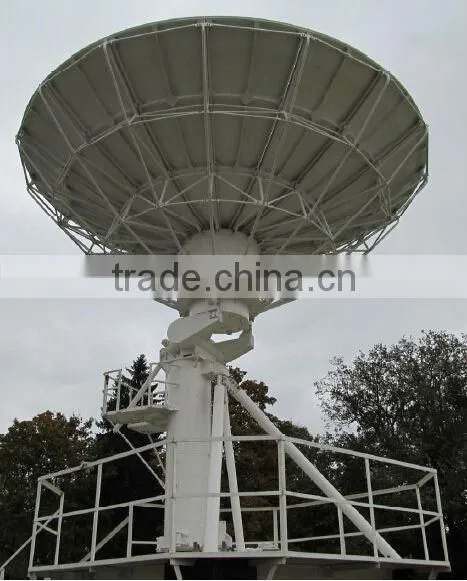

6.2m C BAND TX RX VSAT ANTENNA Motorised

Name: 6.2m C BAND TX RX VSAT ANTENNA Motorised
Brand: risesat
SKU: 126336011

US$ 1 - 31,965 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

risesat

Model Number:

RS-VS62II

Anhui Risesat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name risesat

Model Number RS-VS62II

Specifications

6.2m TX RX vsat antenna
1) C-Band and Ku-Band are available
2) Fashionable design,easy installation and adjustment
3)factory

Product Description

1) C-Band and Ku-Band are available

2) Fashionable design,easy installation and adjustment

3) Well in anti-corrosion

4) Excellent in stability

5) Customised product

Electrical Specification

Model			RS-VS(C)-62I			RS-VS(Ku)-62II
			C-band			Ku-band
			RX		TX	RX	TX
Frequency, GHz			3.4~4.2		5.85~6.725	10.95~12.75	13.75~14.5
Gain,Mid-band, dBi			46.5		50.3	56	57.4
Cross polarization Isolation			≥35dB		≥35dB	≥35dB	≥35dB
Pol			Line / circularity			Line
Axis ratio	2-Port Feed 4-Port Feed		1.30 1.06		1.09 1.06
Standing Wave Ratio			1.25		1.25	1.25	1.25
Yawp temperature (2-Port Feed)	10°elevation 30°elevation 50°elevation		35°K 25°K 22°K			50°K 39°K 36°K
-3dBBWave width, Mid-band			0.83°		0.54°	0.27°	0.23°
G/T			28.4dB/°K ( 30° LNA )			35.2dB/°K ( 70° LNA )
Feed loss, dB			0.2		0.2	0.25	0.2
Power Conten, KW					5		2
Interface			CPR-229G		CPR-137G	WR-75	WR-75
Mechanical Specification
Size					6.2 m
Type					Ring focus
Kingpost					Az / El
Driver model					Manual/electromotion
Weight					2760 kg
Power wastage(electromotion)					0.75kw
RMS					≤0.5mm
Turn range		Az El Pol			±95°, ±65 ° (continuum) 0°~90° (continuum) 360° (continuum)
Motor Drive System		AzTravel Rate ElTravel Rate Pol			0.1°/S ( 0.02°/S ) 0.1°/S ( 0.02°/S ) 1°/S
Environment Specification
Wind speed of work				72km/h flurry97km/h
Wind speed of surviva				216km/h
Temperature				-40°C ~ + 60°C
Relative humidity				100%
Sun radiation				1135Kcal/ h/ m2
Earthquake				0.3g level,0.15g plumb
Ice or snow load				13mm work;25mm survival
