Specifications
Satlink WS6932 Satellite Finder Meter1.4.3 Inch HD TFT LCD Screen
2. HD Mpeg4 DVB--s2
3.8PSK AND QPSK.
4.Shows S/N and C
Fully DVB-S/DVB-S2
H.264 Hardware decoding
Input Frequency :950~2150MHz
Input Level: -65~ -25dBm
Input Impedance :75Ω
Constellation analyzer
Spectrum analyzer
Measurement Type: signal strength,quality; BER; S/N;PWR
Search Mode: Auto,Blind,Manual,NIT
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Support DISEQC 1.0,1.1,1.2 and 22khz Tone
LNB Power Supply:18/13V(IMax 400mA)
Support both AV out and AV in
Speaker Integrated
8.4V/3000mAh Lion Battery Included
Max Operating Time:4 hours
12V/1.5A DC Adapter
Spectrum Analyzer
Constellation diagram measurement
Unicable SCR measurement
DiSEqC 1.0, 1.1, 1.2
Transponder / satellite manager
Keyboard illumination
AV & A-output
see more properties
Unicable SCR measurement
SCR 1-8, with 12 selectable frequencies:
1210, 1284, 1400, 1420, 1516, 1632, 1680, 1748, 1864, 1980, 2040, 2096 MHz

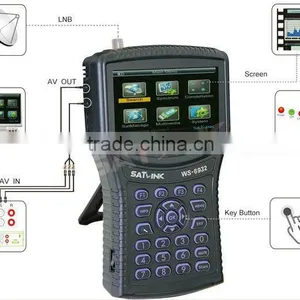

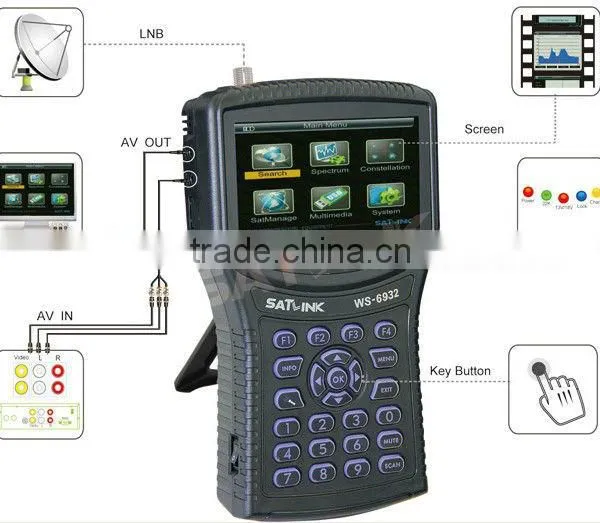

AV-IN & OUTPUT
The Satlink WS-6932HD can be connected as a standard receiver to a TV set. In addition, the device has an AV input. At this, other players or AV surveillance cameras to be connected!
Multimedia Player
Representation of stored photos in JPG format and play MP3 files from your own USB stick!
PC software
properties:
Frequency range: 950 - 2150 MHz (DVB-S)
16:9 color TFT LCD display with 4.5 "/ 11cm diagonal
Backlit keyboard (burn time 5,10,20 seconds or turn off)
Flashlight function
Built-in speaker
Angle calculation of azimuth, elevation and LNB tilt (after entering the coordination own data)
spectrum Analyzer
constellation diagram
Display the signal strength in percent and as a bar
Display of BER
Display of C / N
Display of signal level in dBmV
Unicable SCR measurement
DiSEqC 1.0 or DiSEqC switches for multi-switch
DiSEqC 1.1 DiSEqC switches for control / 1-8 LNB
DiSEqC 1.2 motor control
Automatic Channel Search TV and radio
Reception and playback of DVB-S + S2 TV programs
Reception and playback of DVB-S + S2 radio programs
EPG (electronic program guide)
Format conversion 4:3 or 16:9
AV Output: Using the adapter cable can be connected to the device to the TV and receiver are used as normal
AV Input: for connecting external devices such as Video cameras.
Data transfer via USB memory stick:
- Firmware Updates
- Backup your own settings
- Restore the custom settings
- Satellite and save lists on the PC to edit
- Satellite lists again transferred to the device
- For viewing photos and playing MP3 files from USB memory stick
Built-in, easily replaceable 3000mA / h LION-Power Battery for 3-6 hours of operation
u.v.m.
