Specifications
1.SMC Type MBB Standard Pneumatic Cylinder-Double Acting Cylinder2.Good quality and competitive price
3.1 year warranty

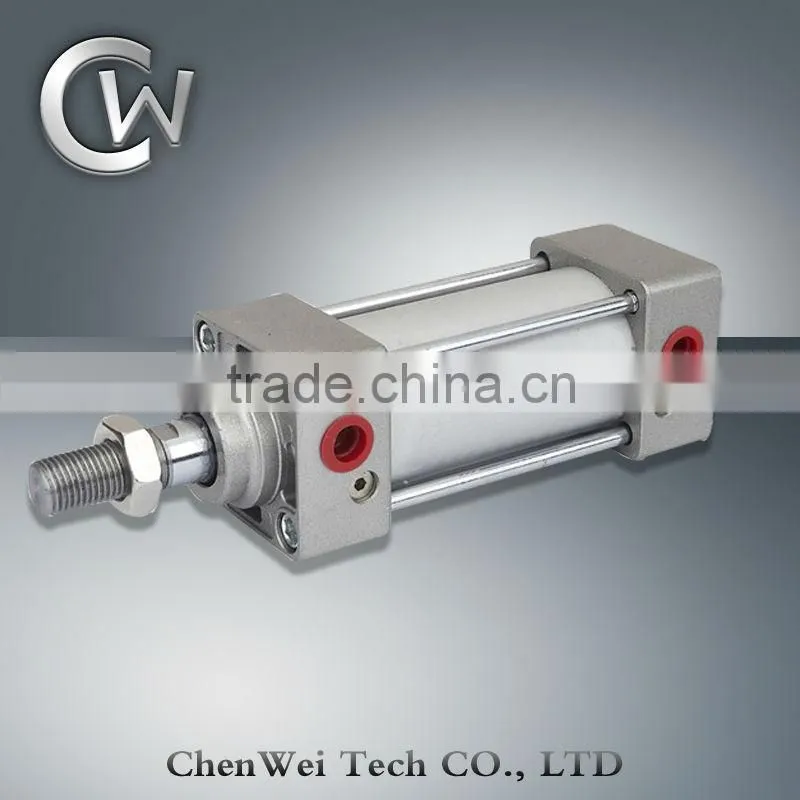

SMC Type MBB Standard Pneumatic Cylinder-Double Acting Cylinder
Features:
1) MBB tie rod pneumatic cylinder normal bore size from 32mm to 100mm.
2) Mounting dimension is according to SMC standard.
3) Provided with adjustable buffer on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.
4) Spray painted cylinder head and internal hard anodized cylinder body
5) Single or double piston rod ends available
6) With self lubricating bearing,the piston rod is lubrication free.
7) Magnet and sufficient fixing style are available.
8) Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.
How to Order:
Specification:
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT2/1 |
| Action | Double Action, single rod/double rod | |||||
| Working Fluid | Filtered Compressed Air | |||||
| Working Pressure | 0.05~1.0MPa | |||||
| Proof Pressure | 1.5MPa | |||||
| Working Temperature | ~10-70 °C | |||||
| Cushion | Adjustable Cushion at bith ends | |||||
| piston rod thread | M10X1.25 | M14X1.5 | M18X1.5 | M22X1.5 | M27X2 | |

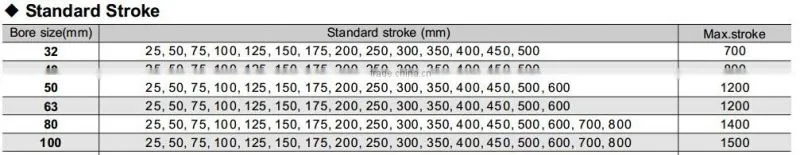

Standard Stroke:
Main Material:
| No | Description | Material |
| 01 | Cylinder Tube | Aluminium Alloy |
| 02 | Piston | Aluminium Alloy |
| 03 | Piston Rod | Middle Carbon Steel |
| 04 | Front Cover | Aluminium Alloy |
| 05 | End Cover | Aluminium Alloy |
| 06 | Front Cover Seal | NBR |
| 07 | Piston Seal | NBR |
| 08 | Cover Gasket | NBR |
| 09 | Piston Rod O-ring | NBR |
| 10 | Cushion Gasket | NBR |
| 11 | Bush | Oil Powder Copper |
| 12 | Tie Rod | Low Carbon Steel |
| 13 | Tie Rod Nut | Low Carbon Steel |

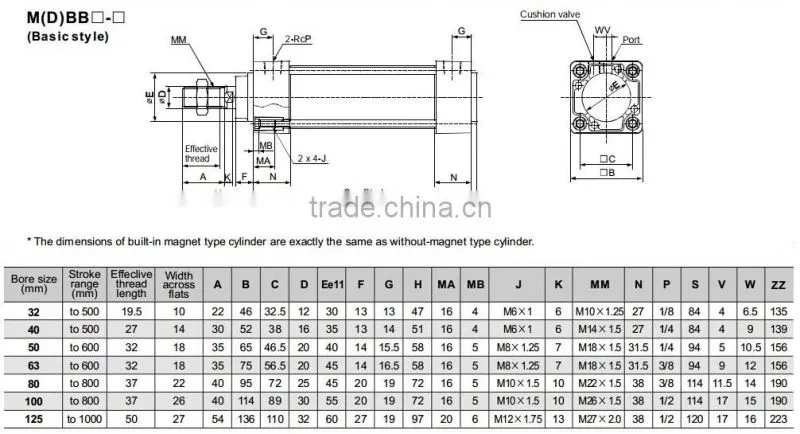

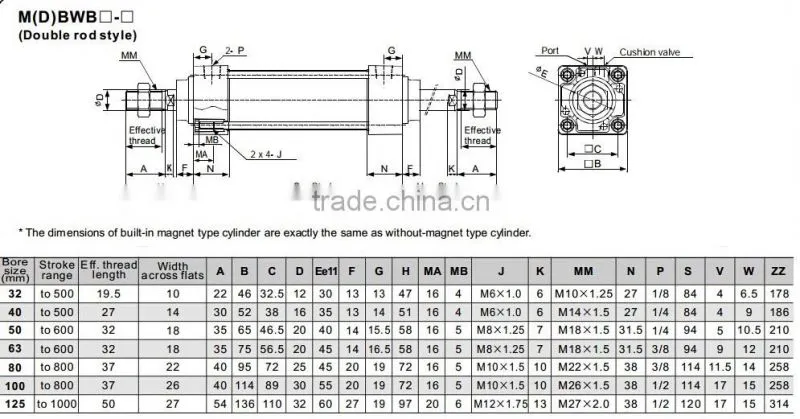

Dimensions and Sizes:
