Specifications
1:MGPM Series Guide Rod Compact Cylinder2:Three axis and bore size from 12 to 63 mm.
3:With Rubber Bumper
4:one year gua

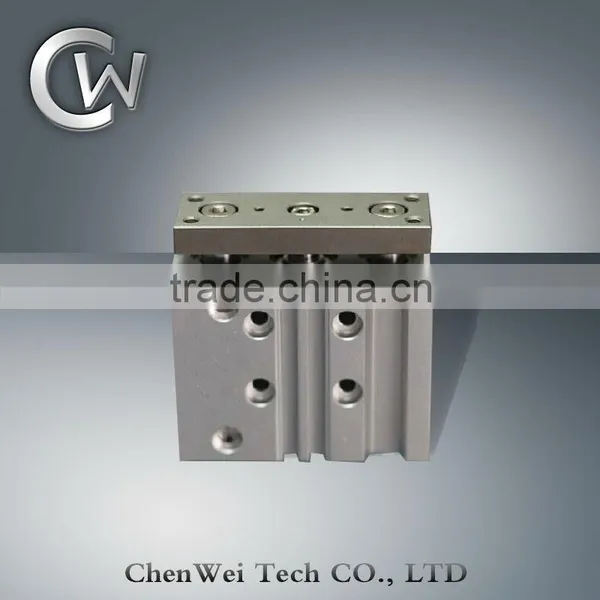

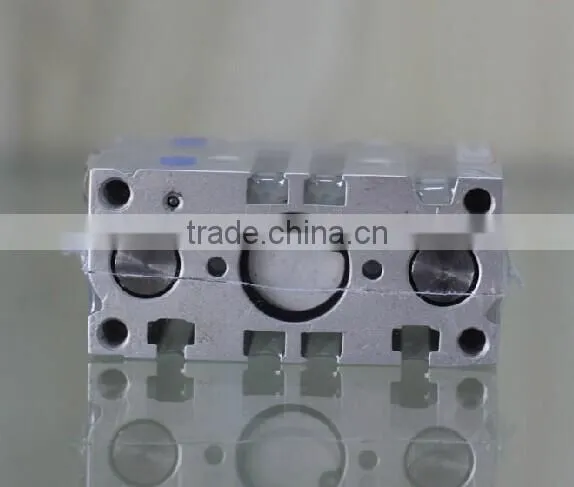

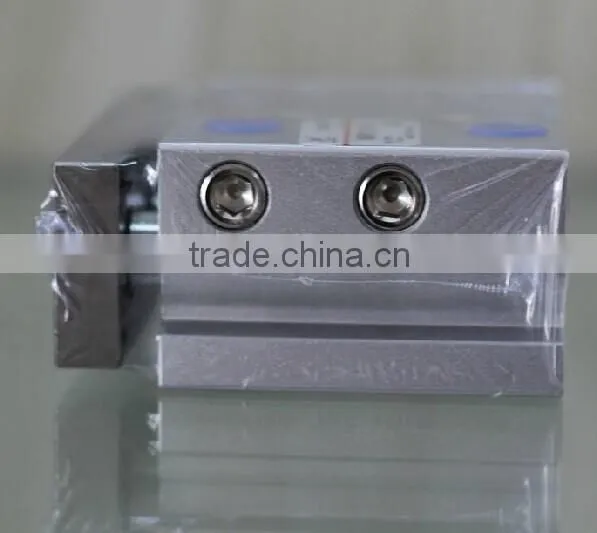

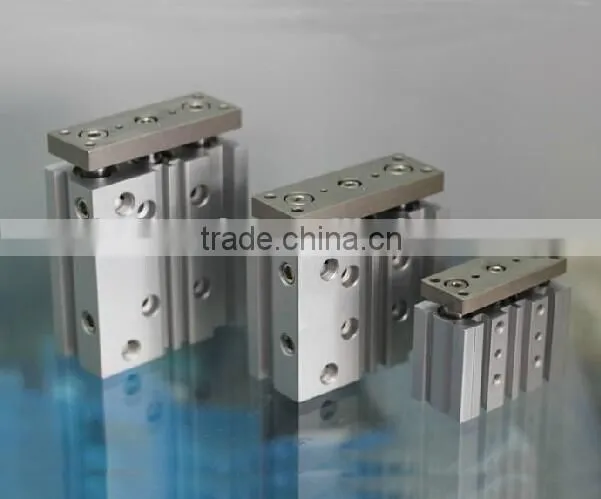

MGPM Series Guide Rod Compact Cylinder
Features:
1.MGP Series Air Cylinders.
2.Equivalent to SMC MGP Series Air Cylinders, with the same appearance.
With guide rod..
3.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.
4.Double acting, Single rod
5.Rubber bumper.
6.Built-in magnet is standard.

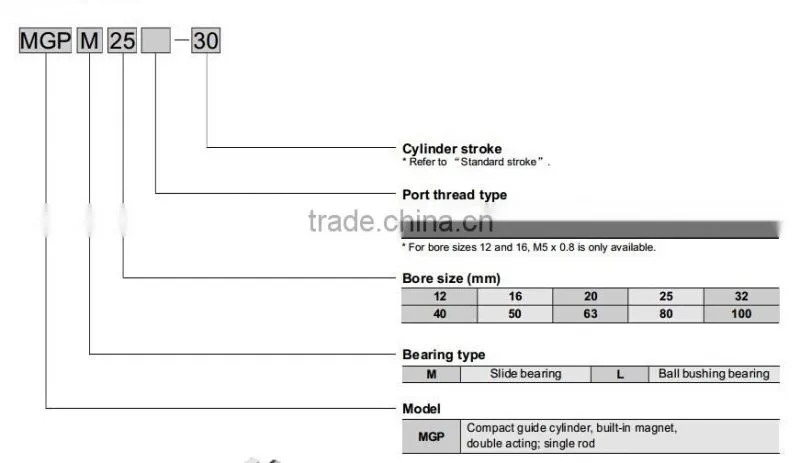

How to Order:
Specification:
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Fluid | Filtered air | |||||||
| Action | Double acting, single rod | |||||||
| operating pressure | 0.12~1.0MPa | 0.1~1.0MPa | ||||||
| Proof pressure | 1.5 MPa | |||||||
| working temperature | -10 to 60°C (No freezing) | |||||||
| Cushion | Rubber bumper | |||||||
| Lubrication | Non-lubrication | |||||||
| Port size | M5x0.8 | G1/8 | G1/4 | |||||
Standard Stroke:
| Bore(mm) | Standard stroke |
| 12~16 | 10, 20, 30, 40, 50. 75, 100, 125, 150, 200, 250 |
| 20~25 | 10, 20, 30, 40, 50. 75, 100, 125, 150, 200, 250, 300, 350, 400 |
| 32~ 63 | 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400 |
Main Mterial:
| o | Description | Material |
| 01 | Cylinder Body | Aluminium Alloy |
| 02 | Piston | Aluminium Alloy |
| 03 | Piston Rod | Carbon Steel |
| 04 | Guide Rod | Carbon Steel |
| 05 | Guide Plate | Carbon Steel |
| 06 | Guide Plate Mounting Nut | Carbon Steel |
| 07 | Cushion Gasket | Polyurethane |
| 08 | Slide Bearing | Powder Metallurgy |
| 09 | Steel Ball | Carbon Steel |
| 10 | Piston Seal | NBR |
| 11 | Rod Seal | NBR |
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
