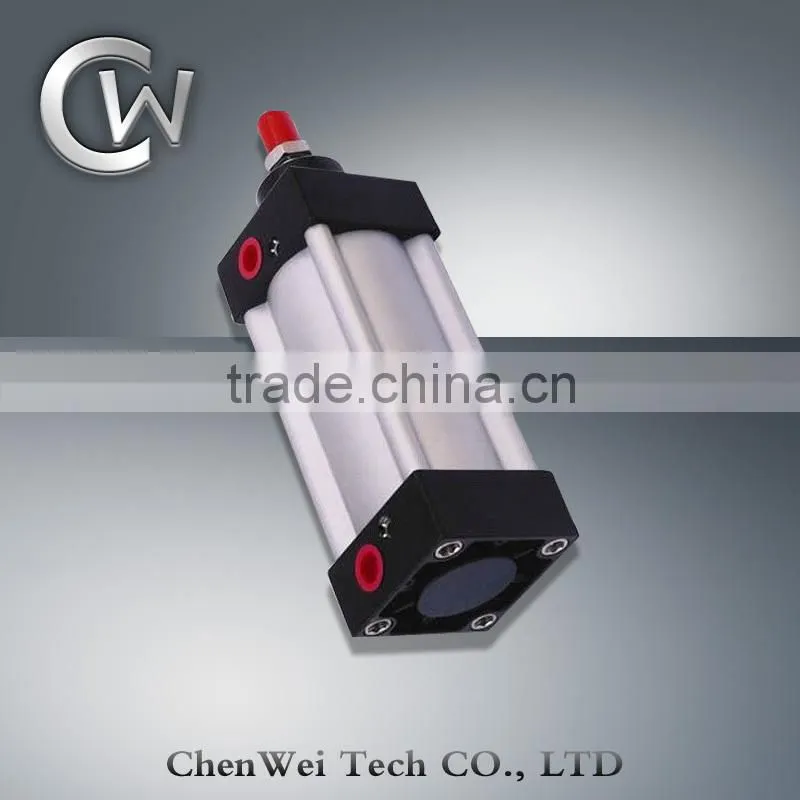

SI series ISO6431 Standard Pneumatic Cylinder-AIRTAC Cylinder

Specifications

1.SI series ISO6431 Standard Pneumatic Cylinder-AIRTAC Cylinder
2.Good quality and competitive price
3.Magnet: optional



SI series ISO6431 Standard Pneumatic Cylinder-AIRTAC Cylinder

Features:

1).Normal bore size from 32mm to 200mm,bigger size from 250mm to 400mm can also be provided.

2).Provided with adjustable cushion on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.

3).Spray painted cylinder head and internal hard anodized cylinder body.

4).With self lubricating bearing,the piston rod is lubrication free.

5).Magnet and sufficient fixing style are available.

6).Precision grinding piston rod,cylinder parts were processed by high precision CNC machine and good seals to guarantee good action and long lifetime.

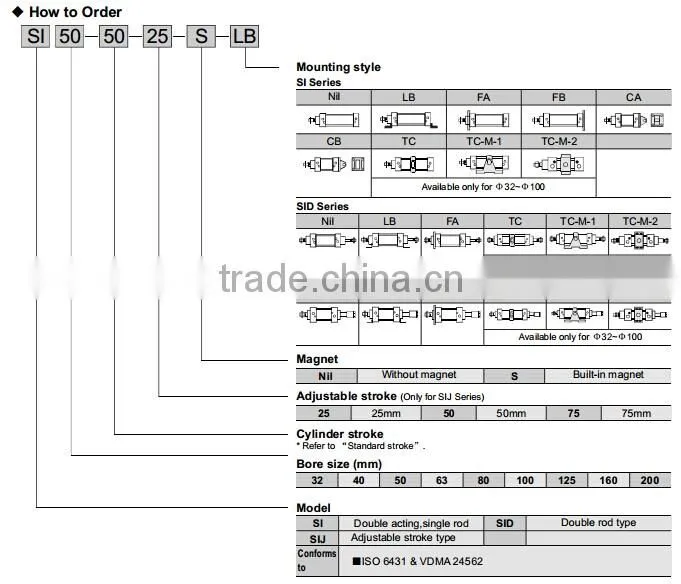

How to Order:

Specification:

Bore (mm)	32	40	50	63	80	100	125	160	200
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT3/8	PT2/1	PT1/2	PT3/4	PT3/4
Action	Double Action
Working Fluid	Filtered Compressed Air
Working Pressure	0.1-0.9MPa
Proof Pressure	1.5MPa
Working Temperature	~5~70 °C
Cushion	Adjustable Air Cushion at both ends
Piston rod thread	M10X1.25	M12X1.25	M16X1.5		M20X1.5		M27X2.0	M36X2.0



Standard Stroke:

Bore(mm)	Standard stroke	Max. stroke	Permit. stroke
32	25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000



Main Material:



No	Description	Material
01	Cylinder Tube	Aluminium Alloy
02	Piston	Aluminium Alloy
03	Piston Rod	High Carbon Steel(Chrome Plated With Attrition Treatment)
04	Front Cover	Aluminium Alloy
05	End Cover	Aluminium Alloy
06	Front Cover Seal	NBR
07	Piston Seal	NBR
08	Cover Gasket	NBR
09	Piston Rod O-ring	NBR
10	Cushion Gasket	NBR
11	Bush	Oil Impregnated Powder Copper
