Specifications
1:MGPM SeriesThree Shafts Pneumatic Cylinder2:Three axis and bore size from 12 to 63 mm.
3:With Rubber Bumper
4:one year gua

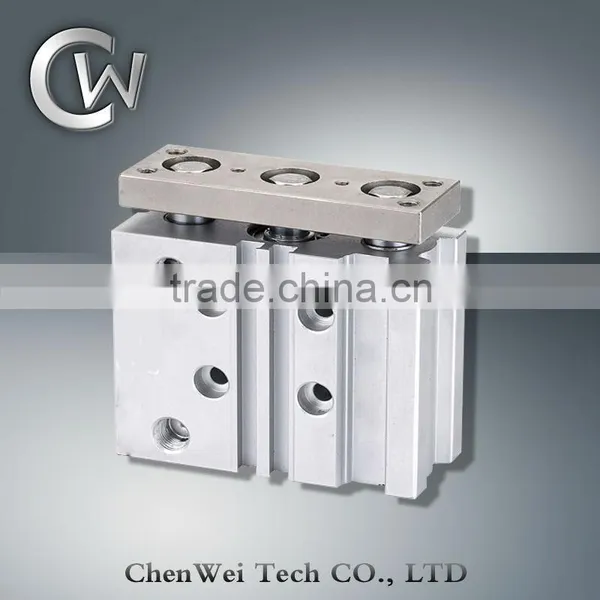

MGPM SeriesThree Shafts Pneumatic Cylinder-SMC type
Features:
1) Three shaft with good anti-bend performance and guarantee long life cycle and correct direction
2) With magnet and suitable slot is designed for magnetic sensor fixing
3) Embedding mounting and no need other brackets,room saving
4) Two types slide bearing MGPM and ball bearing MGPL are optional
5) With self lubricating bearing,the piston rod is lubrication free.
6) Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.
How to Order:
Specification:
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Fluid | Filtered air | |||||||
| Action | Double acting, single rod | |||||||
| operating pressure | 0.12~1.0MPa | 0.1~1.0MPa | ||||||
| Proof pressure | 1.5 MPa | |||||||
| working temperature | -10 to 60°C (No freezing) | |||||||
| Cushion | Rubber bumper | |||||||
| Lubrication | Non-lubrication | |||||||
| Port size | M5x0.8 | G1/8 | G1/4 | |||||
Standard Stroke:
| Bore(mm) | Standard stroke |
| 12~16 | 10, 20, 30, 40, 50. 75, 100, 125, 150, 200, 250 |
| 20~25 | 10, 20, 30, 40, 50. 75, 100, 125, 150, 200, 250, 300, 350, 400 |
| 32~ 63 | 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400 |
Main Mterial:
| o | Description | Material |
| 01 | Cylinder Body | Aluminium Alloy |
| 02 | Piston | Aluminium Alloy |
| 03 | Piston Rod | Carbon Steel |
| 04 | Guide Rod | Carbon Steel |
| 05 | Guide Plate | Carbon Steel |
| 06 | Guide Plate Mounting Nut | Carbon Steel |
| 07 | Cushion Gasket | Polyurethane |
| 08 | Slide Bearing | Powder Metallurgy |
| 09 | Steel Ball | Carbon Steel |
| 10 | Piston Seal | NBR |
| 11 | Rod Seal | NBR |
