Specifications
1.SMC Type C85 Series Pneumatic Mini Air Cylinder-ISO64322.According to ISO6432 standard.
3.1 year warranty
4.Bore:8~25mm
SMC Type C85 Series Pneumatic Mini Air Cylinder-ISO6432
Features:
1.C85 Series Mini Air Cylinder .
2.Conform to ISO6432 standard.
3.Equivalent to SMC C85 series air cylinder, with the same appearance.
4.Bore size(mm): 8, 10, 12, 16, 20, 25..
5.Double acting, Single/Double rod
6.Rubber bumper, or with adjustable air cushion at both ends(Option).
7.Built-in magnet is optional.
8.Cylinder kits, barrel, piston is available.

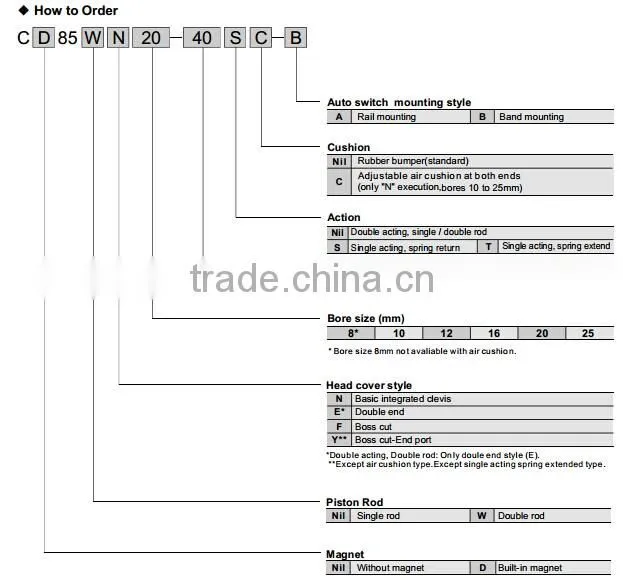

How To Order:
Specification:
| Bore size (mm) | 8 | 10 | 12 | 16 | 20 | 25 | |
| Fluid | Air | ||||||
| Action | C85 | Double acting, Single/Double rod | |||||
| C85-S/T | Single acting, Single rod, Spring return/extend | ||||||
| Minimum operating pressure | Double acting | 0.1 MPa | 0.08 MPa | 0.05 MPa | |||
| Spring return | 0.22 MPa | 0.18 MPa | 0.13 MPa | 0.18 MPa | |||
| Spring extend | 0.23 MPa | ||||||
| Maximum operating pressure | 1.0 MPa | ||||||
| Proof pressure | 1.5 MPa | ||||||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||||
| Cushion | Double acting | Rubber bumper | |||||
| - | Adjustable air cushion at both ends | ||||||
| Single acting | Rubber bumper | ||||||
| Lubrication | Non-lube | ||||||
| Piston rod dia. | 4 mm | 6 mm | 8 mm | 10 mm | |||
| Rod end thread | M4x0.7 | M6x1.0 | M8x1.25 | M10x1.25 | |||
| Port size | M5x0.8 | G1/8 | |||||

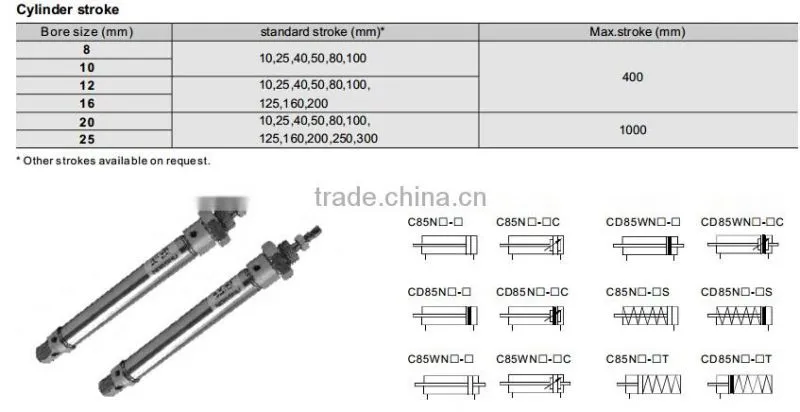

Standard Stroke:

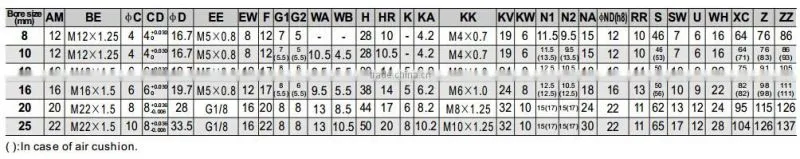

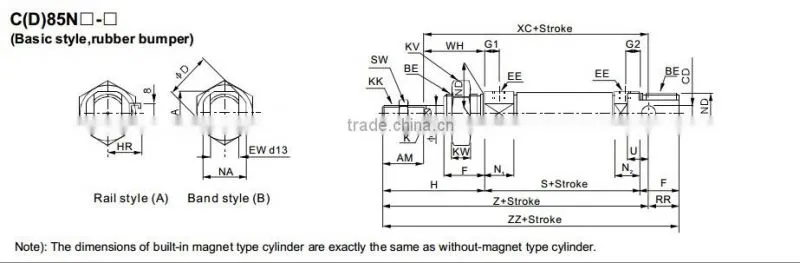

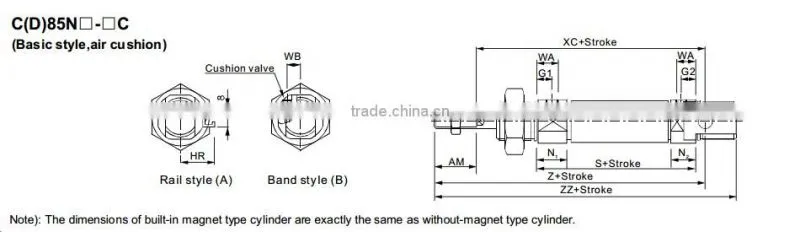

Dimensions and sizes
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
