Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > MA20X25mm Stainless Steel Pneumatic Mini Cylinder-Double Acting Pneumatic Cylinder

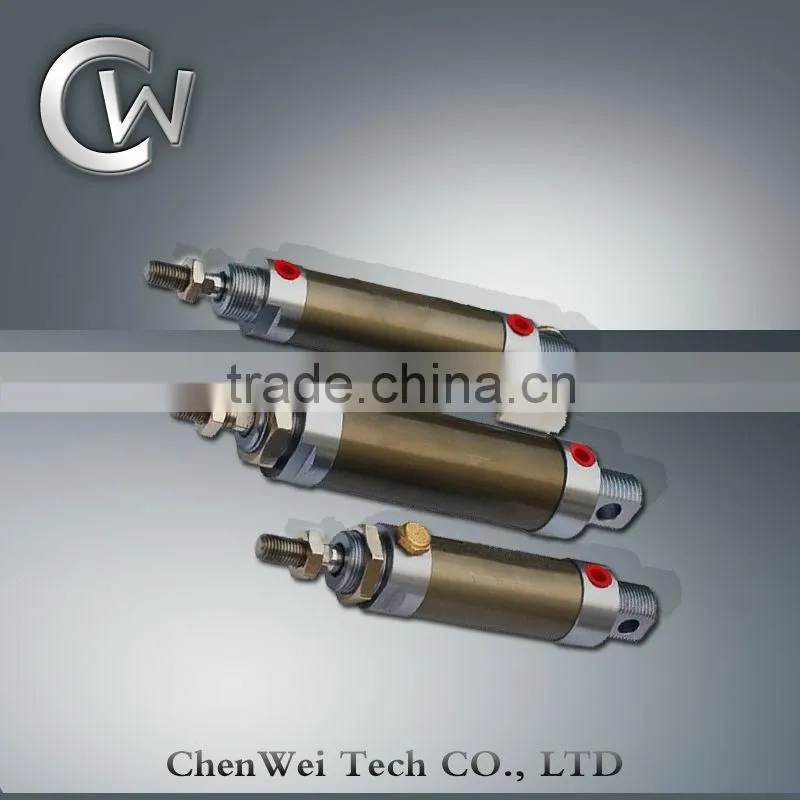

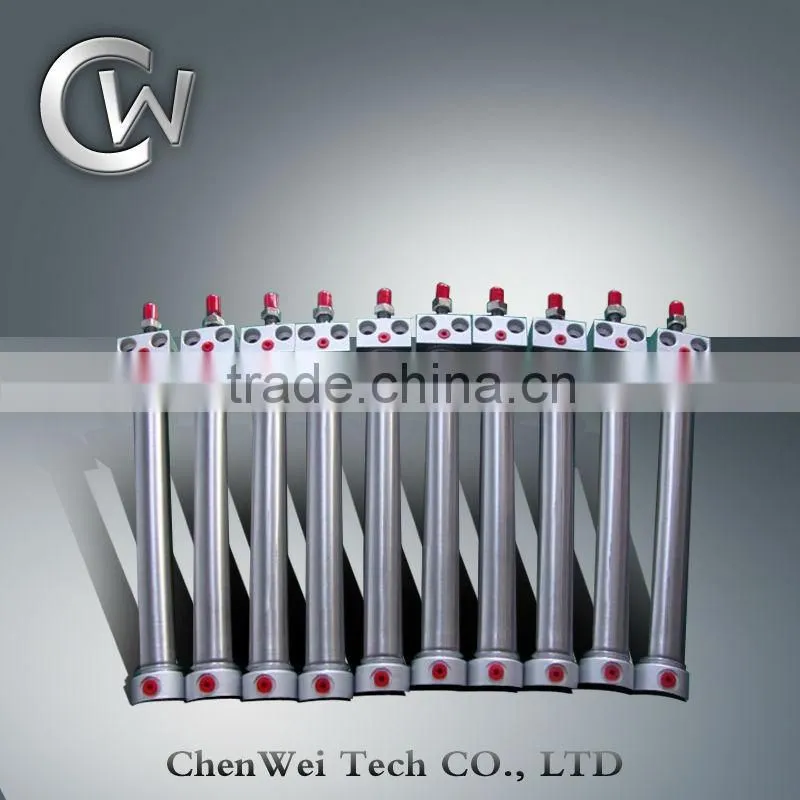

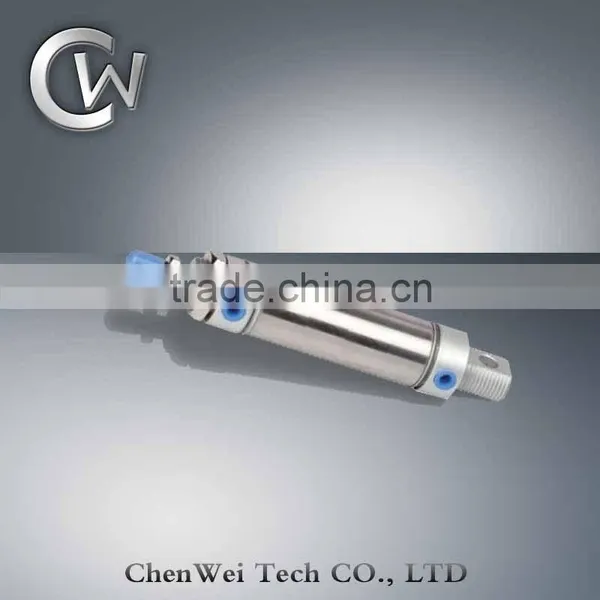

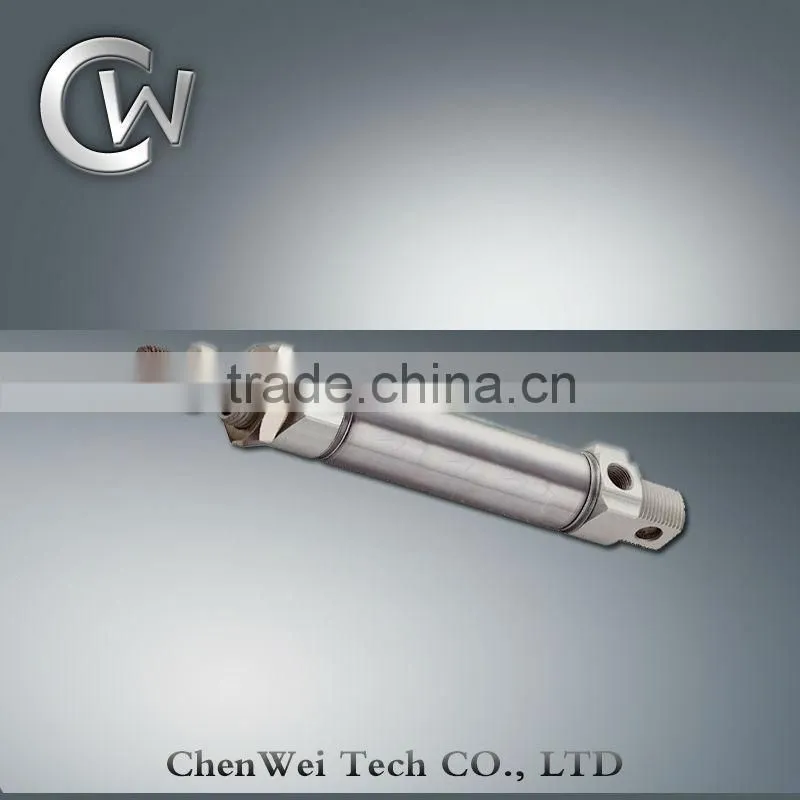

MA20X25mm Stainless Steel Pneumatic Mini Cylinder-Double Acting Pneumatic Cylinder

US$ 4 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Piston Cylinder

Power:

Pneumatic

Contact Supplier Request Quote Chat Now

Shanghai Chenwei Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Piston Cylinder

Power Pneumatic

Body Material Stainless Steel

Maximum Stroke 500mm

Shaft Diameter 6-16mm

Place of Origin Zhejiang, China

Model Number MA20X25mm

Brand Name CW

Specifications

1.MA20X25mm Stainless Steel Pneumatic Mini Cylinder-Double Acting Pneumatic CylinderPneumatic Cylinder
2.Equivalent to AIRTAC

MA20X25mm Stainless Steel Pneumatic Mini Cylinder-Double Acting Pneumatic Cylinder

Features:

1.MA Series Magnetic Cylinder Pneumatic .

2.Equivalent to AIRTAC MA Series Magnetic Cylinder Pneumatic , with the same appearance.

3.Bore size(mm): 16, 20, 25, 32, 40, 50, 63.

4.Double acting, Single/Double rod

5.Rubber bumper, or with adjustable air cushion at both ends(Option).

6.Built-in magnet is optional.

7.Cylinder kits, barrel, piston is available.

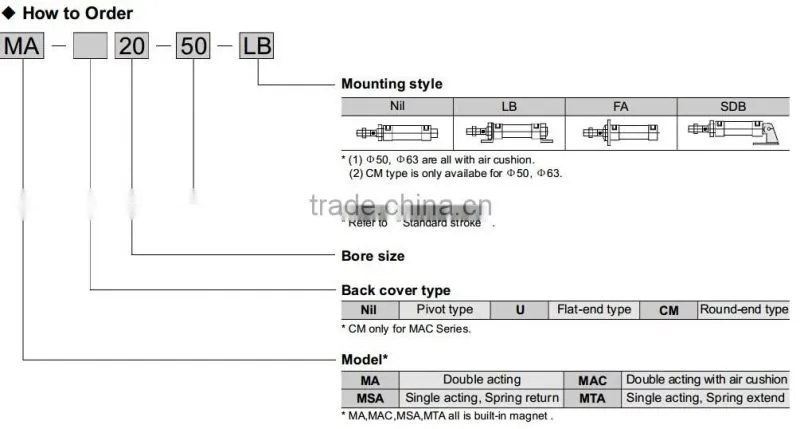

How To Order:

Specification:

Bore size (mm)		16	20	25	32	40	50	63
Fluid		Air
Action	MA/MAD/MAJ	Double acting, Single/Double rod					-
	MSA/MTA	Single acting, Single rod, Spring return/extend					-
	MAR	-	Double acting, Single rod
	MAC/MACD/MACJ	-	Double acting, Single/Double rod
Minimum operating pressure	Double acting	0.1 Mpa
	Single acting	0.2 Mpa
Maximum operating pressure		1.0 Mpa
Proof pressure		1.5 Mpa
Ambient and fluid temperature		-20 to 80°C (No freezing)
Cushion	MA/MAD/MAJ	Rubber bumper					-
	MSA/MTA	Rubber bumper					-
	MAR	-	Rubber bumper				Adjustable air cushion at both ends
	MAC/MACD/MACJ	-	Adjustable air cushion at both ends
Lubrication		Non-lube
Piston rod dia.		6 mm	8 mm	10 mm	12 mm	16 mm	16 mm	16 mm
Piston rod thread		M6x1.0	M8x1.25	M10x1.25		M12x1.25	M14x1.5
Port size		M5x0.8	1/8				1/4

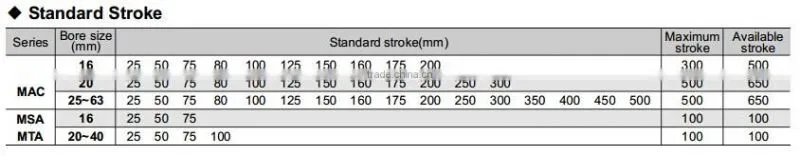

Standard Stroke:

Material:

No.	Description	Material	Note
1.	Cylinder barrel	Stainless steel	-
2.	Piston rod	High-alloy steel	Hard chrome plated
3.	Rod cover	Aluminum alloy	Clear anodized
4.	End cover	Aluminum alloy	Clear anodized
5.	Piston	Brass/Aluminum alloy	Chromated
6.	Seal	NBR	-

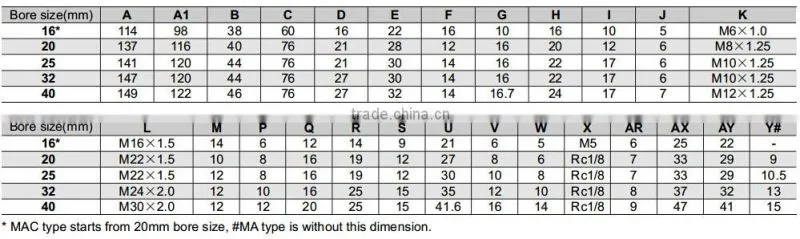

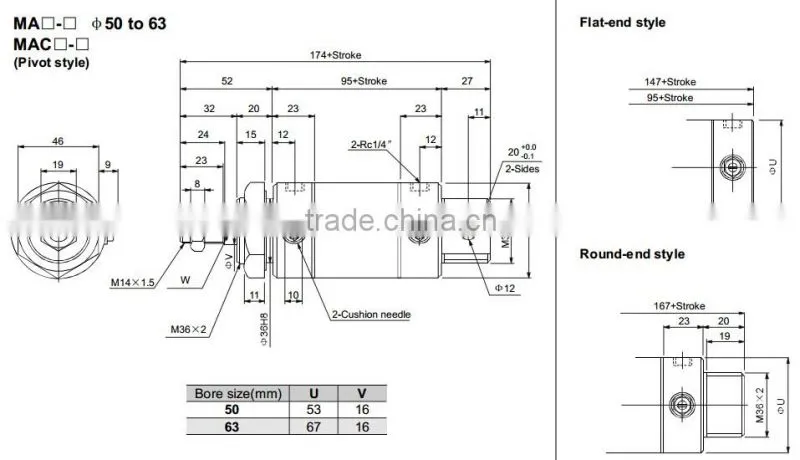

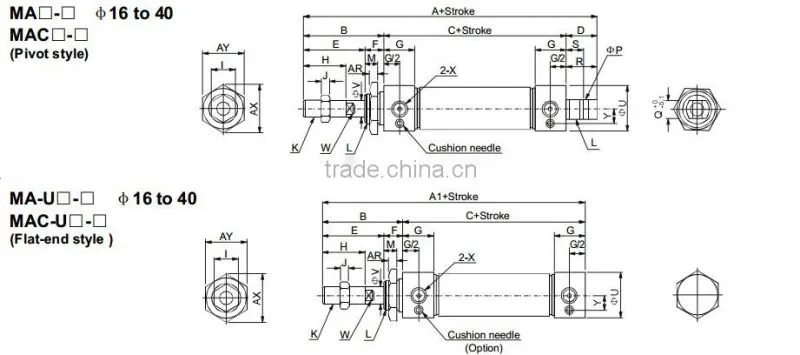

Dimensions and Sizes:

Shippment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok

5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
