1.CDQ2B Series Double Acting Magnet Compact Cylinder-Pneumatic Cylinder2.Double acting, with magnet
3.bore size: 12 to 100mm

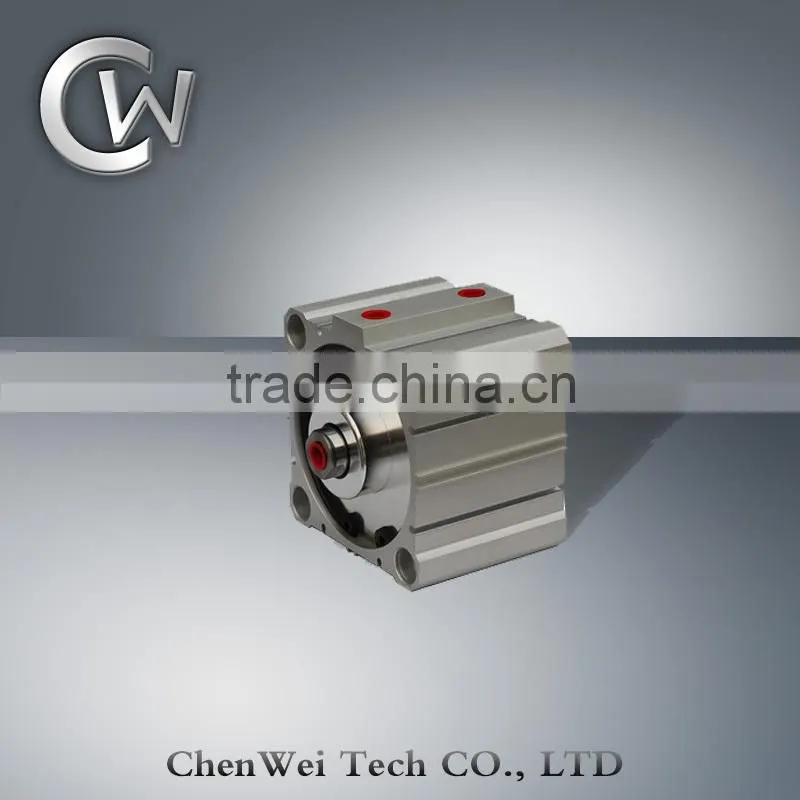

CDQ2B Series Double Acting Magnet Compact Cylinder-Pneumatic Cylinder
Features:
1.CDQ2B Series Magnetic Pneumatic Cylidners .
2.Equivalent to SMC CQ2 Series Magnetic Pneumatic Cylidners , with the same appearance.
3.Compact design.
4.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.
5.Double acting, Single/Double rod
6.Single acting, Single rod, Spring return/extend
7.Rubber bumper(Option).
8.Built-in magnet is optional.
9.Cylinder kits, barrel, piston is available.
How to Order:
Specification:
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Fluid | Air | ||||||||||
| Action | CQ2-D | Double acting, Single/Double rod | |||||||||
| CQ2-S/T | Single acting, Single rod, Spring return/extend | - | |||||||||
| Minimum operating pressure | Double Acting | 0.07 MPa | 0.05 MPa | ||||||||
| Single Acting | 0.25 MPa | 0.18 MPa | 0.17 MPa | 0.15 MPa | 0.13 MPa | - | |||||
| Maximum operating pressure | 1.0 MPa | ||||||||||
| Proof pressure | 1.5 MPa | ||||||||||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||||||||
| Cushion | Rubber bumper (Option) | ||||||||||
| Lubrication | Non-lube | ||||||||||
| Piston rod dia. | 6 mm | 8 mm | 10 mm | 12 mm | 16 mm | 20 mm | 25 mm | 30 mm | |||
| Rod end thread | Female thread | M3x0.5 | M4x0.7 | M5x0.8 | M6x1.0 | M8x1.25 | M10x1.25 | M16x2.0 | M20x2.5 | ||
| Male thread | M5x0.8 | M6x1.0 | M8x1.25 | M1.0x1.25 | M14x1.5 | M18x1.5 | M22x1.5 | M26x1.5 | |||
| Port size | M5x0.8 | G1/8 | G1/4 | G3/8 | |||||||
Main Material:
| No. | Description | Material | Note |
| 1 | Cylinder barrel | Aluminium alloy | Hard anodized |
| 2 | Piston rod | Stainless steel | ø12 to ø25 |
| High-alloy steel | Hard chrome plated | ||
| 3 | Rod cover | Aluminum alloy | Clear anodized |
| 4 | End cover | Aluminum alloy | Clear anodized |
| 5 | Piston | Aluminum alloy | Chromated |
| 6 | Seal | NBR | - |
| 6 | Seal | NBR | - |
