Help CenterSCT Series Double-acting Multi-position Standard Pneumatic Cylinder
Related Products
-
Airtac Type TN Series Twin Rod /Dual Rod /Double Shaft Pneumatic CylinderUS$ 5 - 15MOQ: 1 Piece -
TN/TDA32X100mm Pneumatic Cylinder- Double Rod Air CylinderUS$ 5 - 15MOQ: 1 Piece
-
MXS Series Sliding Table CylinderUS$ 60 - 100MOQ: 1 Piece
-
MXH Series Air Slide CylinderUS$ 40 - 100MOQ: 1 Piece
-
MXH Series Compact Air Slide Table CylinderUS$ 40 - 100MOQ: 1 Piece
Specifications
1.SCT Series Double-acting Multi-position Standard Pneumatic Cylinder2.Good quality and competitive price
3.Magnet: optional

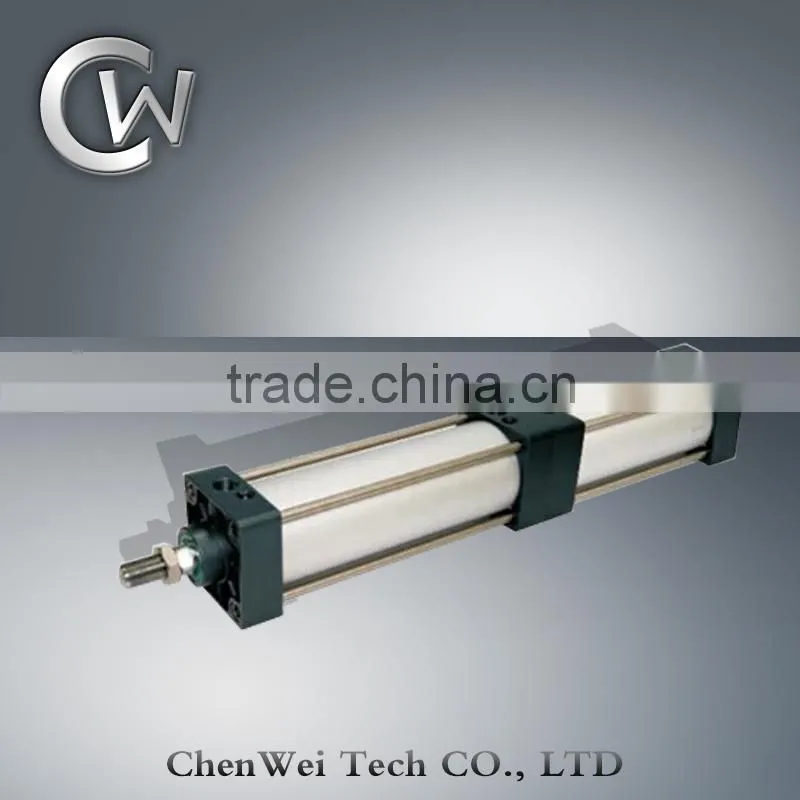

SCT Series Double-acting Multi-position Standard Pneumatic Cylinder
Features:
1.Variety of installation mode: there are many installation modes given for customer's selection.
2.High temperature resistant property: the cylinder adopts high temperature resistant sealing material.through which the cylinder could work normally under 150 °C high temperature.
3.Magnetic: there is one permanent magnet fixed on cylinder's piston.it could start the inductive switch on cylinder to sense motion position of cylinder.
4.Stroke adjustable property: there is adjustable nut set on piston rod end.which makes stroke adjustable within given range.
How to Order:
Specification:
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT2/1 | PT1/2 | PT3/4 | PT3/4 |
| Action | Double Action | ||||||||
| Working Fluid | Filtered Compressed Air | ||||||||
| Working Pressure | 0.1-0.9MPa | ||||||||
| Proof Pressure | 1.5MPa | ||||||||
| Working Temperature | 0-60 °C | ||||||||
| Cushion | Adjustable Cushion | ||||||||
| Working Speed | 50-800mm/s | 50-500mm/s | |||||||
| Cushion Stroke | 24 mm | 32 mm | |||||||
| Mounting Type | FA FB CA CB LB TC TC-M & Basic Type | ||||||||
Standard Stroke:
| Bore(mm) | Standard stroke | Max. stroke | Permit. stroke |
| 32 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 | 1000 | 2000 |
| 40 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 |
| 50 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 |
| 63 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 80 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 100 | 25 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
125 |
26 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 160 | 27 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 28 50 75 80 100 125150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |

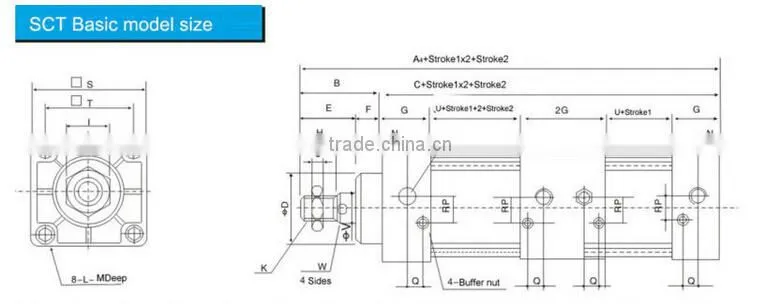

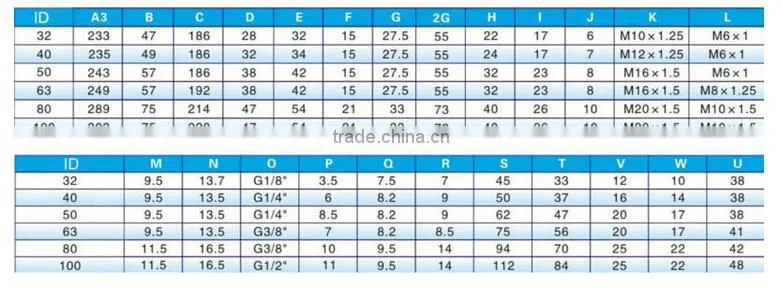

Dimenions:
Main Material:
| No | Description | Material |
| 01 | Cylinder Tube | Aluminium Alloy |
| 02 | Piston | Aluminium Alloy |
| 03 | Piston Rod | High Carbon Steel(Chrome Plated With Attrition Treatment) |
| 04 | Front Cover | Aluminium Alloy |
| 05 | End Cover | Aluminium Alloy |
| 06 | Front Cover Seal | NBR |
| 07 | Piston Seal | NBR |
| 08 | Cover Gasket | NBR |
| 09 | Piston Rod O-ring | NBR |
| 10 | Cushion Gasket | NBR |
| 11 | Bush | Oil Impregnated Powder Copper |
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
