Help CenterAirtac Type TN Series Twin Rod /Dual Rod /Double Shaft Pneumatic Cylinder
Related Products
-
TN/TDA32X100mm Pneumatic Cylinder- Double Rod Air CylinderUS$ 5 - 15MOQ: 1 Piece -
MXS Series Sliding Table CylinderUS$ 60 - 100MOQ: 1 Piece
-
MXH Series Air Slide CylinderUS$ 40 - 100MOQ: 1 Piece
-
MXH Series Compact Air Slide Table CylinderUS$ 40 - 100MOQ: 1 Piece
-
CXS Series Pneumatic Guide Cylinder-CXSM25X50mmUS$ 5 - 10MOQ: 1 Piece
Specifications
1.Airtac Type TN Series Twin Rod /Dual Rod /Double Shaft Pneumatic Cylinder2.Bore size: 10,15, 20, 25, 32

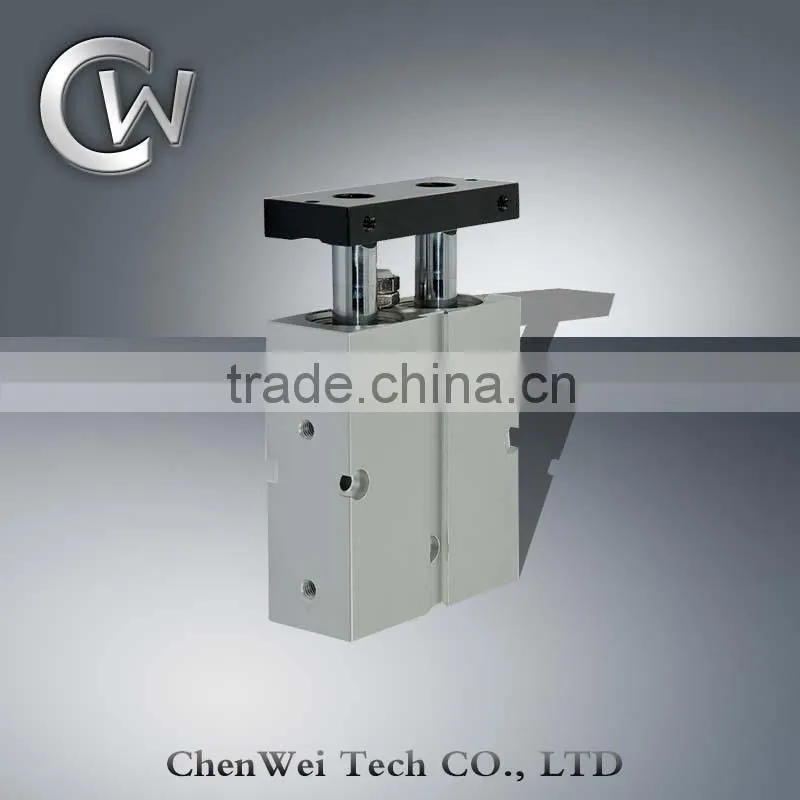

Airtac Type TN Series Twin Rod /Dual Rod /Double Shaft Pneumatic Cylinder
Features:
1) With magnet and suitable slot is designed for magnetic sensor fixing
2) Embedding mounting and no need other brackets,room saving
3) Easy to assemble and easy to maintain
4) With self lubricating bearing,the piston rod is lubrication free.
5) Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.
How to Order:
Specification:
| Bore size (mm) | 10 | 16 | 20 | 25 | 32 |
| Fluid | Air | ||||
| Action | Double acting, Single rod, Twin piston | ||||
| Minimum operating pressure | 0.1 MPa | ||||
| Maximum operating pressure | 1.0 Mpa | ||||
| Proof pressure | 1.5 MPa | ||||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||
| Cushion | Rubber bumper | ||||
| Lubrication | Non-lube | ||||
| Port size | M5×0.8 | 1/8 | |||

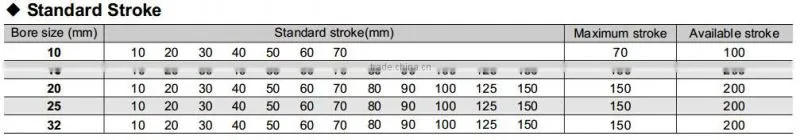

Standard Stroke:
Main Mterial:
| No. | Description | Material | Note |
| 1. | Pneumatic Cylinder barrel | Aluminium alloy | Hard anodized |
| 2. | Piston rod | High-alloy steel | Hard chrome plated |
| 3. | Rod cover | Aluminum alloy | Clear anodized |
| 4. | End cover | Aluminum alloy | Clear anodized |
| 5. | Piston | Aluminum alloy | Chromated |
| 6 | Plate | Aluminum alloy | Clear anodized |
| 7. | Seal | NBR | - |

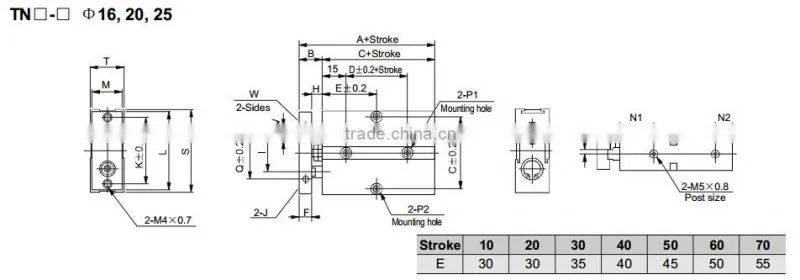

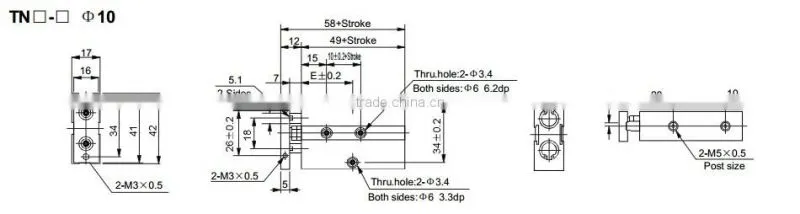

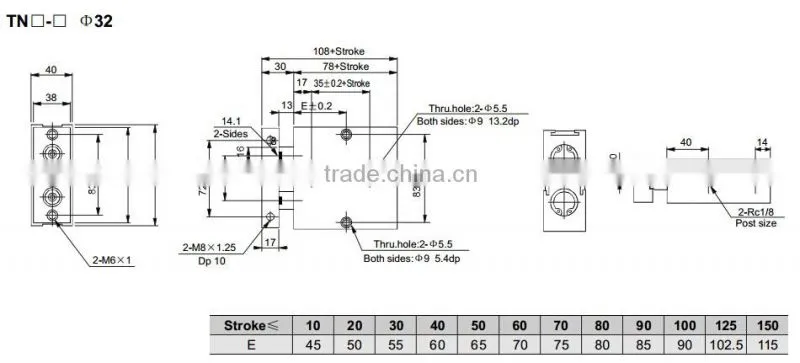

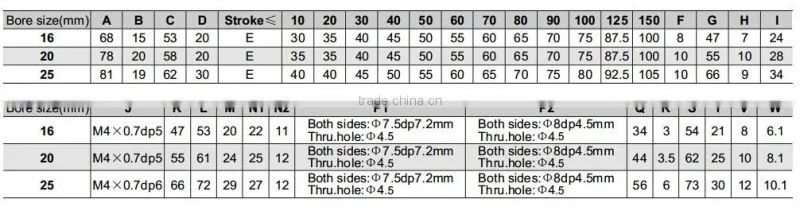

Dimensions and Sizes:
Shippment
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
