Specifications
1.MXH Series Air Slide Cylinder2.Equivalent to SMC
3.Integration of work table and cylinder.
4.Good quality

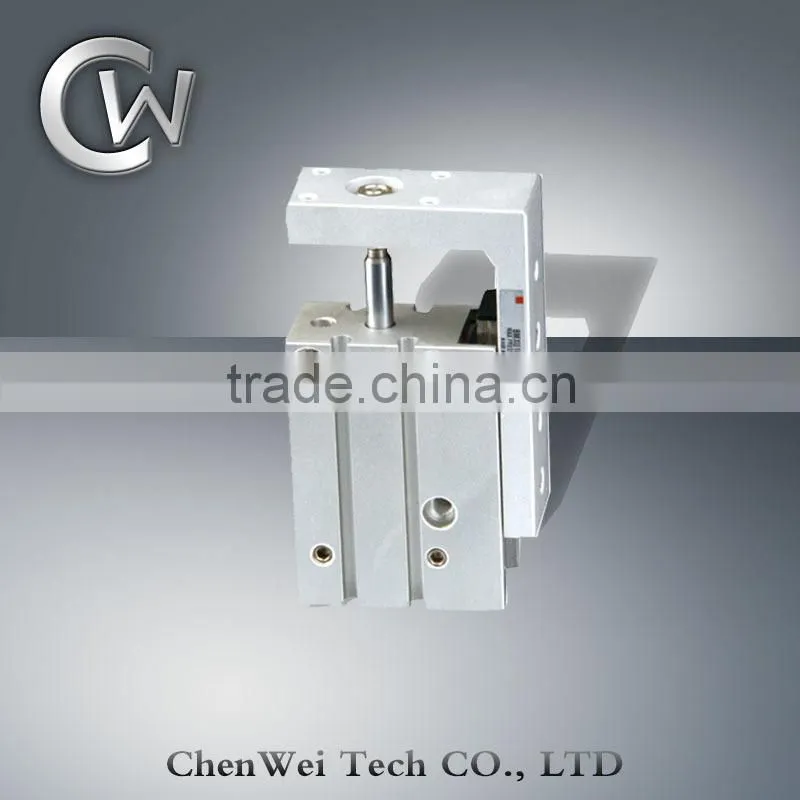

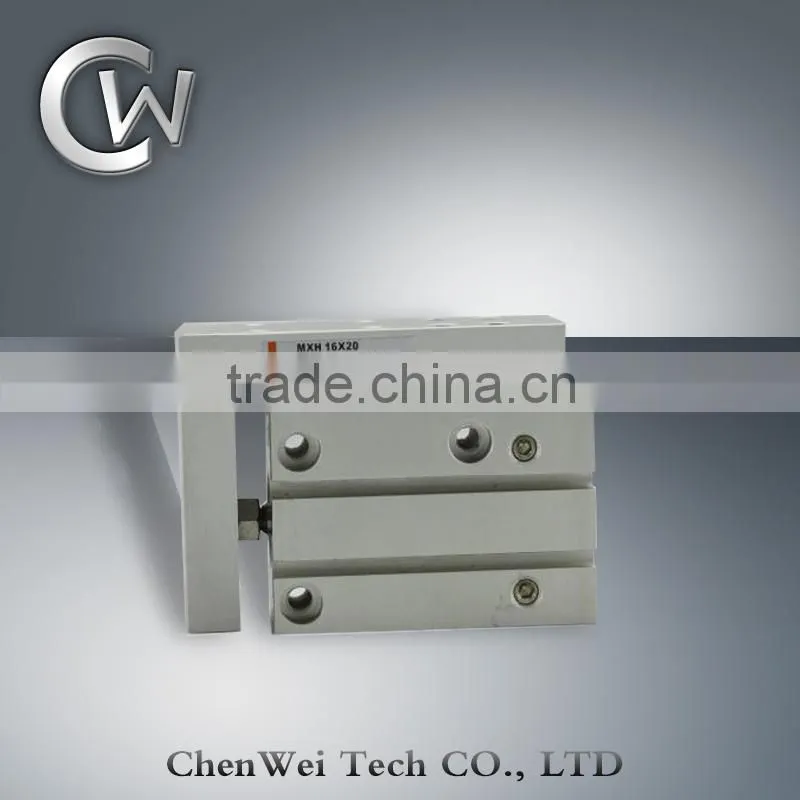

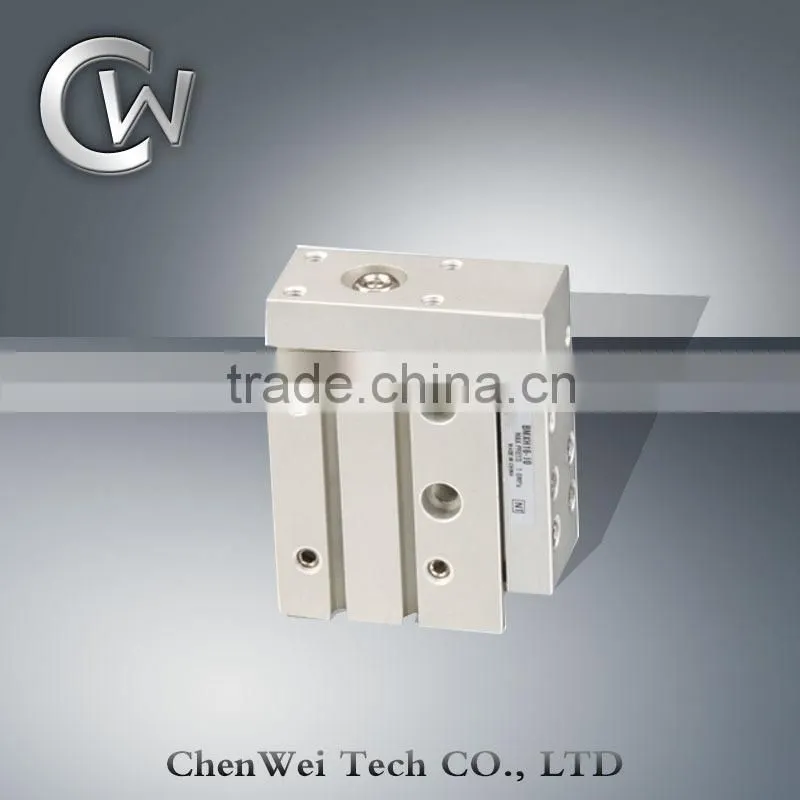

MXH Series Air Slide Cylinder
Features:
1.MXH series air slide cylinder ..
2.Equivalent to SMC MXH series air slide cylinder , with the same appearance.
3.Bore size(mm): 6, 10, 16, 20.

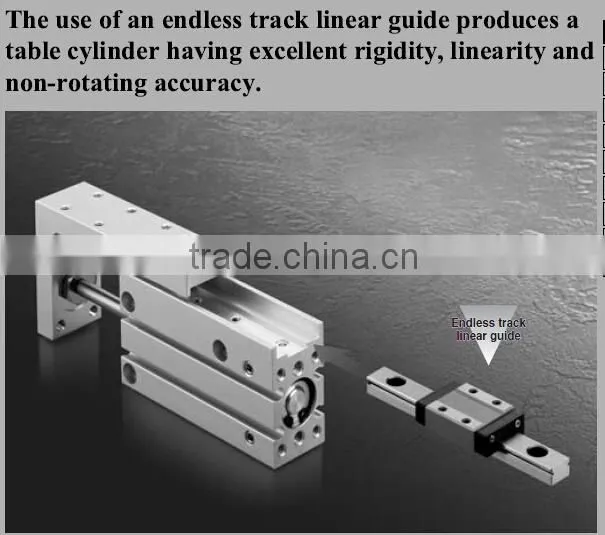

4.Use an endless track linear guide.
5.High precision, compact design, for precision assembly processes.
6.Dual piston rods, wide variety of adjuster option.
7.4 mounting directions, 3 piping connection directions.

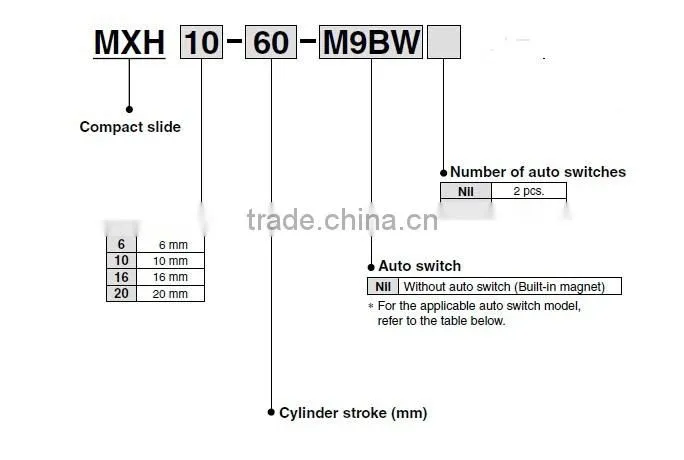

How to Order:
Specification:
| Bore size (mm) | 6 | 10 | 16 | 20 |
| Fluid | Air | |||
| Action | Double acting | |||
| Operating pressure | 0.15 to 0.7 Mpa | |||
| Proof pressure | 1.05 MPa | |||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | |||
| Cushion | Rubber bumper | |||
| Lubrication | Non-lube | |||
| Port size | M5x0.8 | |||
Main Mterial:
| No. | Description | Material | Note |
| 1 | Cylinder barrel | Aluminium alloy | Hard anodized |
| 2 | Table body | Aluminium alloy | Hard anodized |
| 3 | Piston rod | Stainless steel | - |
| 4 | Rod cover | Brass | - |
| 5 | End cover | Brass | ø6, ø10 electroless nickel plated |
| Aluminum alloy | ø16, ø20 chromated | ||
| 6 | Piston | ø6 | |
| Aluminum alloy | ø10, ø16, ø20 | ||
| 7 | Plate | Aluminum alloy | Clear anodized |
| 8 | Seal | NBR | - |
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
