Specifications
1.MXS Series Sliding Table Cylinder2.Equivalent to SMC
3.Integration of work table and cylinder.
4.1 year warranty

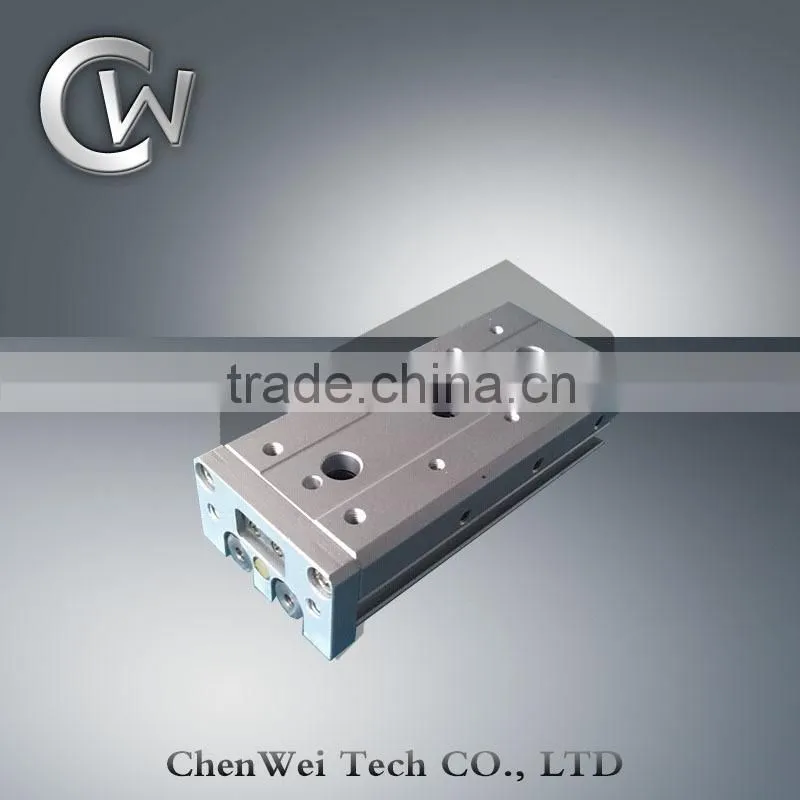

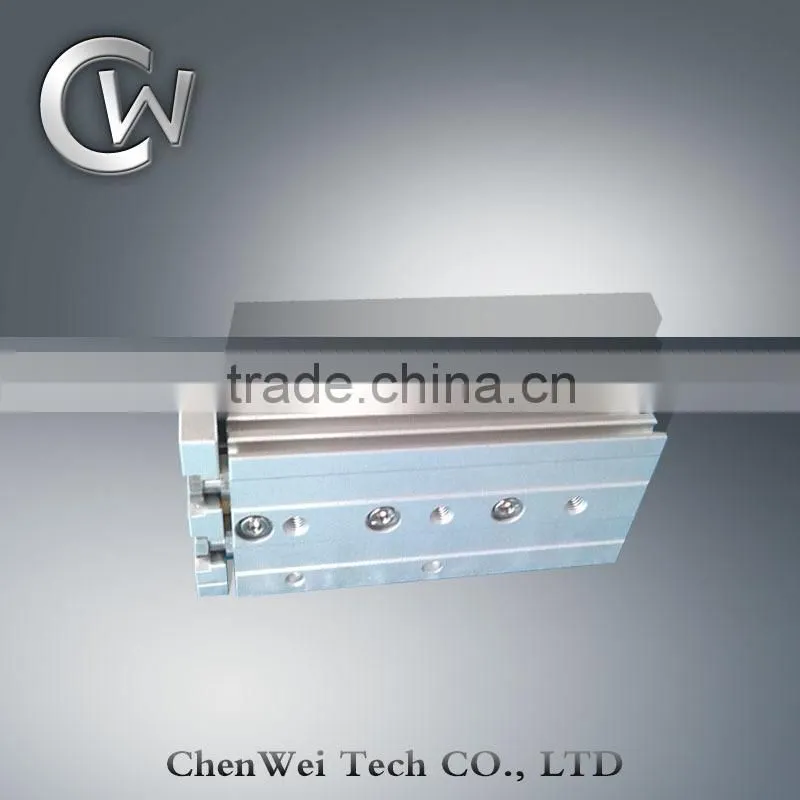

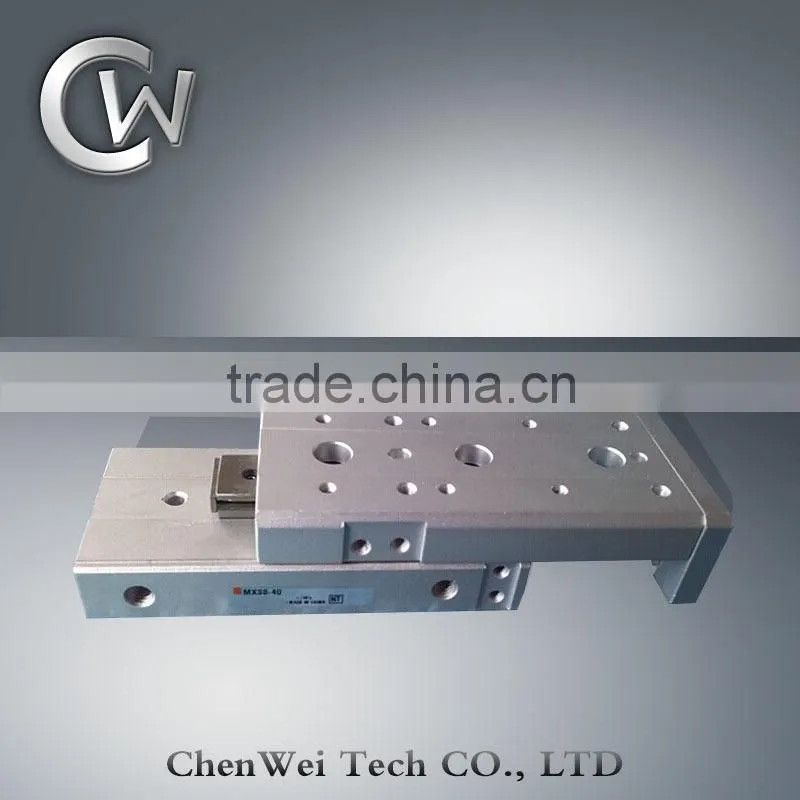

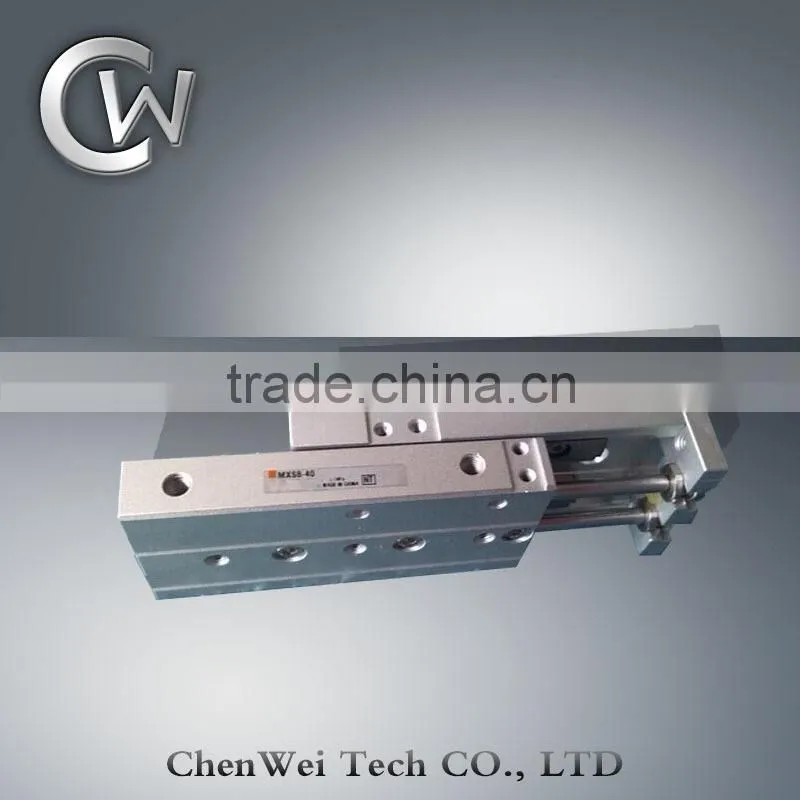

MXS Series Sliding Table Cylinder
Features:
1.MXS series sliding table cylinder..
2.Equivalent to SMC MXS series sliding table cylinder, with the same appearance.
3.Bore size(mm): 6, 8, 12, 16, 20, 25.
4.Work table and air cylinder are compactly integrated..
5.High precision, compact design, for precision assembly processes.
6.Dual piston rods, wide variety of adjuster option.
7.Symmetric type is avilable.

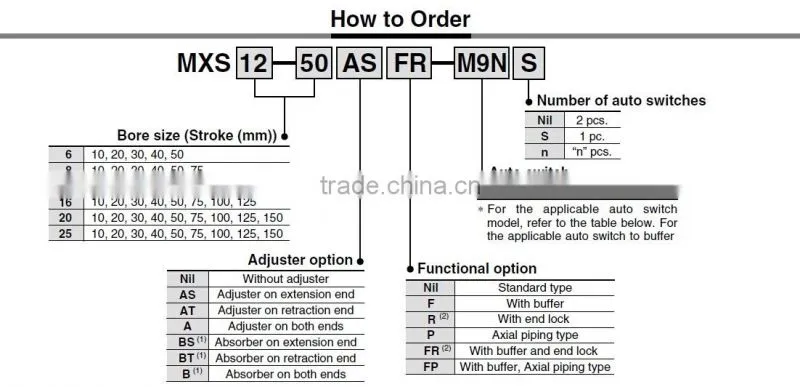

How to Order:
Specification:
| Boresize | 6 | 8 | 12 | 16 | 20 | 25 |
| Port size | M3X0.5 | M5X0.8 | 1/8" | |||
| Fluid | Air | |||||
| Action | Double acting | |||||
| Working pressure | 0.15 to 0.7MPa | |||||
| proof pressure | 1.05MPa | |||||
| Working temperature | ~10~60 degree | |||||
| Piston speed | 50 to 500mm/s | |||||
| Cushion | Rubber bumper(standard: with stroke adjuster) shock absorber(option) | |||||
| Lubrication | no need | |||||
Main Mterial:
| No. | Description | Material | Note |
| 1 | Body | Aluminum alloy | Hard anodized |
| 2 | Table | Stainless steel | Heat treated, Electroless nickel plated |
| 3 | Cover | Synthetic resin | |
| 4 | Rod | Stainless steel | |
| 5 | Piston assembly | - | With magnet on one side |
| 6 | Rod cover | Aluminum alloy | Anodized |
| 7 | Seal support | Brass | Electroless nickel plated |
| 8 | Head cap | Synthetic resin | |
| 9 | Floating bushing | Stainless steel | |
| 10 | Steel balls | High carbon chrome bearing steel | |
| 11 | Parallel pin | Stainless steel | |
| 12 | Seals | NBR |
