1280Mhz center frequency 15dBi directional yagi antenna, designed esp for Unmanned Aerial Vehicle, absolutely a benefit for UAV hobbyist.
Gain is 15dBi

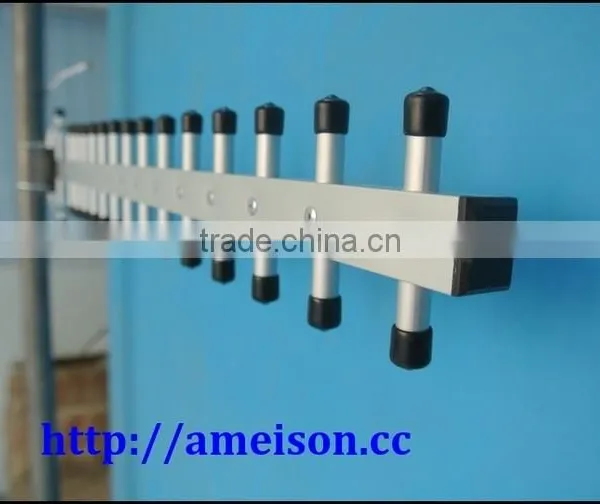

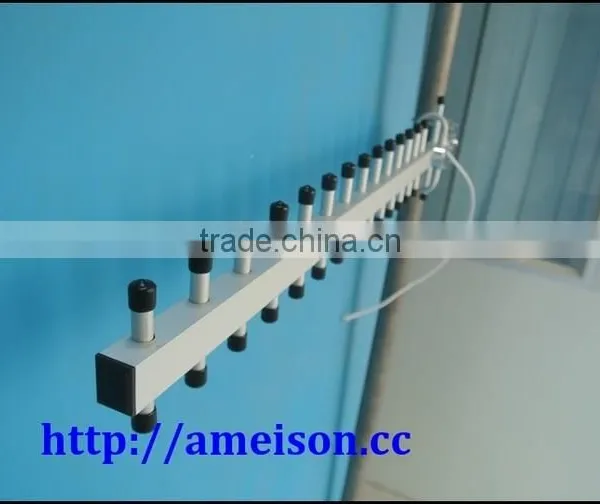

Antenna has 16 elements
Material: aluminum alloy framework
AMXY-1200-15
Feature:
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal
Application:
1.2GHz system
Point-to-point, point-to-multipoint system
Unmanned Aerial Vehicle, Wireless bridging, client termination antenna
Spec datasheet:
|
AMXY-1200-15 Electrical Specifications | |
Frequency range(MHz) |
1100-1300 |
Bandwidth(MHz) |
200 |
Gain(dBi) |
15 |
Element |
16 |
Half-power beam width(°) |
H:40 V:37 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤1.8 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |

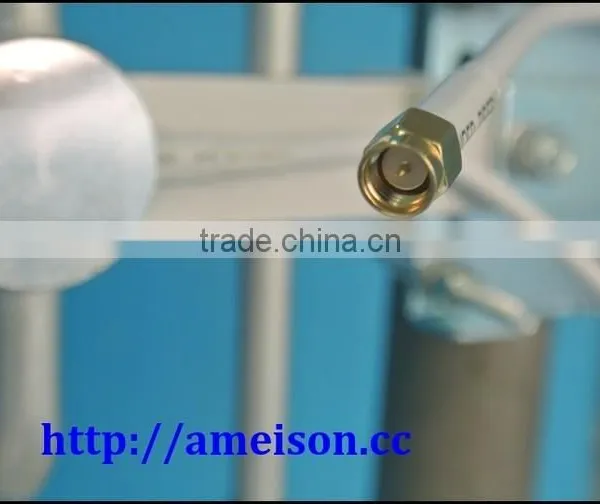

Input connector type |
SMA Male or as requested |
Mechanical Specifications | |
Dimensions(mm) |
880*160*55 |
Cable length(m) |
0.3 |
Antenna weight(kg) |
0.65 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |

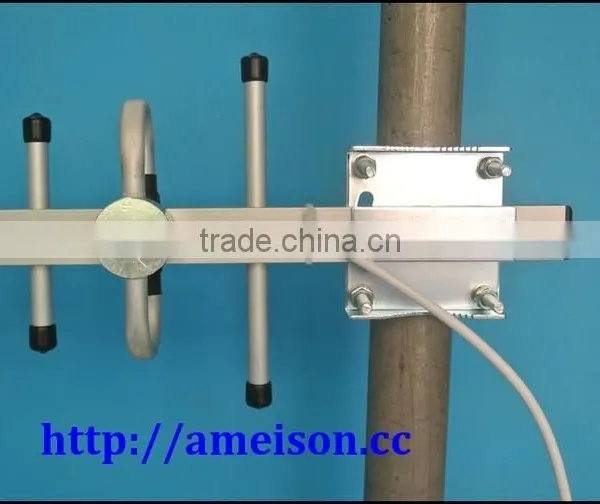

Clamp |
U-shape |
Mounting hardware(mm) |
Φ35~Φ50 |
