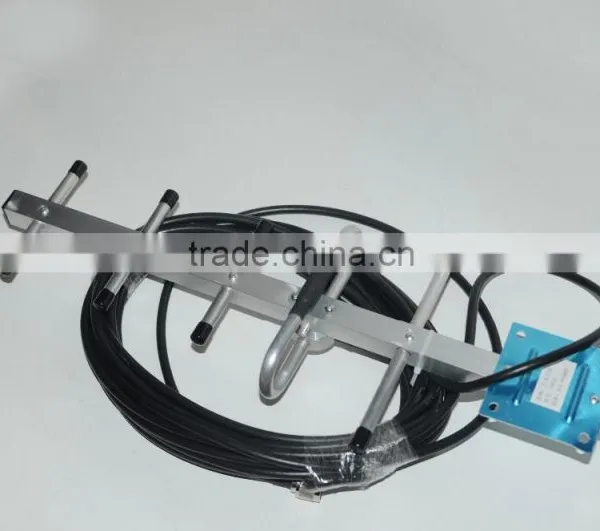

AMEISON Directional GSM CDMA WCDMA UMTS 806 - 960MHz 7 dBi 5 element yagi antenna
AMXY-8090-7
Feature:
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal
Application:
CDMA, GSM system
Point-to-point, point-to-multipoint system
Wireless bridging, client termination antenna
|
AMXY-8090-7 Electrical Specifications | |
Frequency range(MHz) |
806 - 960 |
Bandwidth(MHz) |
154 |
Gain(dBi) |
7 |
Element |
5 |
Half-power beam width(°) |
H:52 V:40 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
N female or others |
Mechanical Specifications | |
Dimensions(mm) |
420*190*54 |
Cable length(m) |
0.3 |
Antenna weight(kg) |
0.4 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Clamp |
U-shape |
Mounting hardware(mm) |
Φ35~Φ50 |
