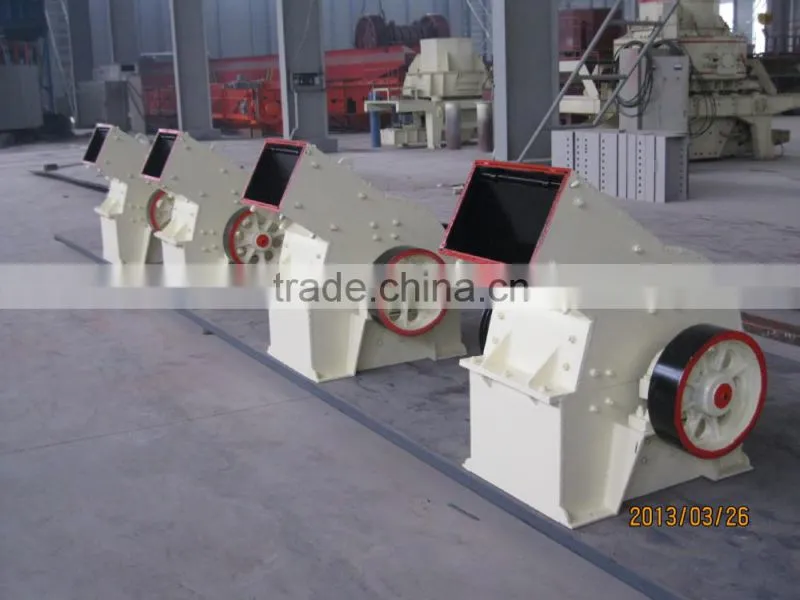

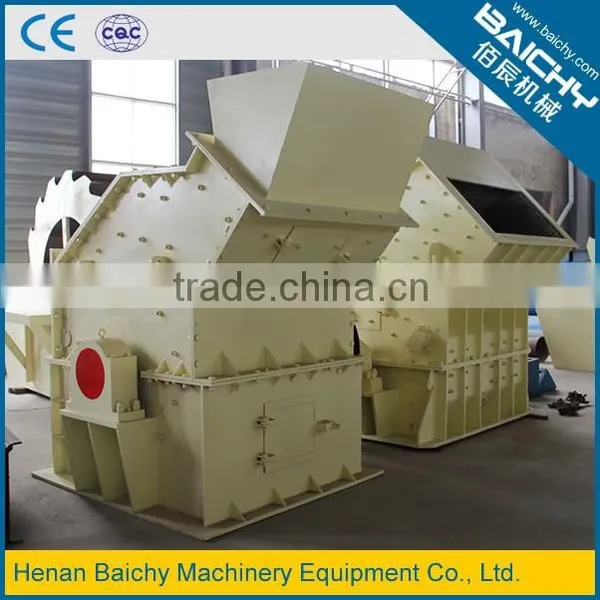

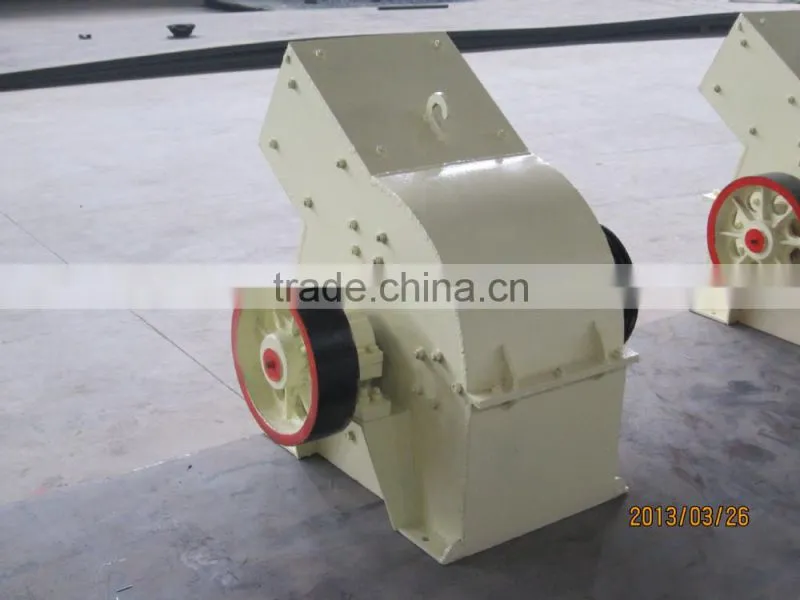

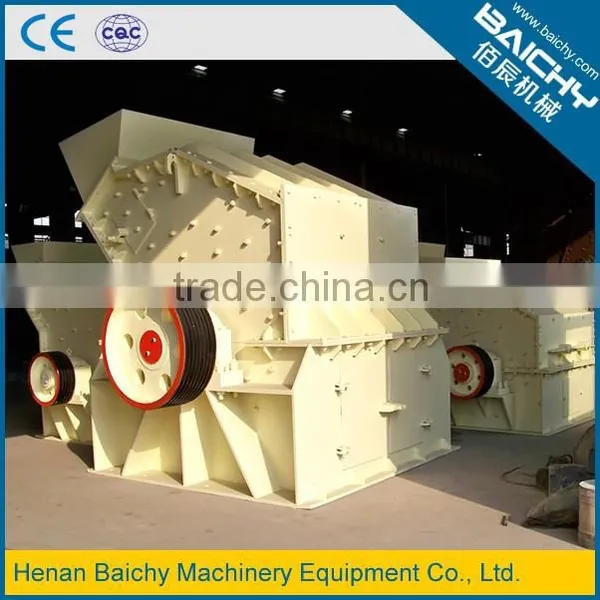

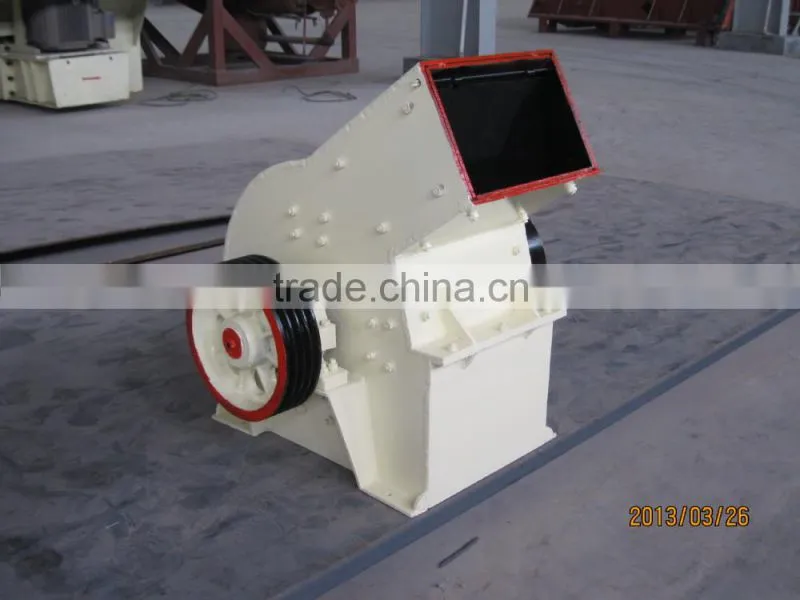

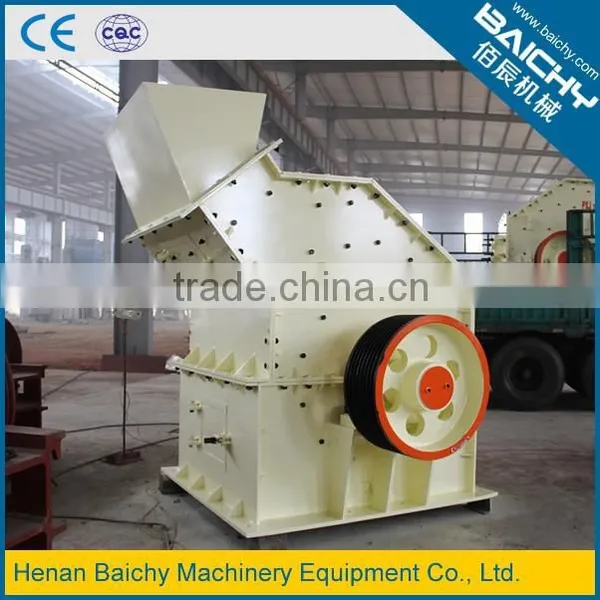

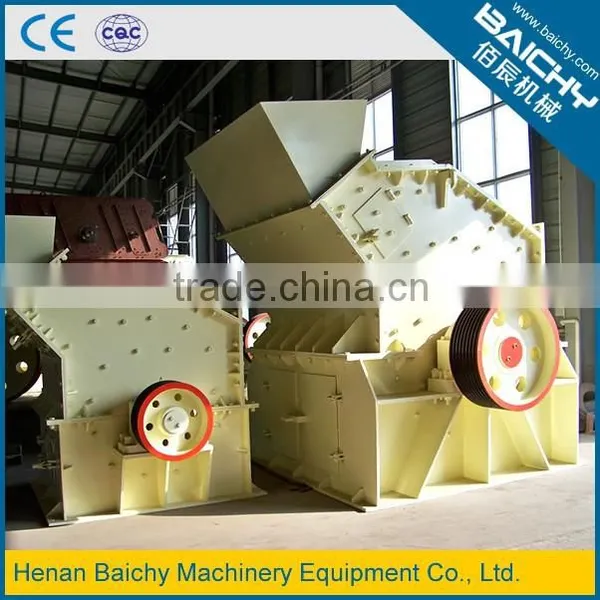

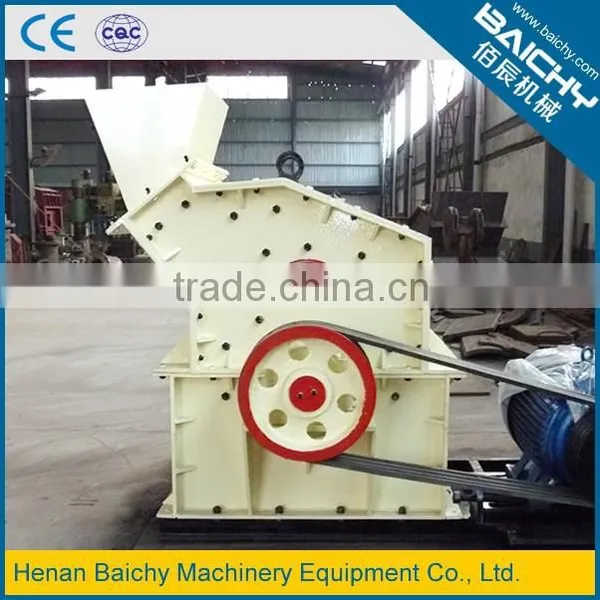

PCX High-efficiency PCS-8080 Fine Crusher Mill
Specifications of Fine Crusher:

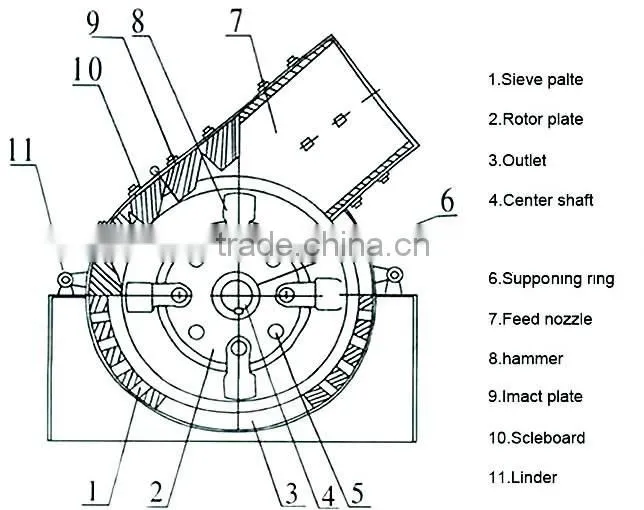

PCX fine crusher incorporates the advantages of the third stage sand making machine, hammer crusher, impact crusher, VSI crusher. It adopts stone-stone principle with a huge arc-shaped crushing cavity, which is a screen cavity with grate seam. We achieves the low cost operation of fine crusher completely for the specialized plate hammer.
Features of Fine Crusher:
1. The device stable and reliable performance, process simplification, simple structure, reasonable and compact, easy to replace parts, repairs.
2. Changed three-level broken for second level broken, large production capacity, hammerhead long service life, environmentally friendly energy.
3. The unique structure of high chrome hammer, unique hard rock crushing Counterattack liner, unique inertial impact balancing device, a unique easy disassembly maintenance window. Exhaust particle size can be adjusted to simplify the crushing sand making process.
4. High-efficiency fine crusher than the same scale of traditional sand making machine yield high 30%~50% (≤ 5mm once yield accounted for more than 85%).
5. High-efficiency fine crusher saving 50% to 70% compared to the same scale of traditional sand making machine (one motor can produce).
6. High-efficiency fine crusher finished material is sand, stone cubic shape, strong Pressure-resistant ability, for high standard building needs (needle-shaped, less flaky-shaped).
7. High-efficiency fine crusher maintenance reduced by 50% to 60% than the same scale of traditional sand making machine (wearing parts can be purchased locally).
8. High efficiency fine crusher and matching the jaw crusher directly constitute the system of sand production line, eliminating the impact crusher and sand making machine, reduce the investment cost..
Applications of Fine Crusher:
PCX, the achievement of our technicians' efforts plays the irreplaceable role in fine crushing with its high efficiency and low cost. It has gained the deep trust from customers and high market-occupying rate with the increasing product function. This product is widely applied in all kinds of ores, cement, fireproofing material, bauxite chamotte, emery, glass raw material, machined construction sand, stone, all kinds of metallurgical slay etc.
Main Technical Parameters of Fine Crusher:
| Model | Feeder Opening Size(mm) | Feeding Size(mm) | Output Size(mm) | Capacity of Cement(t/h) | Capacity of Limestone(t/h) | Motor Power(kw) |
|---|---|---|---|---|---|---|
| PCX8040 | 400×185 | <120 | < 3(85%) | 20-30 | 35-45 | 45 |
| PCX8060 | 500×250 | < 180 | < 3(85%) | 35-40 | 45-55 | 55 |
| PCX8080 | 550×330 | < 180 | < 3(85%) | 35-45 | 55-65 | 55 |
| PCX1010 | 1000×350 | < 180 | < 3(85%) | 45-55 | 65-75 | 75 |
| PCX1210 | 1200×400 | < 180 | < 3(85%) | 80-100 | 50-100 | 110 |
| PCX1212 | 1200×450 | < 180 | < 5(85%) | 100-110 | 90-100 | 132 |
| PCX1414 | 1500×500 | < 190 | < 5(85%) | 100-150 | 100-150 | 160 |
| PCX1616 | 1600×550 | < 190 | < 5(85%) | 170-210 | 190-250 | 250 |
| PCX1818 | 1800×800 | < 190 | < 5(85%) | 250-270 | 280-310 | 315 |
