2.8 x 24 High Efficiency Mineral Sand Rotary Dryer
Description of Rotary Dryer
Baichy's single drum rotary dryer are endowed with large drying capacity, smooth working, low energy consumption, easy operation, high yield advantages. The dryer according to the different materials characteristics, set up different types of lifting plate and in case of sticky measures, the material feed in the inner of rotating cylinder drying, as well as multi-angle lifting by the plate, so that the material raise uniform full and high-temperature hot air for heat exchange. Drying effect high,external cylinder with shaking devices to prevent the material sticking on the wall.
Features of Rotary Dryer

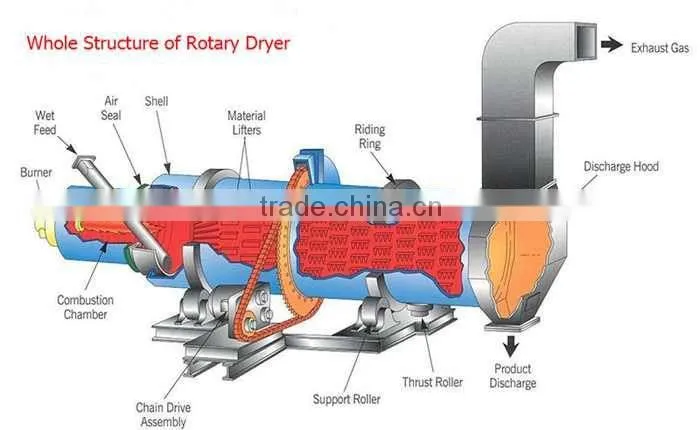

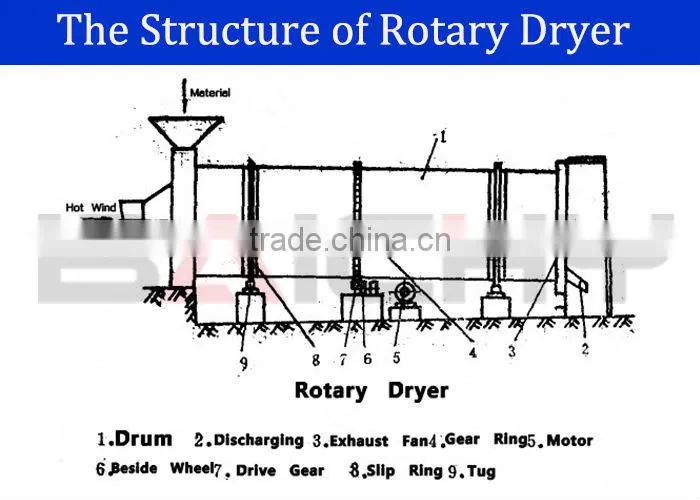

1. Rotary dryer is mainly composed of cylinder, under frame, feeding and discharging devices,transmission device, gear cover, etc. (Optional auxiliary equipment includes combustion chamber, feeder and discharging device, and dust collection equipment). 2. Rotary drier manufactured by us adopts new lifting plate, which is of functions like guiding, current-sharing, and material rising. 3. The materials are raised and evenly drop so that they are in full contact with heat for better drying efficiency.
4. Our rotary drier is designed with the best working conditions, which enables it to save 10-15% of energy and increase 10-15% of productivity compared with common dryers.
Applications of Rotary Dryer
The single drum rotary dryer is widely used for drying the Ore,Gypsum,Vinasse,chalk slags,coal powder, slags, clay and other materials in the building materials, metallurgy,chemical industry, cement industry. you can use coal, gas, electricity, oil and wind power to heat the dryer machine.

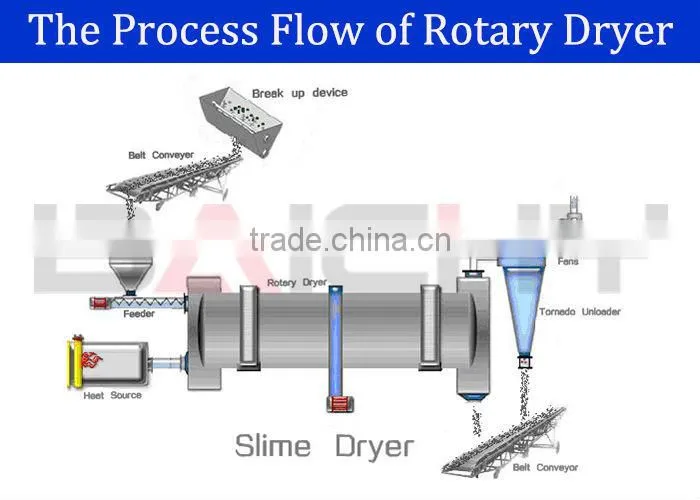

Working Principle of Rotary Dryer
1. Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line.
2. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, then materials and hot air mix together.
3. Materials go to the lower side by gravity when the barrel rotates.
4. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely, so drying efficiency is improved.
| Specification | Capacity (t/h) | Power (kw) | Square |
|---|---|---|---|
| DLSG1412 | 20 | 11 | 120 |
| DLSG1615 | 40 | 15 | 240 |
| DLSG1965 | 75 | 37 | 320 |
| DLSG2218 | 110 | 45 | 400 |
| DLSG2818 | 150 | 75 | 540 |
Pre-sales Service:
1. The wide product range enables us to provide our customers with stand-alone machines or complete processing plants;
2. Based on our customers'request and budget, our experts make efficient, reliable solutions;
3. Before placing the order every customer has the chance to visit daiwo working machines or complete plant in the site;
4. We have a full set of testing equipment, to provide a good test environment.
After-sales Service:
1. Experienced technicians guidance and engineers will be dispatched to the quarry site to help install the customers'plants;
2. Provide necessary training about machine daily maintenance to local workers ;
3. After-sales department has well-trained employees and professional installation engineers.
Henan Baichy Machinery Equipment Co., Ltd. was founded in 2003, and now it has been becoming a high-tech mining company. Our company integrates research and development, designing, manufacturing, sales and after-sales services. The brand products, cone crusher, sand making machine, high-efficient fine crusher, high-pressure medium-speed mill, vertical mill, micronizer, three ring mill, ball mill, etc, are in the leading level of the world. Our company became the member of "CSSA Chinese gravel Association", and all the products have gained ISO9001: 2008 quality management system certificate and IQNet international certification.
