Two-Cavity PFV-1007 Impact Crusher
Specifications of Impact Crusher:
1. Mainly used in secondary crushing
2. Widely used in mining, highway,construction

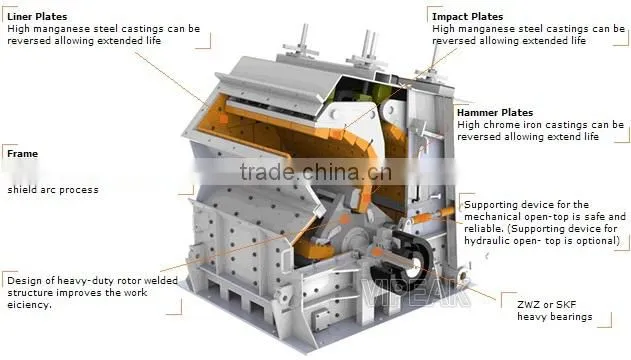

Features of Impact Crusher:
1. Big feed opening, high crushing chamber
2. Easy-adjusted clearance between impact plate and hammer, fine cubic shape
3. Two or Three-curtain cavity design, high efficiency.
4. No-board connection
5. Chrome hammer and special impact plate
6. Adoption of hydraulic arm technology, easy maintenance.
Applications of Impact Crusher:
Impact crusher is an important equipment for secondary crushing. On the basis of absorbing advanced technology. Our company adopted the latest manufacturing craftsmanship as well as unique design and developed the latest PF series impact crusher with considering the specific mining conditions of sand industry. The adoption of no-board connection and hydraulic valve not only reduces the customer's operation coast, but also improves the production efficiency. Finished products are cubic without tension or cracks, and the shape is quite good.
Main Technical Parameters Of Impact Crusher:
Two-Cavity Impact Crusher
Model |
Specification (mm) |
Feeder Opening Size (mm) |
Max Feeding Size (mm) |
Capacity (t/h) |
Motor Power |
PF-1007 |
1000 x 700 |
400 x 730 |
250 |
15-60 |
45 |
PF-1010 |
1000 x 1050 |
400 x 1080 |
300 |
50-90 |
55 |
PF-1210 |
1250 x 1050 |
400 x 1080 |
300 |
70-130 |
90 |
PF-1214 |
1250 x 1400 |
400 x 1430 |
300 |
90-180 |
132 |
PF-1315 |
1320 x 1500 |
860 x 1520 |
350 |
120-250 |
160 |
PF-1320 |
1320 x 2000 |
860 x 2030 |
500 |
160-350 |
200 |
Three-Cavity Impact Crusher
Model |
Specification (mm) |
Feeder Opening Size (mm) |
Max Feeding Size (mm) |
Capacity (t/h) |
Motor Power |
PFV-1007 |
1000 x 700 |
400 x 730 |
300 |
25-45 |
55 |
PFV-1010 |
1000 x 1050 |
400 x 1080 |
350 |
35-60 |
75 |
PFV-1210 |
1250 x 1050 |
400 x 1060 |
300 |
80-150 |
98 |
PFV-1214 |
1250 x 1400 |
450 x 1440 |
300 |
100-200 |
132 |
PFV-1315 |
1320 x 1500 |
550 x 1530 |
350 |
130-280 |
160 |
