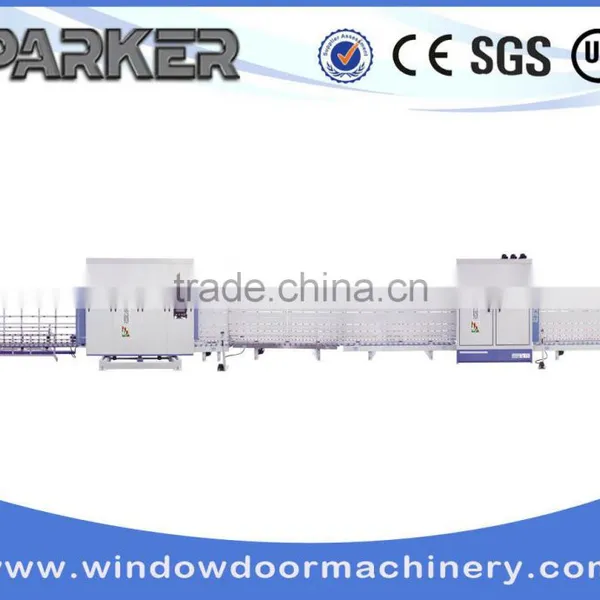

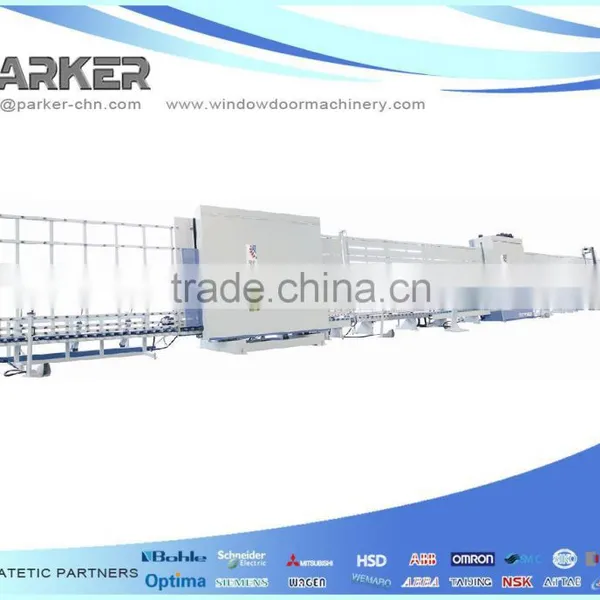

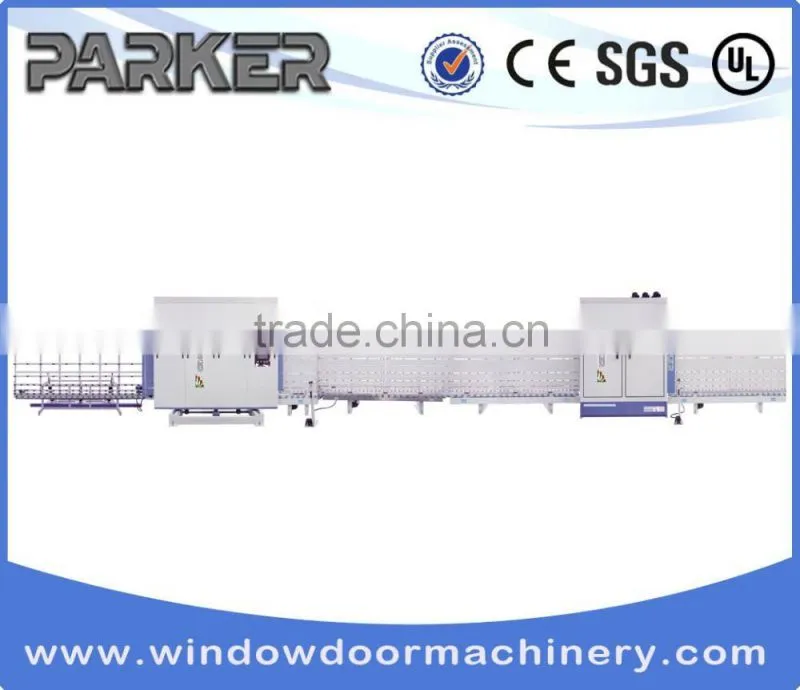

Super Vertical Automatic Flat Press Insulating Glass Produce Line
US$ 53,833 - 59,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
PARKER
Model Number:
IGV22-S6
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Laminated and Float Glass Cutting Machine / Jinan Parker Machinery Co.,ltdUS$ 76,000 - 84,000MOQ: 1 Unit -
CNC Control Automatic Glass Cutting LineUS$ 76,000 - 84,000MOQ: 1 Unit
-
Cnc Glass Cutting Machine With Optima System ItalyUS$ 20,000 - 60,000MOQ: 1 Set
-
Double Glass Making Machine Line, Double Glass Window Machine LineNegotiableMOQ: 1 Set
-
Glass Washing Machine Vertical Horizontal Glass Washing MachineUS$ 10,000 - 30,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
PARKER
Model Number
IGV22-S6
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Features:

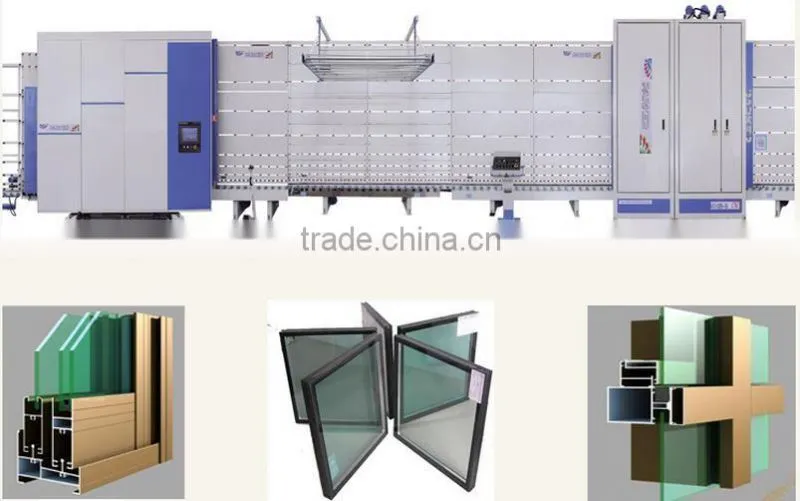

Forinsulating glass production, such as standard glass, overlength glass, coated glass, LOW-E glass, big&small glass, unique glass, triple glass and so on.
Adopt advanced german technology and parts of world famous brands.
Three sections: transfer section, washing&drying section, and press section.

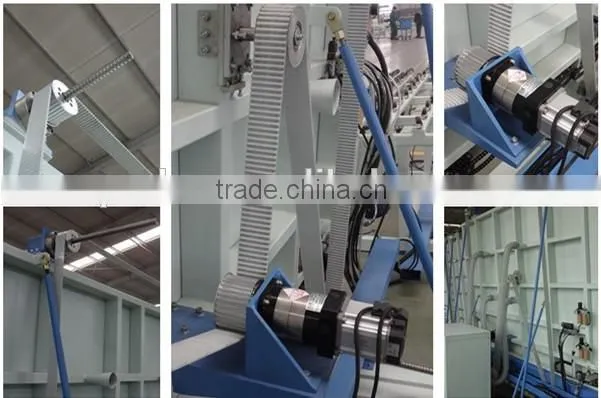

Adopt servo motor and ball screw to press glass. It’s stable, high precision, easy to operate and maintain.
Monitor work process timely with big colored touch screen.
Three pairs of brushes for washing glass, the first pair is hard brushes, the other two pairs are soft brushes.
Automatically identify coating surface of glass to stop the first pair of hard brushes, avoiding loss of the coating film.
Three water tanks are separated for each pair of brushes, avoiding cross contamination effectively.
Adopt high pressure fan and special air knife to improve dry effect.
Available for transferring different sizes of glass with multistage frequency conversion control and speed optimization.
Adopt germany industrial plastic bearing in washing section, avoiding rust.
Match with film removing machine and two component coating machine perfectly.
Parameters:
Name:Insulating glass production line
Model:IGV22-S
Power:380(±6%-10%)V/50-60HZ/18KW
Air consumption:200L/min
Max. process dimension:2200mm x 3000mm
Min. process dimension:480mm x 250mm
Max. thickness of insulating glass:12-60mm
Max. thickness of one piece of glass:3-12mm
Convey speed:50m/min
Washing speed:8-12m/min
Angle of inclination:6°
Overall dimension:About 20150mm x 2800mm x 3300mm
Weight:About 2600Kg
Certifications
Our Service
Packing & Delivery
Packaging & Shipping
Plastic package,Wooden pallet or as required.
