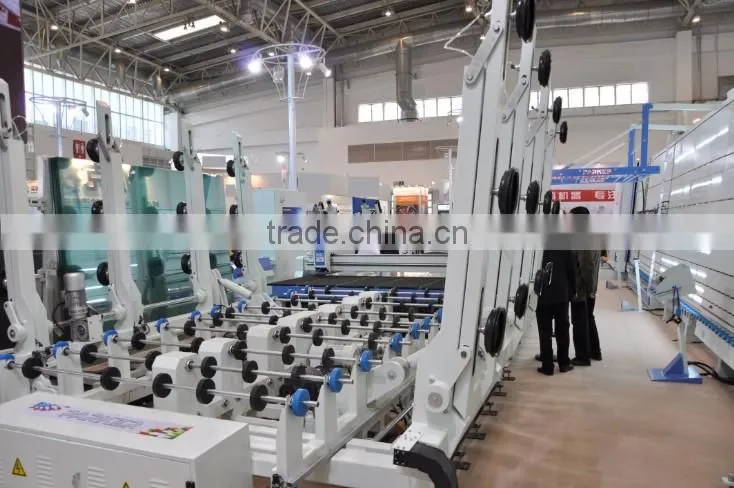

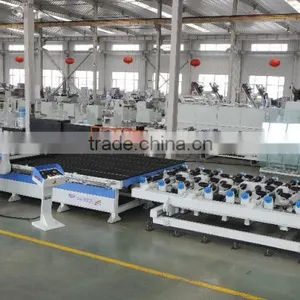

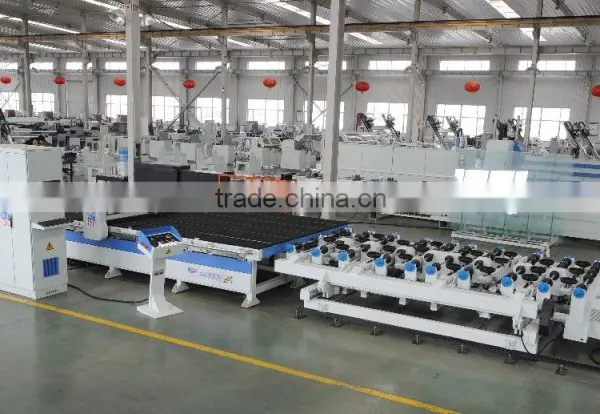

cnc glass cutting machine with optima system italy
Model: RGC-CNC
Features:

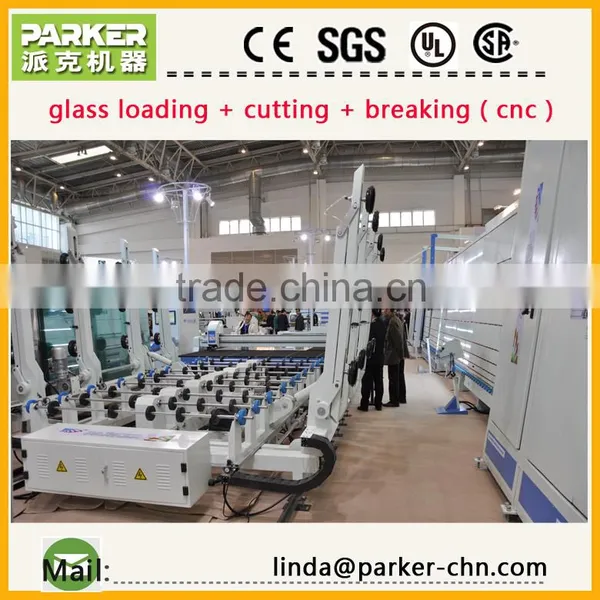

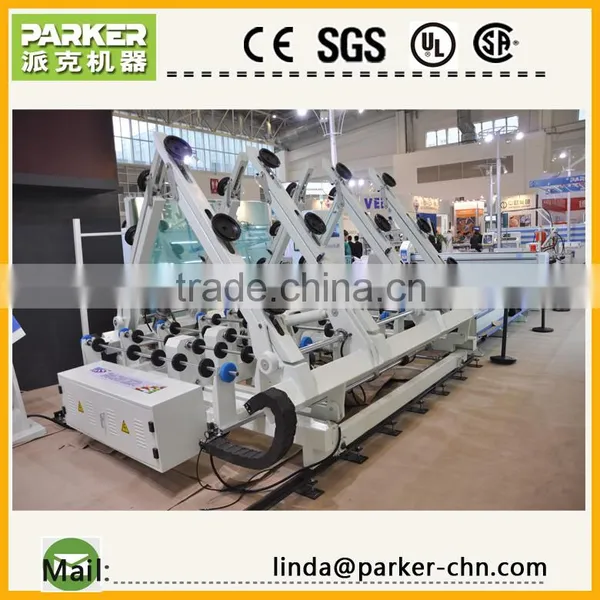

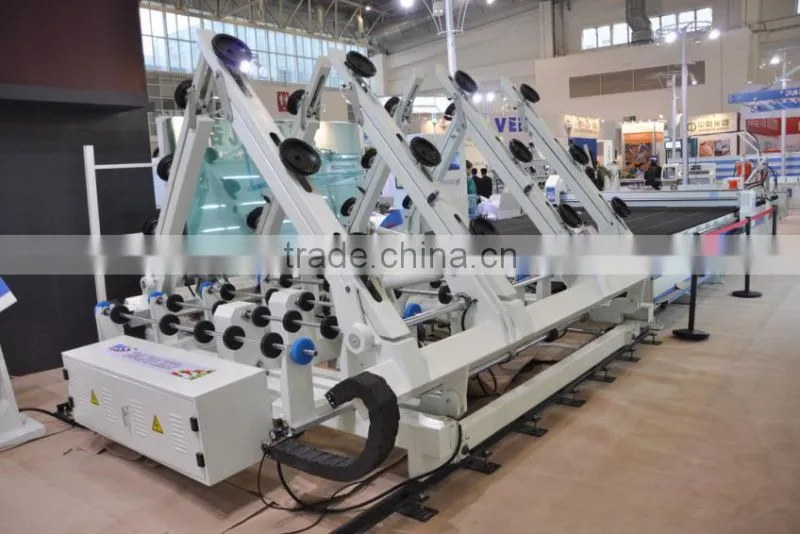

1. Three sections: double turning arms multi-position glass loading seciton, automatic cutting section and flotation severing section.
2. Adopt OPTIMA software, ADVANTECH industrial personal computer and OMRON servo motor.
3. It’s widely used for architectural glass, furniture glass, auto glass, solar glass and so on.
4. Glass orientation: photoelectronic scanning orientation and mechanism orientation.
5. Unique shape of glass can be scanned by photoelectronic scanning function and saved in CAD format.
6. It’s convenient to draw and operate with 300 kinds of picture templates.
7. Cutting operation: use air pressure and the spring SMC precision digital module. The cutter head rotate 360º, available for any shape cutting.
8. Conveying device: synchronous belt transmission automatically.
Parameters:
Name |
CNC glass cutting produce line |
Model |
RGC-CNC |
Power |
380V/50HZ/15-20KW |
Overall dimension |
About 13000x4000x2100mm |
Weight |
About 5000kg |
Glass loading section | |
Power |
380V/50HZ/9KW |
Max loading size |
2440x3660mm |
Min loading size |
1500x1500mm |
Loading thickness |
2-19mm |
Loading weight |
900Kg |
Air pressure |
0.5-0.8Mpa |
Glass cutting section | |
Power |
380V/50HZ/5KW |
Air pressure |
0.8Mpa |
Max. cutting size |
3660x2500mm |
Cutting bridge speed |
0-150m/min |
Cutter head speed |
160m/min |
Cutting thickness |
2-25mm |
Cutting accuracy |
±0.20mm |
Cutter head location error |
±0.15mm |

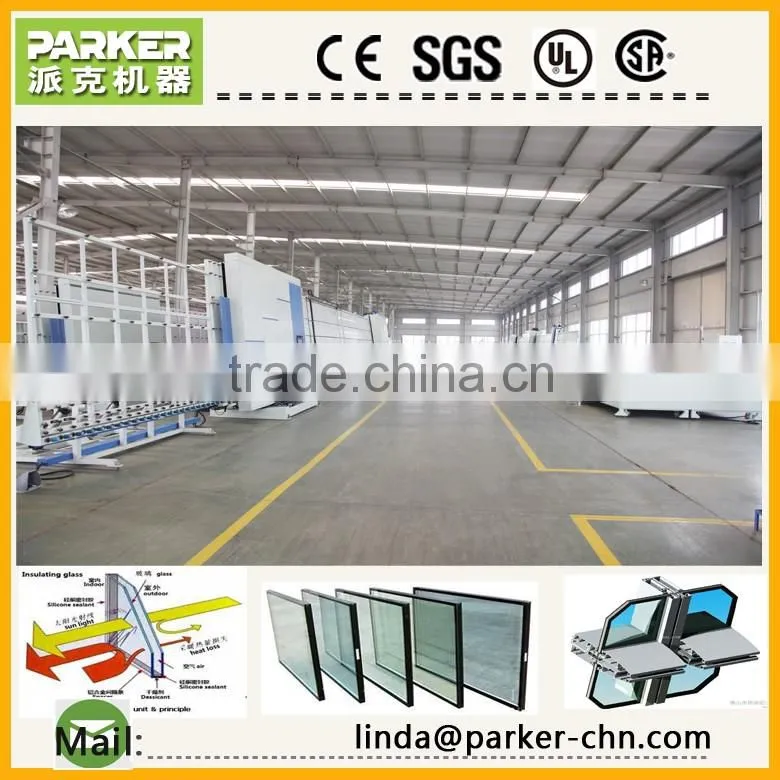

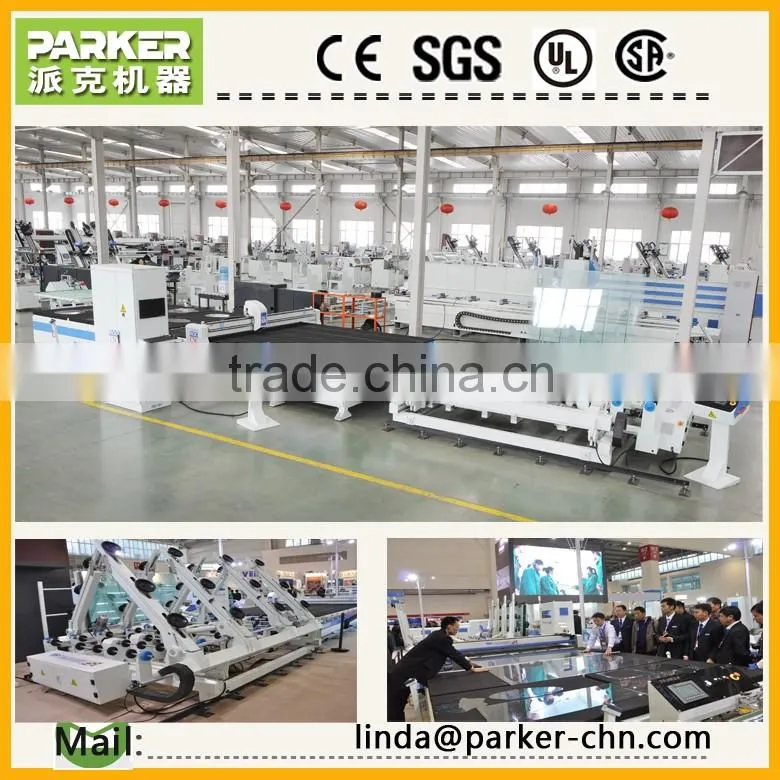

Factory:
Samples:

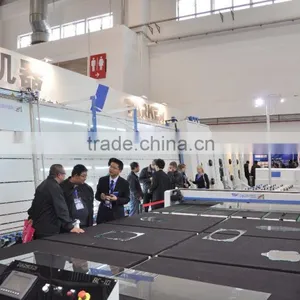

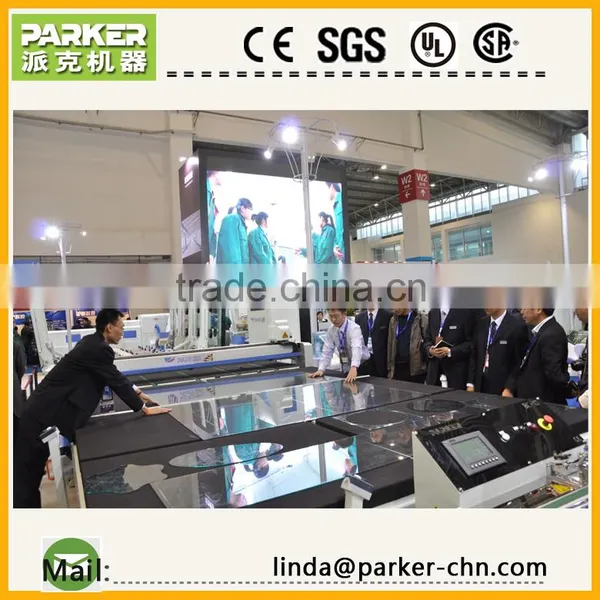

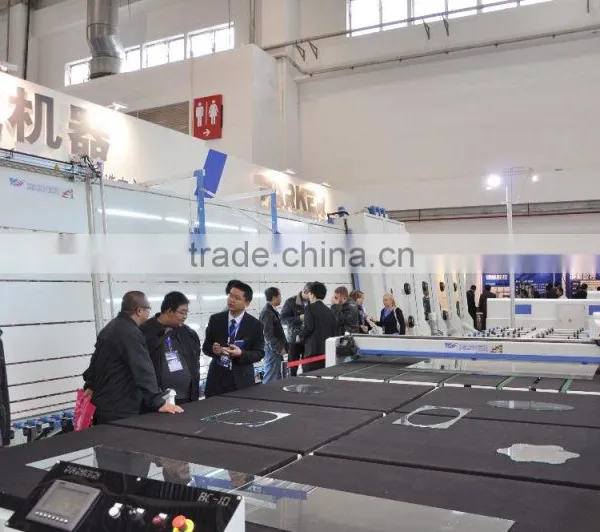

Exhibitions:
Factories of Customers:
Customers Visit:
Parker Service Team:
Packing & Loading:
