Double glass making machine line, double glass window machine line
- 50 Set / Sets per Month
- Qing Dao Shanodong China
- T/T
Product Details
| Condition: | New | Machine Type: | Other, Coating machine | Production Capacity: | For massive production line |
| Place of Origin: | Shandong, China | Brand Name: | Parker Machinery | Model Number: | BC-10 |
| Voltage: | 380V 50 Hz | Power(W): | 1.8 kW | Dimension(L*W*H): | 3000mmx680mmx1080mm |
| Weight: | 850 kg | Certification: | CE | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

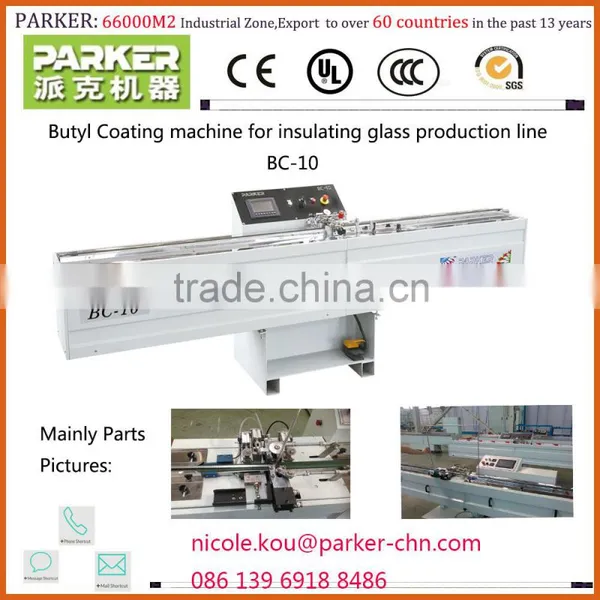

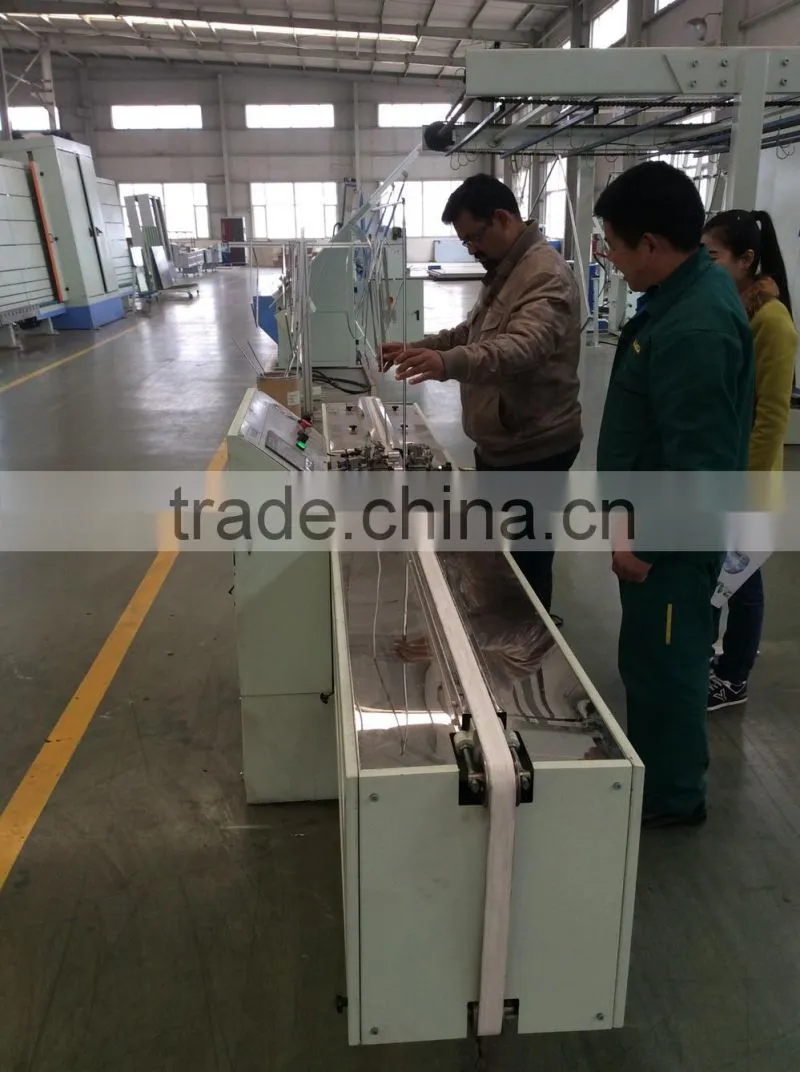

Hot Melt Extruder Coating Machine/insulated glass machine butyl sealant coating machine for insulating glass
This BC-10 butyl coating machine is specially used for spreading butyl rubber evenly on both sides of aluminum spacer frame. It is equipped with imported photoelectric and PCC control system and convey belt. This butyl rubber coating machine possesses many advantages, such as evenly coating glue, large amount of extruding glue, high production efficiency, convenient operation and maintenance, and high automation. In addition, Parker butyl coating machine is easy to operate with stable performance and good working result. It is a necessary machine for producing hollow glass. This butyl rubber coating machine is also available for arc aluminum spacer.
Characteristics
1. Controlled by PLC, digital display system can show us the quantity of the glue automatically.
2. BC-10 butyl coating machine has the features to slow down speed regulation and full automation of location, transmission and rubber spreading.
3. This butyl rubber coating machine adopts advanced imported air and hydraulic pressure system with even and stable pressure.
4. Butyl spreading is well-proportioned and the linearity is good.
5. Our butyl coating machines adopt the imported hydraulic and pneumatic supercharging system.
6. Temperature and pressure can be adjusted automatically.
7. The butyl jar warning system of this butyl rubber coating machine will work when glue material is used up.
Parameters of BC-10 Butyl Coating Machine
Voltage | 380V 50 Hz |
Power | 1.8 kW |
Air Pressure | 0.5 to 0.8 Mpa |
Air Consumption | 50 L/min |
Transmit Speed | 0 to 35 m/min |
Temperature | 100°C to 140°C |
Squeeze Pressure | 8 to 15 Mpa |
Adjustable Range | 3 mm to 30 mm |
Overall Dimension | 3000 mm × 680 mm × 1080 mm |
Weight of Butyl Rubber Coating Machine | 850 kg |
1. One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3. Free maintenance service.
4. Free training course at our factory with professional engineers.
5. We provide the consumable parts at agent price when you need replacement.
6. Engineer available overseas.
7. When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.
8. What to do if you get problems with the machine?
a. We will send you free spare parts if your machines are in guarantee time.
b. We can send our engineers to repair your machines.
Skype: nicole4.parker
WhatsApp/WeChat: 13969188486
