Main feature:
1. It is used for window-door,curtain wall, aluminum profile, rail transportation,refrigeration components,bathroom hardware,ship building and ship repair,aluminum broze accessories,industrial aluminum,nonferrous metal and light section steel structure and other processing for drilling,milling and other list of processing.
2.The whole servo control system from OMRON Japan ensures the technique and quality. NC Factory Automation control system and CADCAM software is adopted. Switch Chinese and English as you want. This machine is easy to operate.
3.This machine is equiped with movable feeding workable and waste box.
4.Workers can finish drilling,milling,tapping and other procedures afterone clamping.
5.The machine body is welded with 8mm thick high-quality steel tube after treatment. This can ensures the stable structure and rigidity.

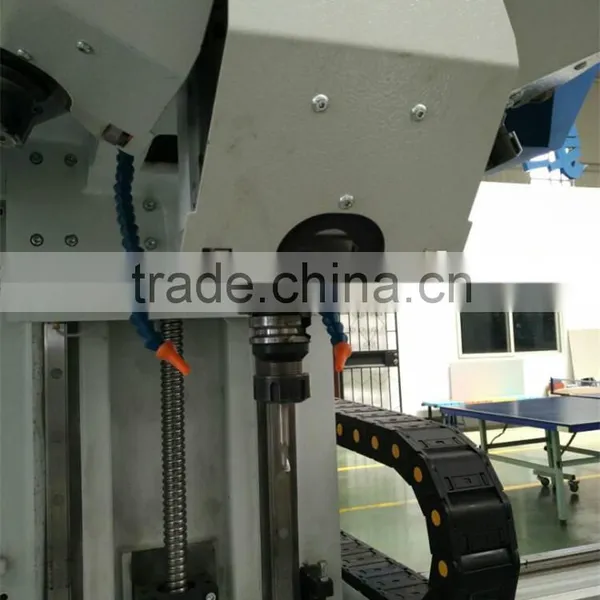

6.Ball srew from ABBA,guide rail from HIWIN and rack from UUC ensures the high processing accuracy.

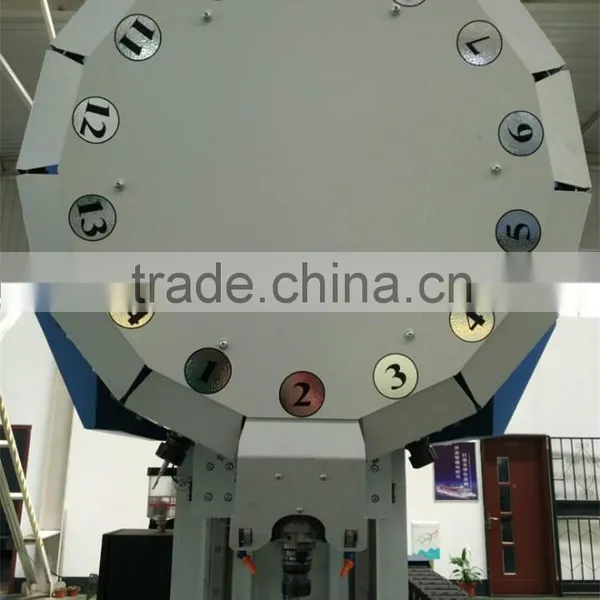

7.This machine adopts 14-position turret toll magazine with shoter time for cutter change. Cutter diameter is from 4mm to 16mm. This machine can process profiles with thickness 20mm.
8.This machine adopts double location and continues working when feeding interactively which improves the efficiency greatly.
9.This machine can continue working when power restart. The linkage(process and interpolation)speed can be up to 1000m/min. Lock knife block is also equipped to better change the cutter.
| X axsis | 7050mm |
| Y axsis | 420mm |
| Z axsis | 400mm |
| X axis running speed | 0~60m/min |
| Y axis running speed | 0-30m/min |
| Z axis running speed | 0-20m/min |
| Cutter station | 14cutters ,automatic change by program |
| Air supply | 0.5-0.8Mpa |
| Voltage | 380V 50HZ |
| Total power | 13 kw |
| Clamp station | 8 |
| Lubrication and cooling | half dry coolling system |
| Positioning accuracy | ±0.02mm |
| Overall dimension | 10000mmx2300mmx2800mm |
| Cylindricity | ±0.01mm |
| Spindle speed | 0~9000rpm |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
