cnc aluminum window door curtain wall machining center
- 50 Set / Sets per Month
- qingdao china
- MX400 Small Drilling & Milling Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Drilling & Milling Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Drilling & Milling Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Drilling & Milling Center
- SMT panasonic CM202-DS
- vmc650 CNC machining center|CNC machining center 650
Product Details
Condition: | New | Type: | Horizontal | Place of Origin: | China |
Brand Name: | PARKER | Model Number: | DMCC82 | Voltage: | 380V |
Power(W): | 11kw | Dimension(L*W*H): | 5380x1890x2240mm | Weight: | 3000kg |
Certification: | ISO CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

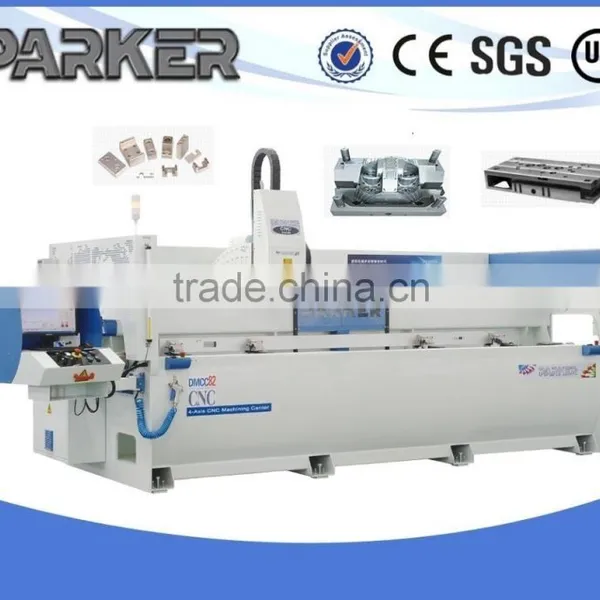

1.4 axis CNC machining center DMCC82
2.8 cutters in the magazine tool
3.milling and drilling
ing speed:120m/min
Features:
1.For curtain wall, aluminium profile and so on.
2.Drilling and milling functions.Electric system Schneider
3.Spindle: Italy HSD spindle, 18000 rpm/min.
4.Industrial personal computer: Taiwan ADVANTECH.
5.Servo motor and driver: Japan OMRON.
6.Ball screw and square guide rail:Japan ABBA.
7.A axis rotate the workpiece between -90°and +90°according to request, so it is available to columnar workpiece.
8.Half dry cooling system, with plant oil, no damage to workers and environment.
9.Continue to work from the breakpoint.
10.Equipped with professional software CAD-CAM.
11.Light curtain to protect workers effectively.
12.Lock Knife block is convenient to change cutters.
13.Add a door to the tool magazine, with 8 pcs of cutters
14 PARKER OWN PATENT
Parameters:
Name | 4 axis CNC machining center |
Model | DMCC82 |
Power | 380V/50Hz/11kw voltage can adjust |
Air pressure | 0.5-0.8Mpa |
x axis stroke | 3600mm |
X axis speed | 120m/min |
Y axis stroke | 380mm |
Y axis speed | 80m/min |
Z axis stroke | 400mm |
Z axis speed | 60m/min |
Max. processing speed | 3m/min |
Location error | ±0.05mm |
Resetting error | ±0.02mm |
Processing error | ±0.1mm |
Surface roughness | Ra12.5μm |
Overall dimension | 5380x1890x2240mm |
Weight | 3000kg |
