corner crimping machine aluminum windows door corner crimping machine
Introduction:
LJJ-120 aluminum corner crimping machine is used to crimp aluminum window door frame corners.
Video Link for Machines:
https://youtu.be/_SfRQ79ljh8 ( PARKER MACHINERY CO.,LTD )
https://youtu.be/YYm0B5aBZgQ ( Single-corner crimping machine for aluminum window door frames )
https://youtu.be/S_aNT01UDos ( Four-corner crimping machine for aluminum window door frames )
Model: LJJ-120
Feature:
♦ aluminum windows corner crimping machine - PARKER Used for connection of 90°angle structure of aluminium doors and windows.
♦ The new linkage structure makes corner-assembling synchronous.
♦ Left and right punching heads feed synchronous to avoid deforming in corner-assembling procedure to make window corner connection more solid.
♦ Synchronously feeding structure makes the adjustment simple and easy.
♦ The blades can be adjusted up and down relatively by the threads.
♦ It can be equipped with single-blade multipoint blades, making the corner-forming more reliable, the work more efficient, the manufactures more precision and the quality more excellent.
Parameters:
Production Procedures for Making Aluminum Windows Doors♦ Voltage:
380V 50HZ
♦ Power:
1.5KW
♦ Air pressure:
0.5-0.8MPa
♦ Air consumption:
60L/min
♦ Hydraulic system pressure:
15MPa
♦ Oil tank capacity:
20L
♦ Max. width of profile:
120mm
♦ Seam of crimping error:
≤0.15mm
♦ Overall dimension:
1000mmx1200mmx1200mm

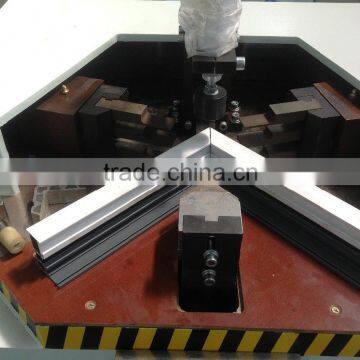

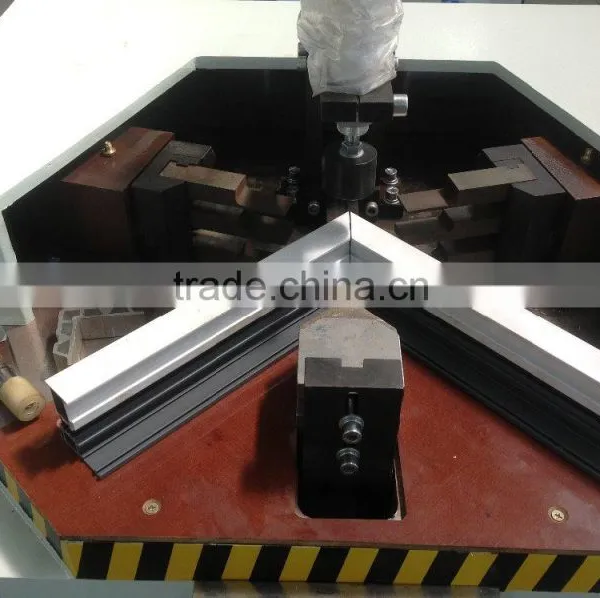

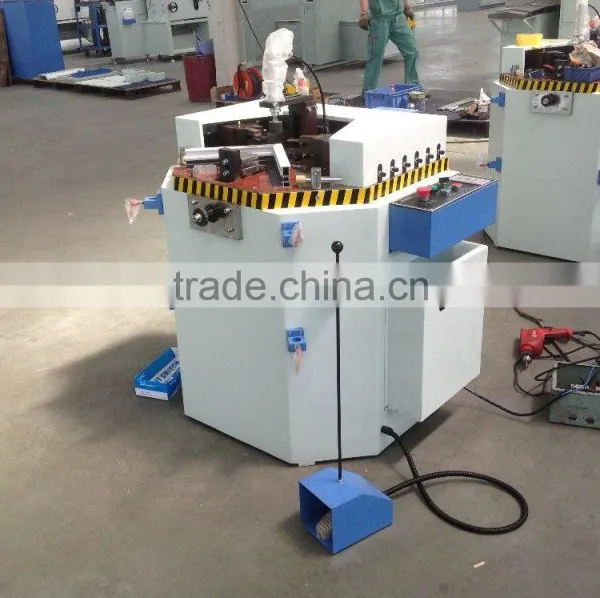

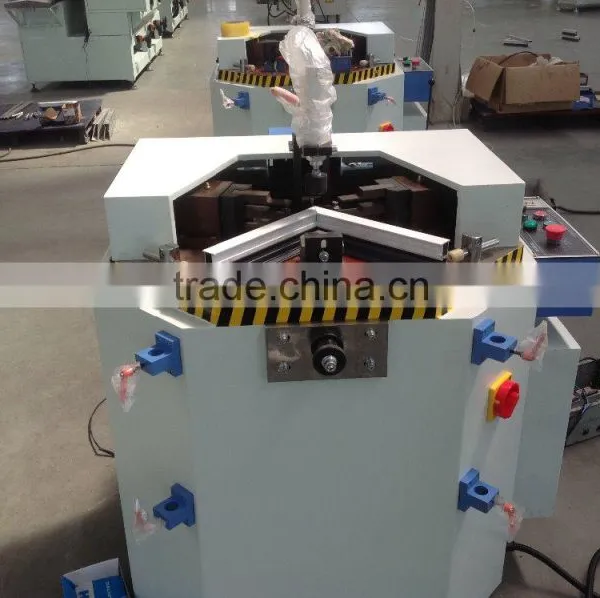

Related Machine Pictures:
