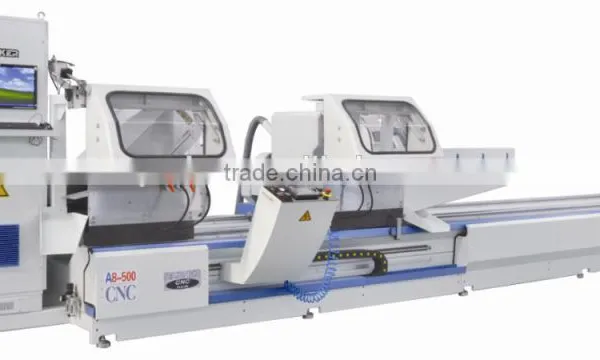

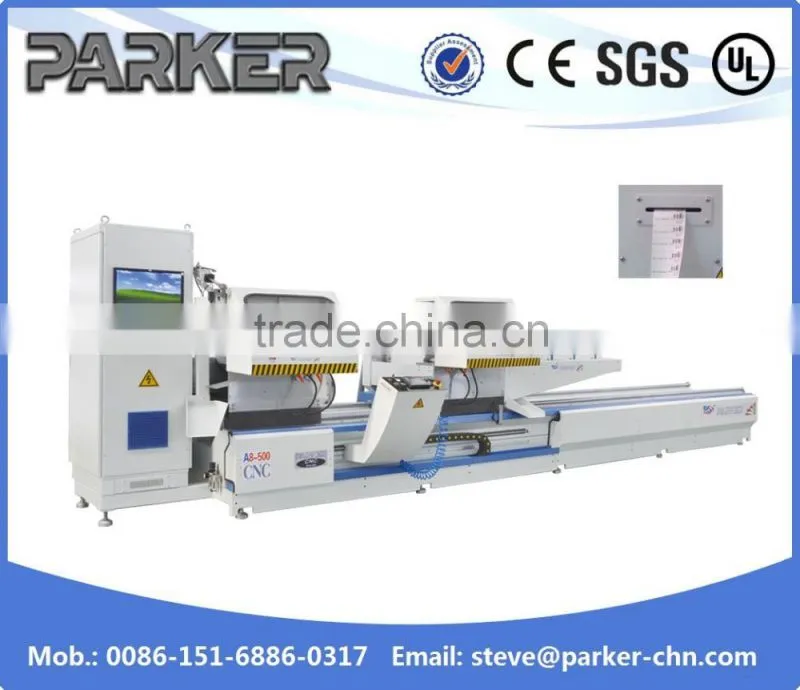

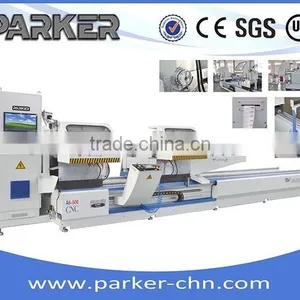

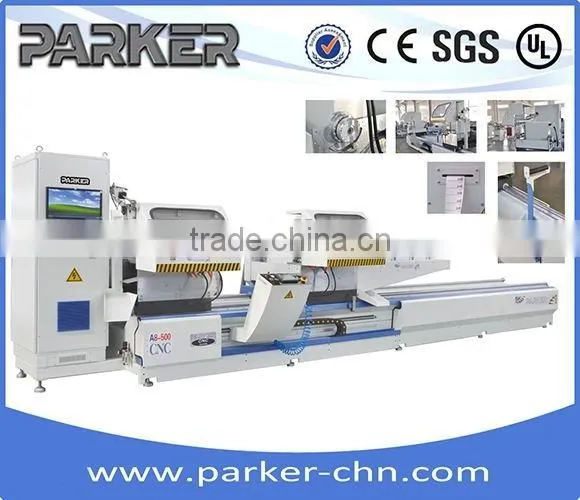

CNC Tri-Axis Arbitrary Angle Cutting Saw Machinery
US$ 13,000 - 40,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
PARKER
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Alu-alloy Multi-Function Single Head Saw Machines Single Head Cutting Saw MachineryNegotiableMOQ: 1 Unit -
Punching Machine for Aluminium Window & Door Lock / Water SlotUS$ 2,000 - 4,000MOQ: 1 Set
-
Portes en Aluminium Machine de Fabrication FenetreUS$ 6,000 - 13,000MOQ: 1 Set
-
Aluminum Window Door Corner Key Cutting Saw MachinesUS$ 6,400 - 10,000MOQ: 1 Set
-
Euipment for Making Aluminium Window Door Cutting MachineUS$ 6,000 - 13,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
PARKER
Model Number
A8-500
Voltage
380V 50HZ
Rated Power
6.8KW
Dimension(L*W*H)
6800mmX1500mmX2040mm
Weight
2200KG
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

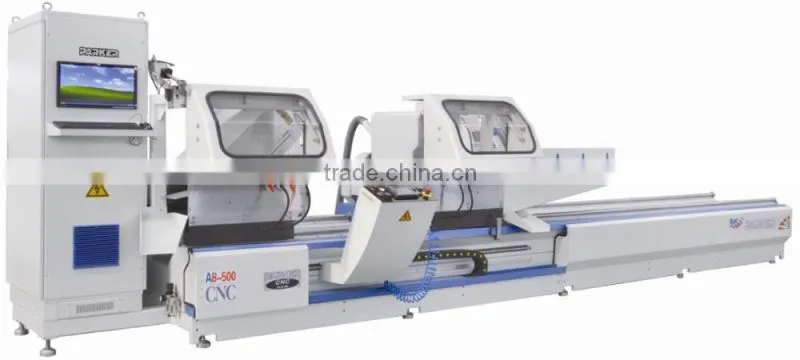

Name:CNC Tri-Axis Arbitrary Angle Cutting Saw machinery
Model: A8-500
Features:
1) The CNC Tri-Axis Arbitrary Angle Cutting Saw machinery is the most advanced double-head cutting saw.
2) The control system of the cutting saw adopts the new closed-loop system, and can ensure the accuracy of repeat length.
3) The imported blade with high precision makes the cutting surface smoothly.
4) The servomotor of the cutting saw drives the speed reducer to adjust the cutting angle in 45°-157.5°.
5) The imported control system can ensure the cutting quality.
6) Several profile processing dimensions can be input one time and make continuous cutting.
7) The imported service motor with high moving speed and high precision should drive the sawing head.
8) The machine has label printing function (option).
Features:
1) The CNC Tri-Axis Arbitrary Angle Cutting Saw machinery is the most advanced double-head cutting saw.
2) The control system of the cutting saw adopts the new closed-loop system, and can ensure the accuracy of repeat length.
3) The imported blade with high precision makes the cutting surface smoothly.
4) The servomotor of the cutting saw drives the speed reducer to adjust the cutting angle in 45°-157.5°.
5) The imported control system can ensure the cutting quality.
6) Several profile processing dimensions can be input one time and make continuous cutting.
7) The imported service motor with high moving speed and high precision should drive the sawing head.
8) The machine has label printing function (option).

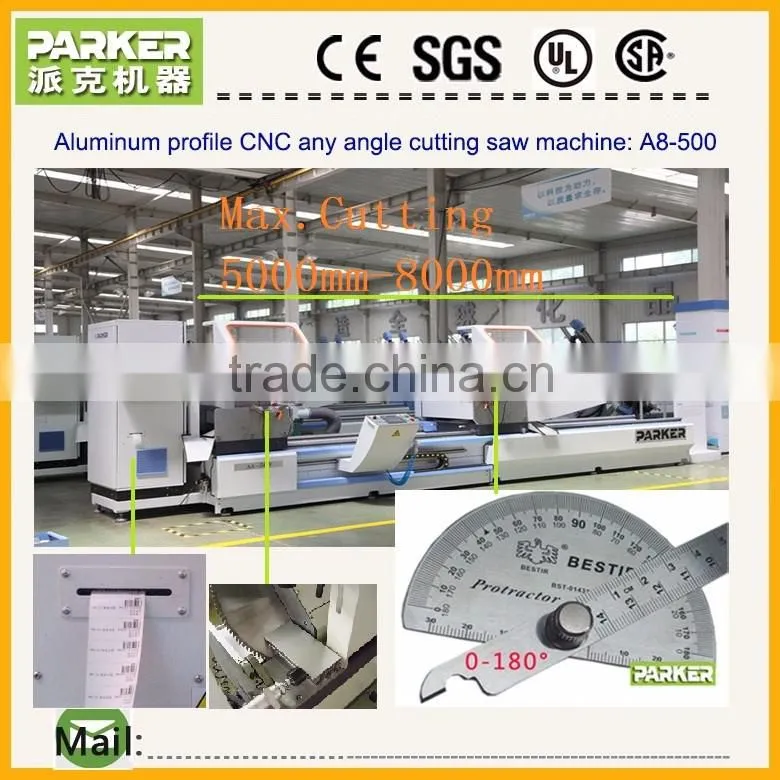

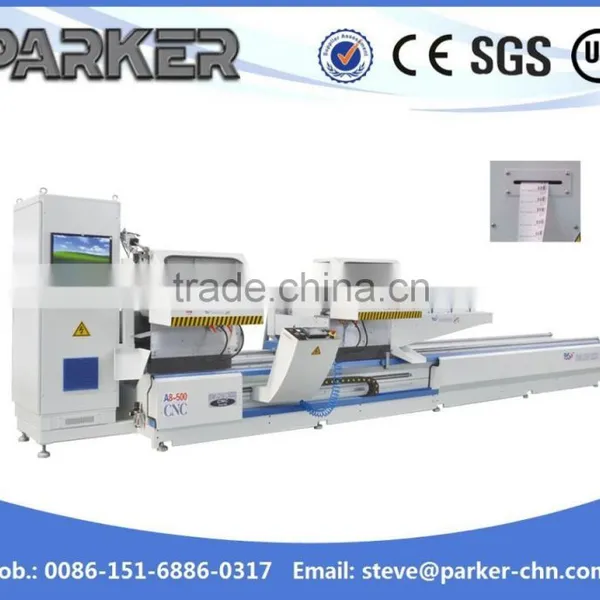

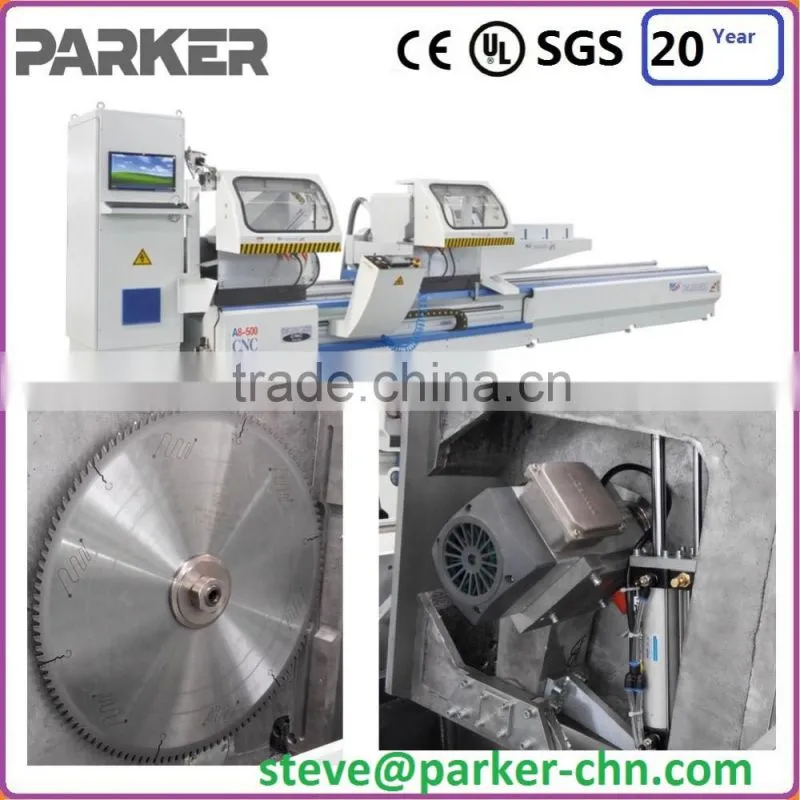

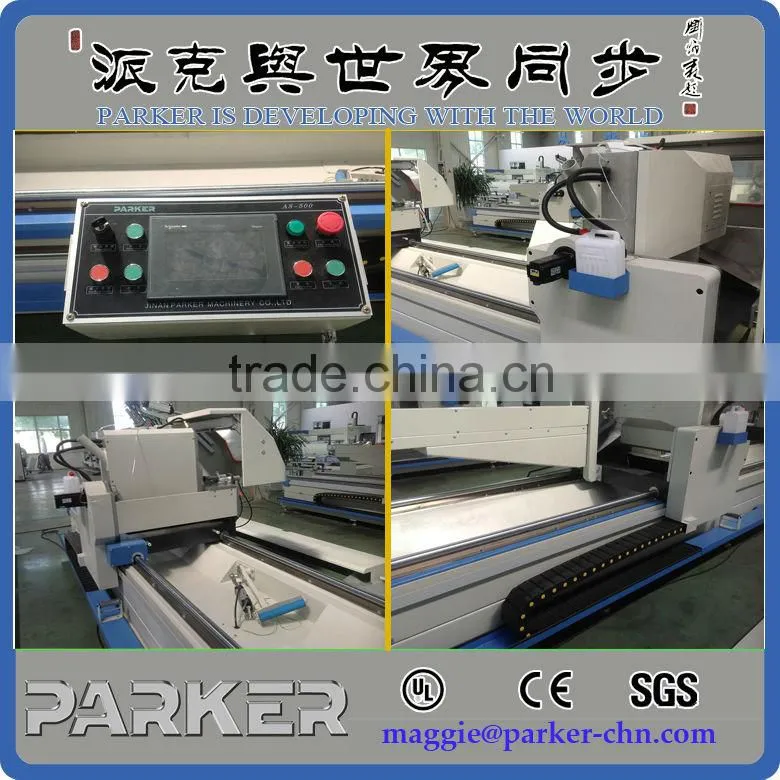

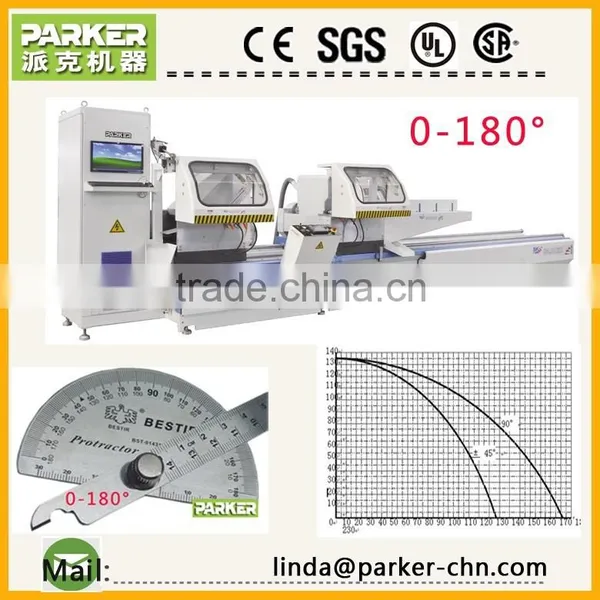

Photos

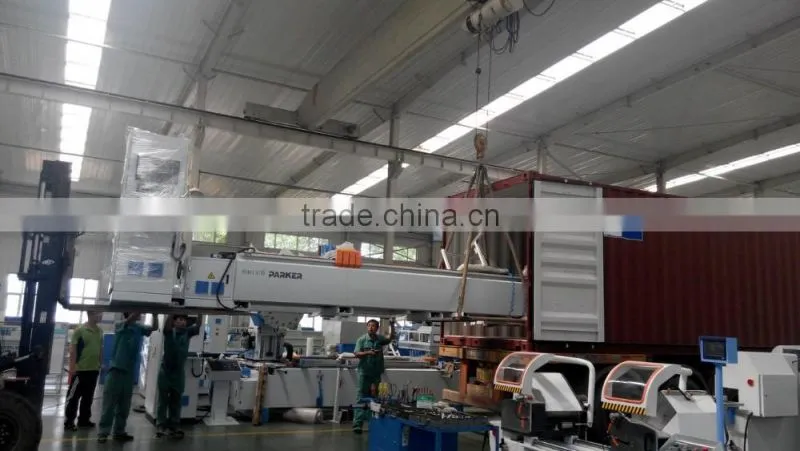

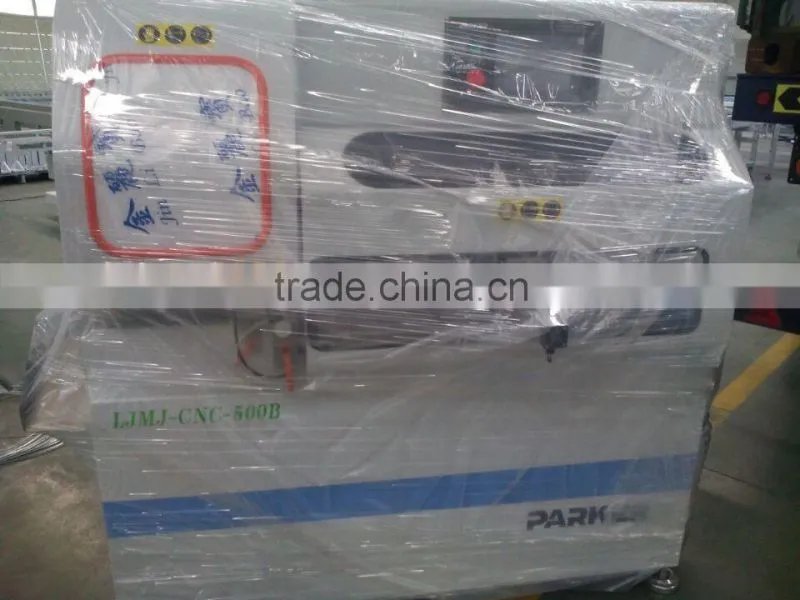

Packing & Delivery
Technique Parament
Voltage·········································380V 50HZ
Power···········································6.8KW
Air pressure·································· 0.5-0.8MPa
Cutter moving speed·····················0-2m/min
Cutting length································ Max5000mm Min480 at 90°
···································Max5000mm Min(double height of profile) at 45°
Cutting width·································· 120mm
Cutting height································ 230mm
Cutting angle·································· 45°-157.5°
Overall dimension·························· 6800mmX1500mmX2040mm

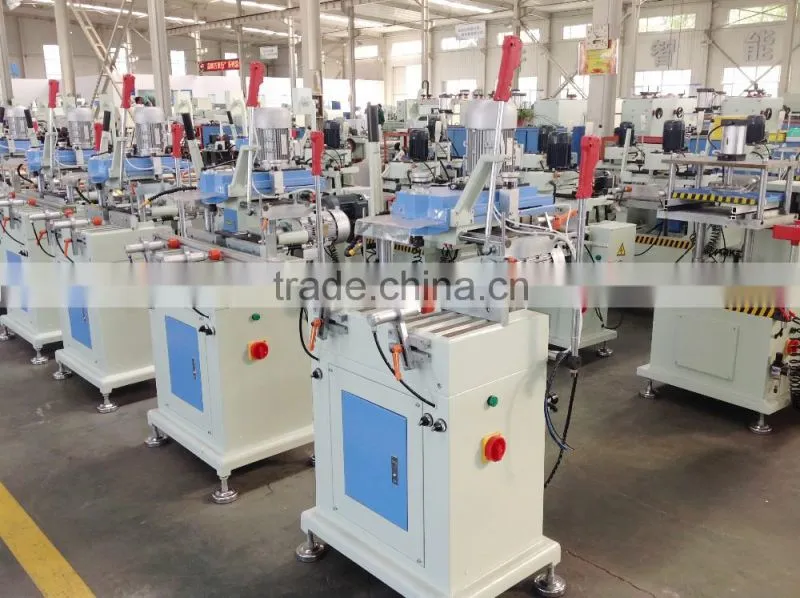

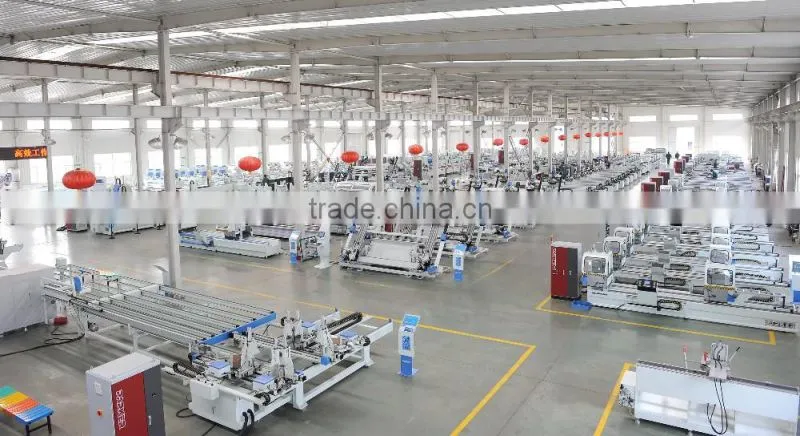

Our Company
