Aluminium Door and Window Making Machine Window Frame Making Machine

Aluminium Door and Window Making Machine Window Frame Making Machine thumbnail-1
Aluminium Door and Window Making Machine Window Frame Making Machine thumbnail-2
Aluminium Door and Window Making Machine Window Frame Making Machine thumbnail-3
Aluminium Door and Window Making Machine Window Frame Making Machine thumbnail-4
Aluminium Door and Window Making Machine Window Frame Making Machine thumbnail-5
Aluminium Door and Window Making Machine Window Frame Making Machine thumbnail-6
Aluminium Door and Window Making Machine Window Frame Making Machine photo-1
Aluminium Door and Window Making Machine Window Frame Making Machine photo-2
Aluminium Door and Window Making Machine Window Frame Making Machine photo-3
Aluminium Door and Window Making Machine Window Frame Making Machine photo-4
Aluminium Door and Window Making Machine Window Frame Making Machine photo-5
Aluminium Door and Window Making Machine Window Frame Making Machine photo-6
US$ 2,000 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
PARKER
Model Number:
LJJ-120
Contact Supplier Request Quote Chat Now
Jinan Parker Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name PARKER
Model Number LJJ-120
After-sales Service Provided Overseas service center available

  aluminium door and window making machine window frame making machine

 aluminium door and window making machine window frame making machine



aluminium door and window making machine window frame making machine

Introduction:

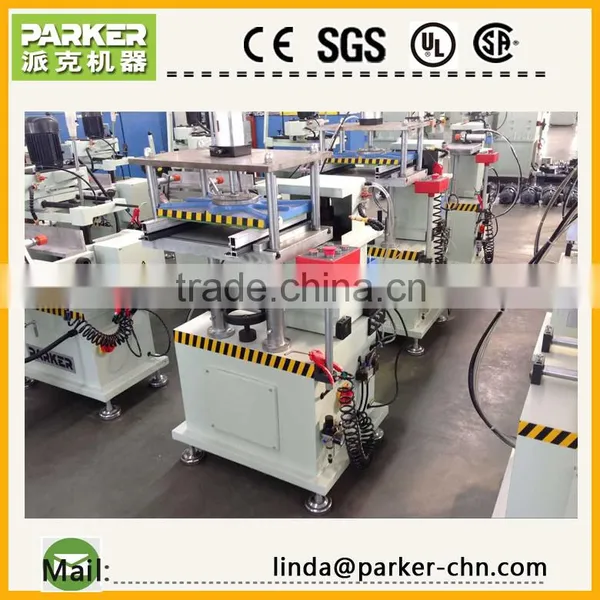

LJJ-120 aluminum corner crimping machine is used to crimp aluminum window door frame corners.

Video Link for Machines:

https://youtu.be/_SfRQ79ljh8         ( PARKER MACHINERY CO.,LTD )



https://youtu.be/YYm0B5aBZgQ     ( Single-corner crimping machine for aluminum window door making )



https://youtu.be/S_aNT01UDos      ( Four-corner crimping machine for aluminum window door making)



Model: LJJ-120

Feature:

    • ♦ aluminum windows corner crimping machine - PARKER Used for connection of 90°angle structure of aluminium doors and windows.

      ♦ The new linkage structure makes corner-assembling synchronous.

      ♦ Left and right punching heads feed synchronous to avoid deforming in corner-assembling procedure to make window corner connection more solid.

      ♦ Synchronously feeding structure makes the adjustment simple and easy.

      ♦ The blades can be adjusted up and down relatively by the threads.

      ♦ It can be equipped with single-blade multipoint blades, making the corner-forming more reliable, the work more efficient, the manufactures more precision and the quality more excellent.

    Parameters:



    ♦ Voltage:

    380V 50HZ

    ♦ Power:

    1.5KW

    ♦ Air pressure:

    0.5-0.8MPa

    ♦ Air consumption:

    60L/min

    ♦ Hydraulic system pressure:

    15MPa

    ♦ Oil tank capacity:

    20L

    ♦ Max. width of profile:

    120mm

    ♦ Seam of crimping error:

    ≤0.15mm

    ♦ Overall dimension:

    1000mmx1200mmx1200mm
      Production Procedures for Making Aluminum Windows Doors

aluminium door and window making machine window frame making machine

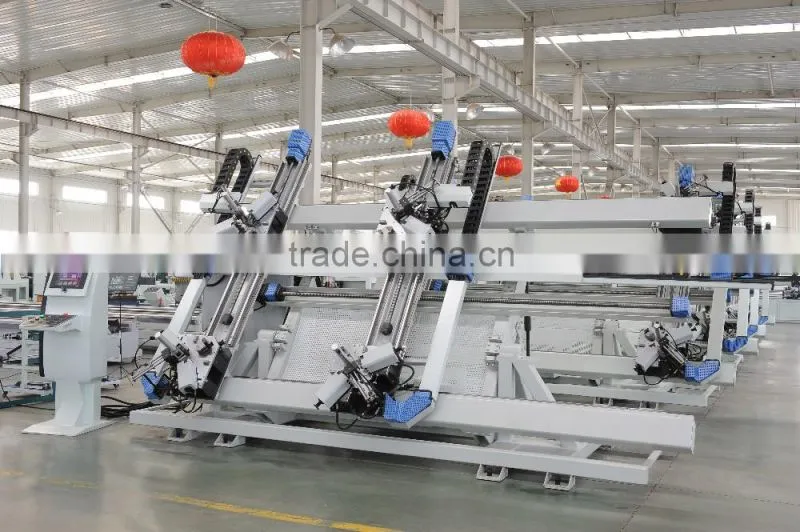

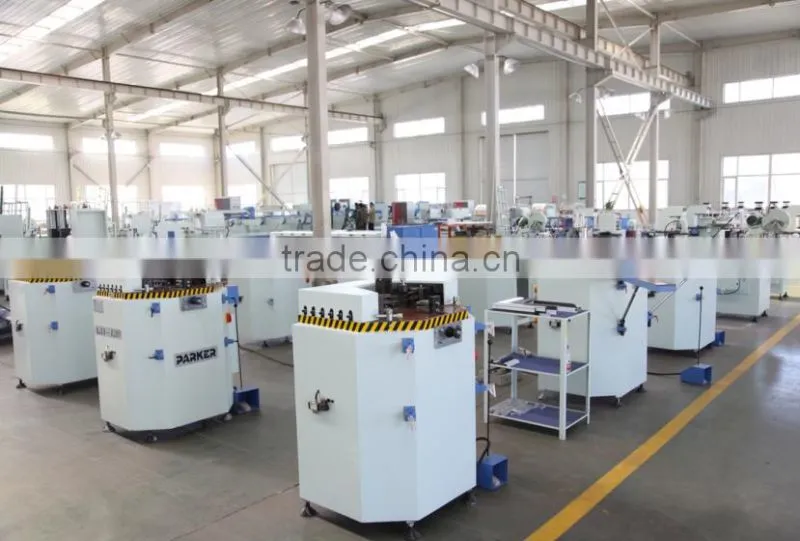

Related Machine Pictures:

aluminium door and window making machine window frame making machine



aluminium door and window making machine window frame making machine



aluminium door and window making machine window frame making machine



aluminium door and window making machine window frame making machine



Packaging & Shipping

aluminium door and window making machine window frame making machine

Our Services

aluminium door and window making machine window frame making machine

aluminium door and window making machine window frame making machine



aluminium door and window making machine window frame making machine

Company Information

aluminium door and window making machine window frame making machine



aluminium door and window making machine window frame making machine

JINAN PARKER MACHINERY Co.,LTD

Website:  ;

Contact: Linda

Mobile / Whatsapp: 0086-182-5416-1395

Skype: lindaredouble

Email: linda aluminium door and window making machine window frame making machine

          lindaredouble aluminium door and window making machine window frame making machine
