Summary:
1. This polyethylene air bubble sheet making machine adopts once-through shape technique, has high efficiency, excellent product quality. It has features as scientific, reasonable structure design, smooth, reliable running, convenient operation & maintenance.

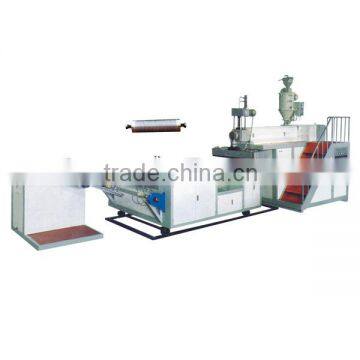

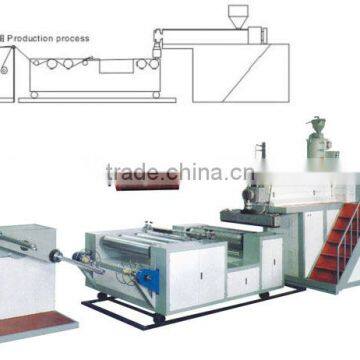

2. The production line includes extruder, vacuum inspirtation, shape mould, traction, waste material rewinder device etc.

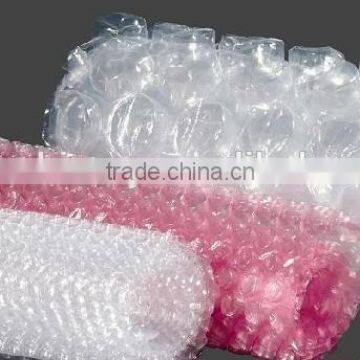

3. PE bubble film which is divided into two kinds: ordinary air bubble film (air cushion film) and composite PE air bubble film. It’s a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat sealing performance, but also has such advantages as good corrosion resistance and transparency etc. So it has been widely used for packing, household wares, post parcel, precise instrument, bicycle, polyurethane furniture etc.
Optional devices:
1. Automatic Material Feeder
2. Electrical Screen Changer
3. Automatic Overturn Rewinder
Main Technical Parameters:
Model |
TR-BF55-600 |
TR-BF60-1000 |
TR-BF65-1200 |
TR-BF75-1500 |
Film Width (mm) |
600 |
1000 |
1200 |
1500 |
Screw Diameter |
Φ55 |
Φ60 |
Φ65 |
Φ75 |
Screw L/D Ratio |
28:1 |
|||
Main Motor Power (kw) |
11 |
15 |
15 |
18.5 |
Main Bubble Size (sizes can be customized) |
Φ6×3.2mm / Φ10×3.4mm / Φ25×10mm / Φ30×10mm |
|||
Output (kg/hr) |
20~40 |
30~50 |
30~60 |
50~80 |
Total Power (kw) |
40 |
45 |
55 |
65 |
Machine Weight (kg) |
2800 |
3500 |
3800 |
5000 |
Overall Dimension (m) |
7.0×2.0×2.5 |
7.5×2.3×2.5 |
7.5×2.5×2.5 |
7.5×2.8×2.5 |
