Specifications

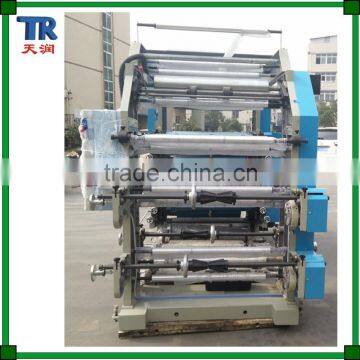

4 color flexographic printing machines
printing on plastic film tube, paper, nonwoven etc. roll material
print 1 to 4 colors
flexographic printing machines
4 color flexographic printing machines
flexographic printing machines 4 color
USE:
Introduce sentitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
1. Easy operation, flexible starting accurate colour register.
2. The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4. The printing ink is spread by the knurled cylindder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 degree continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameters:
| Model | YT-4600 | YT-4800 | YT-41000 |
| Max. Printing Width | 560mm | 750mm | 950mm |
| Printing Length | 220-910mm | 220-910mm | 220-910mm |
| Max. Base Material Diameter | φ 450mm | φ 450mm | φ 450mm |
| Printing Speed | 5-50m/min | 5-50m/min | 5-50m/min |
| Plate Thickness (including two-sided glue paper) | 2.38mm | 2.38mm | 2.38mm |
| Total Power | 9.8kw | 10.5kw | 11.2kw |
| Machine Weight | 3500kg | 4000kg | 4500kg |
| Overall Dimension (L× W× H) | 4.5× 1.6× 2.4m | 4.5× 1.8× 2.4m | 4.5× 2.0× 2.4m |
| Extra optional equipments: 1) EPC web guider 2) Auto Tension Controller 3) Pneumatic 4) Air Shaft | |||
