Tubualr Motor & Industrial Roller Shutter Motor & Garage Door Motor & Tubular Motor for Roller Shutter

FOB Price

US$ 97 - 117 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCVE	Model Number	SF92-N-M
Type	Induction Motor	Frequency	50Hz
Output Power	450-980W	Protect Feature	Totally Enclosed
Phase	Single-phase	Certification	CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, TUV
AC Voltage	208-230 / 240 V	Place of Origin	Zhejiang, China

1:230Volt/50Hz
2:with manual override and limit switch
3:cotrol rolling door and shutter
4:Excellent apearence and best price

92mm tubular motor for roller shutter & 230Nm shutter motor

•Excellent appearence with the crown and color
•Control rolling door and shutter

•remote radio control of opertors and smooth to left

•Precise limit switch,repeat limiting precise,more reliable

Motor desprication

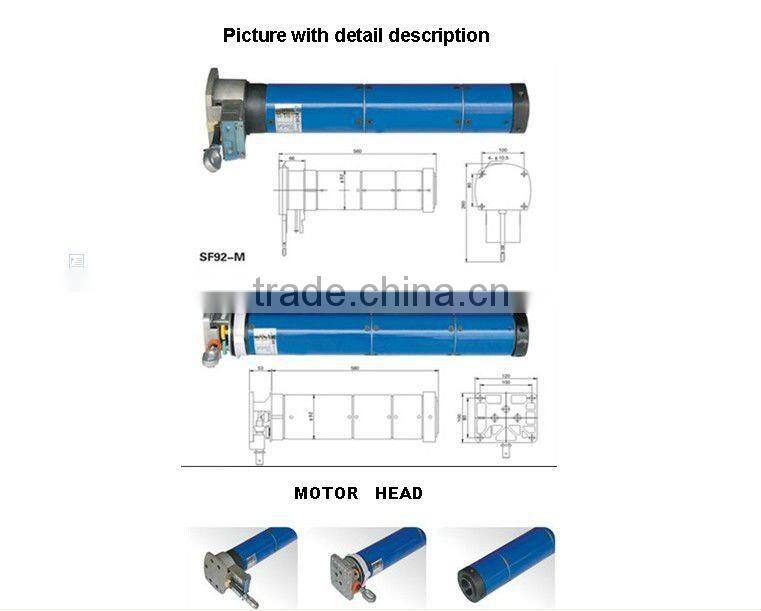

92mm Diameter Tubular Motor specification
	Model	(Nm)	(Rpm)	(V)	(Hz)	(W)	(A)	(Kg)
1	SF92-N-140M	140	12	230	50	580	2.6	13.5
2	SF92-N-180M	180	12	230	50	626	2.8	13.5
3	SF92-N-230M	230	12	230	50	830	3.6	13.5
4	SF92-N-250M	250	8	230	50	850	3.7	14.6
5	SF92-N-280M	280	8	230	50	778	3.75	14.6
6	SF92-N-300M	300	8	230	50	880	3.8	14.6
7	SF92-N-330M	330	8	230	50	908	4.0	14.6

Certificate:CCC/CE/TUV/ROHS/UL

Delivery lead time: 25-30 days

We provide 5-year warranty

If you need more information about the quality and price that you can contact to us!
