Tubular Motor/92mm Tubular Motor/330Nm Tubular Motor/tubular Motor for Roller Shutter/ac Tubula Motor

FOB Price

US$ 97 - 110 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCVE	Model Number	SF92-M
Frequency	50	Output Power	910
Protect Feature	Totally Enclosed	Phase	Single-phase
Certification	CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, TUV	AC Voltage	208-230 / 240 V
Place of Origin	Zhejiang, China

1:Excellent appearence
2:Equipped with limit switch outside
3:with manual override
4:230V/50Hz
5:Metal drive head

Tubular motor/92mm tubular motor/330Nm tubular motor/tubular motor for roller shutter/ac tubula motor

•Equipped with limit switch and manual override

•Can be controlled by radio and external receiver

•Excellent appearence (Color,crown and addapter)

•With metal head

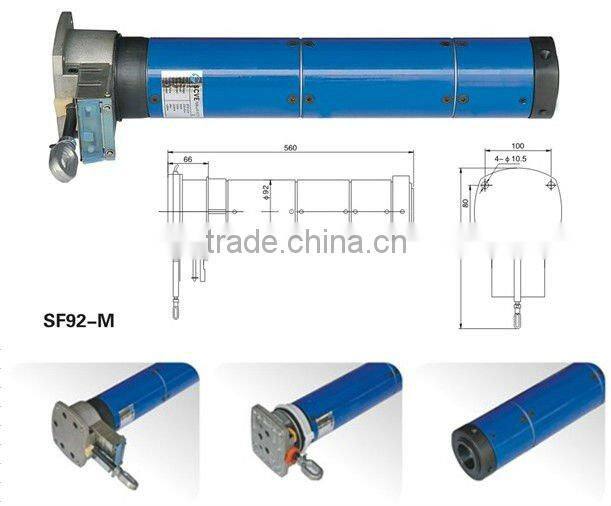

92mmTubular motor version

92mm Diameter Tubular Motor specification
	Model	(Nm)	(Rpm)	(V)	(Hz)	(W)	(A)	(Kg)
1	SF92-140M	140	12	230	50	580	2.6	13.5
2	SF92-180M	180	12	230	50	626	2.8	13.5
3	SF92-230M	230	12	230	50	830	3.8	13.5
4	SF92-250M	250	8	230	50	850	3.9	14.6
5	SF92-280M	280	8	230	50	778	4.1	14.6
6	SF92-300M	300	8	230	50	880	3.5	14.6
7	SF92-330M	330	8	230	50	910	4.0	14.6

We provide 5-year warranty

Certificate: TUV/UL/ CE/CCC/ GS/ ROHS/FCC

Packaging:neutral box or gift box as your demands.

Payment terms: T/T (with 30% deposit,70% B/L copy),L/C at sight

Loading port: Shanghai

Sample lead time: 5-7 days

Order lead time: 25-30 days

Offer quotation on FOB Shanghai or CIF port.
