Christmas sale !! Join-hedden roll forming machine with 380V 50HZ
- NEW PORT TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
JCX large size JCH iron sheet roof tile forming machine
-
0.25-0.8mm thickness IBR and corrugated double layer roof panel roll forming machinery
-
0.25-0.8mm thickness IBR and corrugated double layer sheet roof tile roll forming machine
-
IBR and corrugated double layer sheet roofing tile roll forming machine
-
0.25-0.8mm thickness double layer sheet roof panel roll forming machine
-
New type- double tiles sheet forming machinery
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-12m/min,2000pcs/day(8 hours work) | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | JCX--970 | |
| Power(W) | 4KW | Voltage | 380V 50HZ 3phase 1 phase voltage 220V | |
| Dimension(L*W*H) | 10500*1400*1200M | Weight | 5-8T | |
| Certification | TUV | Warranty | One year warranty maintenance free life | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Welcome to review our roll forming machinewe are manufacture
Customers decide
Saving time and cost
complete service
Welcome to view 820 join-hedden roll forming machine
according to customers requirements ,costom roll forming machine
panel picture
1.Technical parameters:
| 1 | Main moter power | 4KW | |
| 2 | Hydraulic station power | 3KW | |
| 3 | Hydraulic oil pump | CB-E310 | |
| 4 | Sprocket | P-50.8 | |
| 5 | Roller station | 12-16 | |
| 6 | Yield strength | 32MPa | |
| 7 | Diameter of principal axis | 95MM | |
| 8 | Material of roller | 45#steel hard chrome plating | |
| 10 | Processing speed | 8-12m/min | |
| 11 | Thickness | 0.3-4mm | |
| 12 | Installation dimension about(L*W*H) | 10.5*1.4*1.2M | |
| 13 | Material of blade | Cr12 | |
| 14 | Total weight | 5-8T | |
| 15 | Equipment parts includes:5T decoiler, roll forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter. | ||
2.Components
Components of line:
NO | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | PLC Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Post cut | set | 1 |
6 | Stackinig | set | 1 |
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
3.Sectional drawing
specialized manufacturer of roll forming machine,any requests just mail me.
Technical specification of every parts
1).decoiler: Optional
<1>. Manual un-coiler
processing

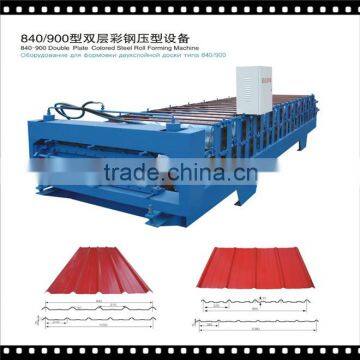

real photo of machine:
| Production Description | |
|
Equipment picture:
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
