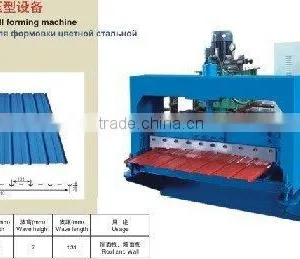

Roof and Wall Roll Forming Machine
US$ 7,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
jinchengxin
Model Number:
JCX-JCH61-381-760
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Roof and Wall Forming MachineUS$ 5,500 - 18,000MOQ: 1 Set -
Roof and Wall Steel Roll Forming MachineUS$ 5,000 - 18,000MOQ: 1 Set
-
Double Layer Roll Forming MachineUS$ 8,000 - 14,000MOQ: 1 Set
-
Double Layer Roll Forming MachineUS$ 8,000 - 14,000MOQ: 1 Set
-
312 Ridge Cap Roll Forming MachineUS$ 10,000 - 20,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
jinchengxin
Model Number
JCX-JCH61-381-760
Specifications
roof and wall roll forming machine:1.favorable price;
2. easy to operate ;
3.hight quality;
4.long service time.
roof and wall roll forming machine:
The device uses a high level of automation software, production information management; the entire unit automatic control system uses highly integrated network, the automatic system performance, superior; the color-coated steel tile equipment, also has the operation, maintenance, maintenance and mechanical commissioning, Die replacement easy and so on.
Main technical parameters:
Cover width |
Coil width |
Wave height |
Wave length |
usage |
760(mm) |
1000(mm) |
61(mm) |
380mm) |
Jiont-hiden roof |
1. Passive leak: manual up tight, passive leak
2. Leak rack load: 6T
3. Rack: Using 400H steel welding
4. Forming Machine-driven feeding frame Type: Roller-type
5. Forming Machine Type: Bearing-watt box chain drive
6. Shaft Diameter: 68 mm
7. Chain: 1.-Inch single-row
8. Forming Motor Power: 5.5KW cycloid reducer
9. Forming Machine speed: 10m/min
10. Forming Machine Road Number: 22
11. Roll Material: high quality 45 # steel Duan playing pieces
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 ° -60 °
17. Rolling thickness :0.5-0 .8 mm
18. Material Expand Width: 1000mm
19. Length Accuracy: ± 2mm
20. The computer use of PLC, Japan's Panasonic
21. Computer Operator,
22.Use a text screen display of the electronic control system, easy operation, easy to use.
Welcome to our factory to see more equipment, we will be warm and thoughtful quality products and services await your presence!
