Help CenterDouble Layer Roll Forming Machine
Related Products
Specifications
Our double roll forming machine:reasonable,
ntinuous innovation and progres
3.best price and service

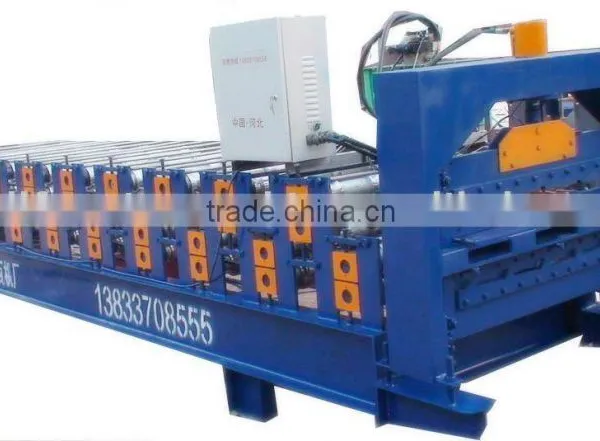

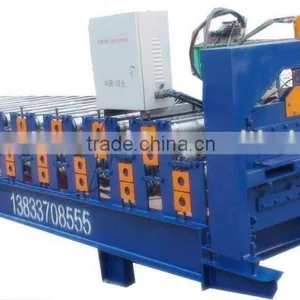

Double roll forming machine:
Main technical parameters:
1. Passive leak: manual up tight, passive leak
2. Leak rack load: 4T
3. Rack: Using 250H steel welding
4. Forming Machine-driven feeding frame Type: Side roller
5. Forming Machine Type: wall-type chain drive
6. Shaft Diameter: 68 mm
7. Chain: 0.6-inch single-row
8. Forming Motor Power: 3KW Speed Reducer
9. Forming Machine speed: 8-10m/min
10. Forming Machine Road Number:according to customer's requirment
11. Roll Material: high quality forged steel
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 --60 °
17. Rolling thickness :0.3-0 .8 mm
18. Material Expand Width: 1000mm or 1200
19. Length Length Accuracy: ± 2mm
20. The computer use of PLC, TaiwanDelta, computer operation.
