Automatic Curving Machine With Good Quality Best Price
- NEW PORT TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 90degree / 4min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Power(W) | 3kw | |
| Voltage | 380V 50HZ 3phase 1 phase voltage 220V | Dimension(L*W*H) | 1500*1300*1000mm | |
| Weight | 3t | Certification | TUV | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Welcome to review our roll forming machineBeautiful appearancea
reasonable price
complete service
high efficency
welcome to view automatic curving machine with good quality best price

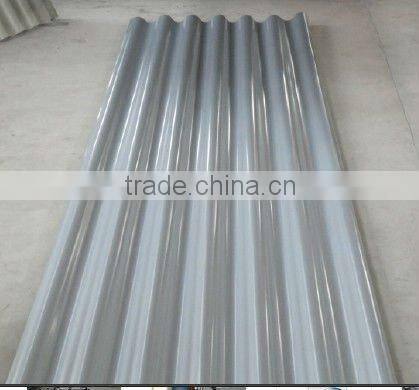

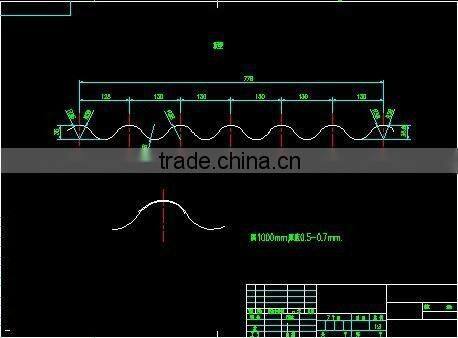

A. Profile
| Wave height | 36mm |
| Wave length | 130mm |
| Cover width | 778mm |
| Coil width | 1000mm |
| Thickness of material plate | 0.3-0.8mm |
B. Roll Forming Machine parameter
No. | main parameter of Roll Forming Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1000mm |
3 | Rollers | 20rows |
4 | Dimensions | 10.5*1.55*1.51m |
5 | Power | 5.5+4kw |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 20-30m/min |
8 | Diameter of the roller | Φ70mm |
9 | Weight | About 6T |
10 | Voltage | 380V 50Hz 3phases |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | Panasonnic PLC control |
C. Flow chart
D. Technical specification of every parts
1).decoiler: Optional
<1>. Manual un-coiler
<2>. Compound decoiler

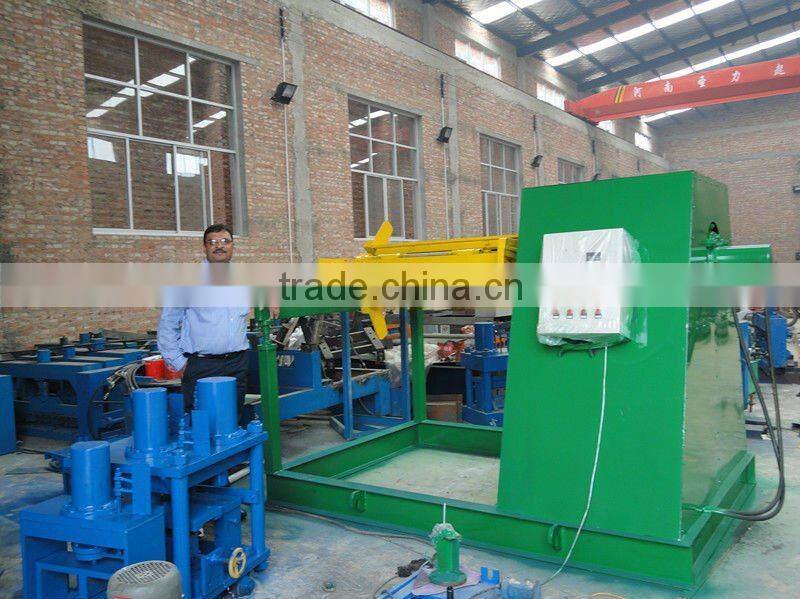

<3>. Hydraulic decoiler
2) Feeding device:

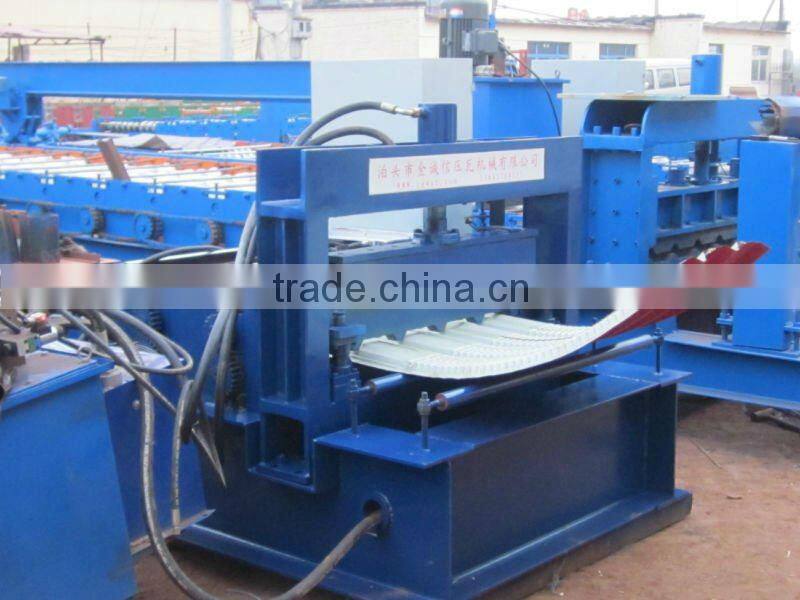

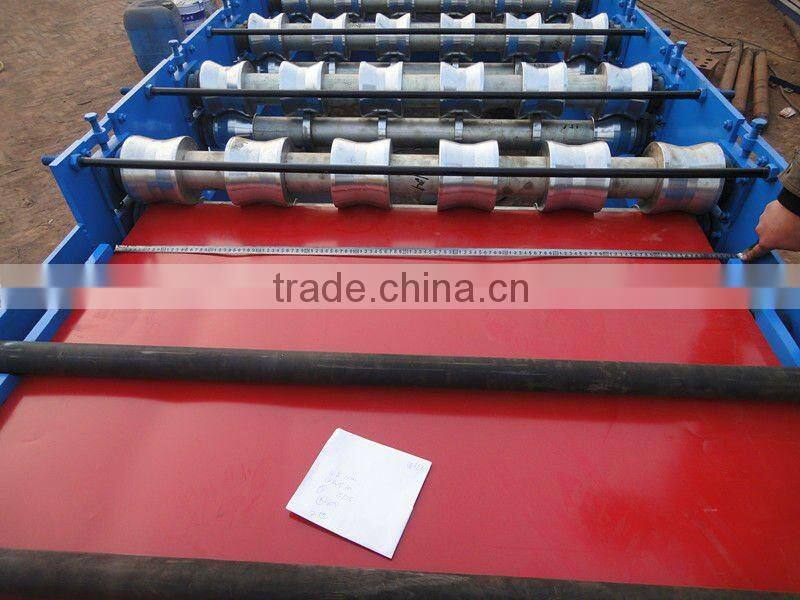

3)photo of machine

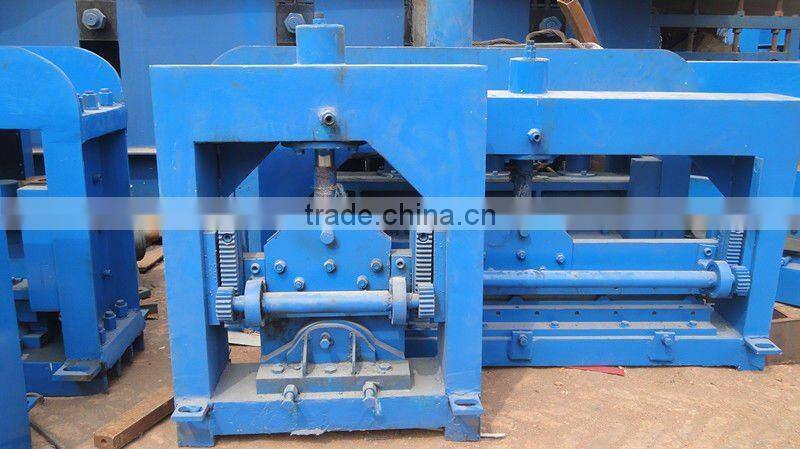

4)Hydraulic Cutting

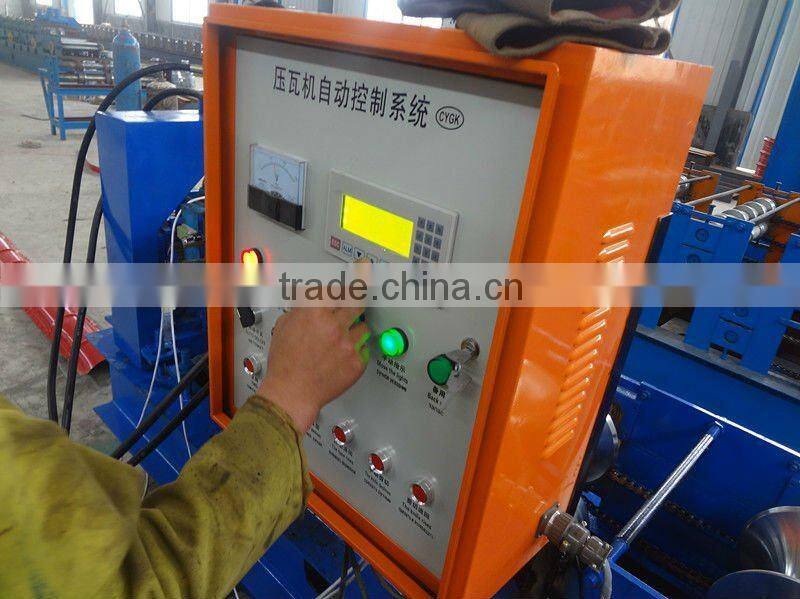

5) Electric control system:
6.Hydraulic system

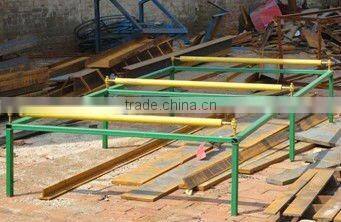

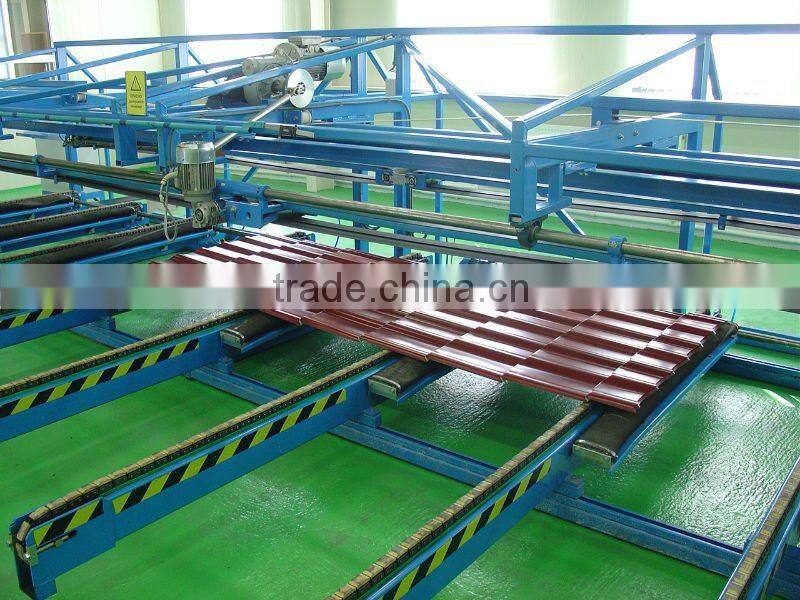

7.Stacker : Optional
(1). manual
(2) Auto
